2001 Suzuki TL1000S OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 2001 Suzuki TL1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

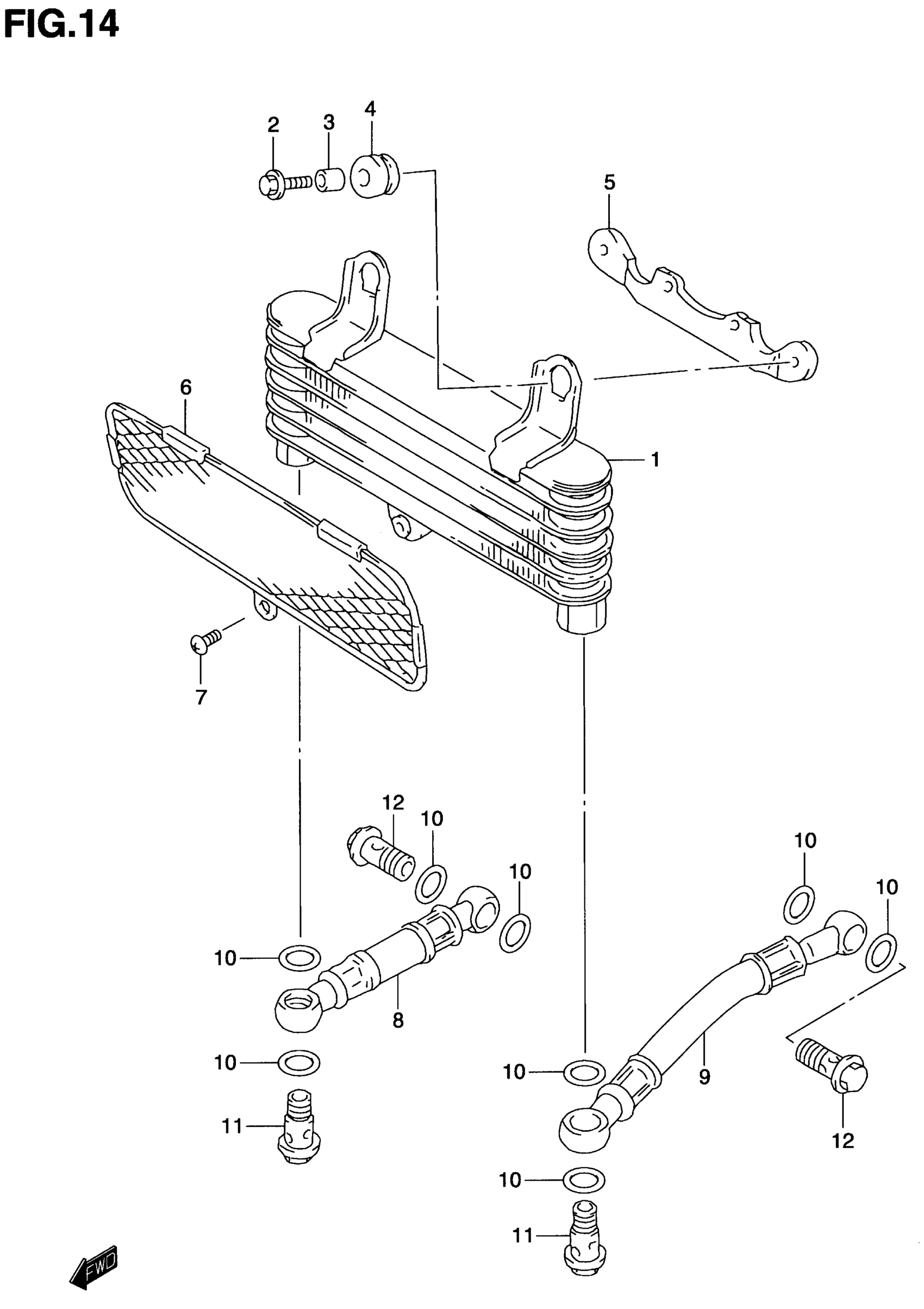

2001 Suzuki TL1000S OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL This part replaces 16600-02F00.

16600-06G00

1
Out of stock

2

BOLT (6X20) | MODEL V/W/X This part replaces 09116-06143.

09116-06115

2
Out of stock

2

BOLT | MODEL Y/K1

09116-06115

2
Out of stock

3

SPACER (6.5X10X10)

09180-06310

2
Out of stock

4

CUSHION

09320-10015

2
Out of stock

5

BRACKET, OIL COOLER

16620-02F00

1
Out of stock

6

GUARD, OIL COOLER

16650-02F00

1
Out of stock

7

SCREW This part replaces 02142-05103.

02142-0510B

1
Out of stock

8

HOSE, OIL COOLER,RH

16460-02F00

1
Out of stock

9

HOSE,OIL COOLER This part replaces 16470-02F00.

16470-06G01

1
Out of stock

10

GASKET

09168-14011

8
Out of stock

11

BOLT, UNION

09360-12006

2
Out of stock

12

BOLT

09360-14012

2
Out of stock
