2003 Suzuki TL1000R Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2003 Suzuki TL1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

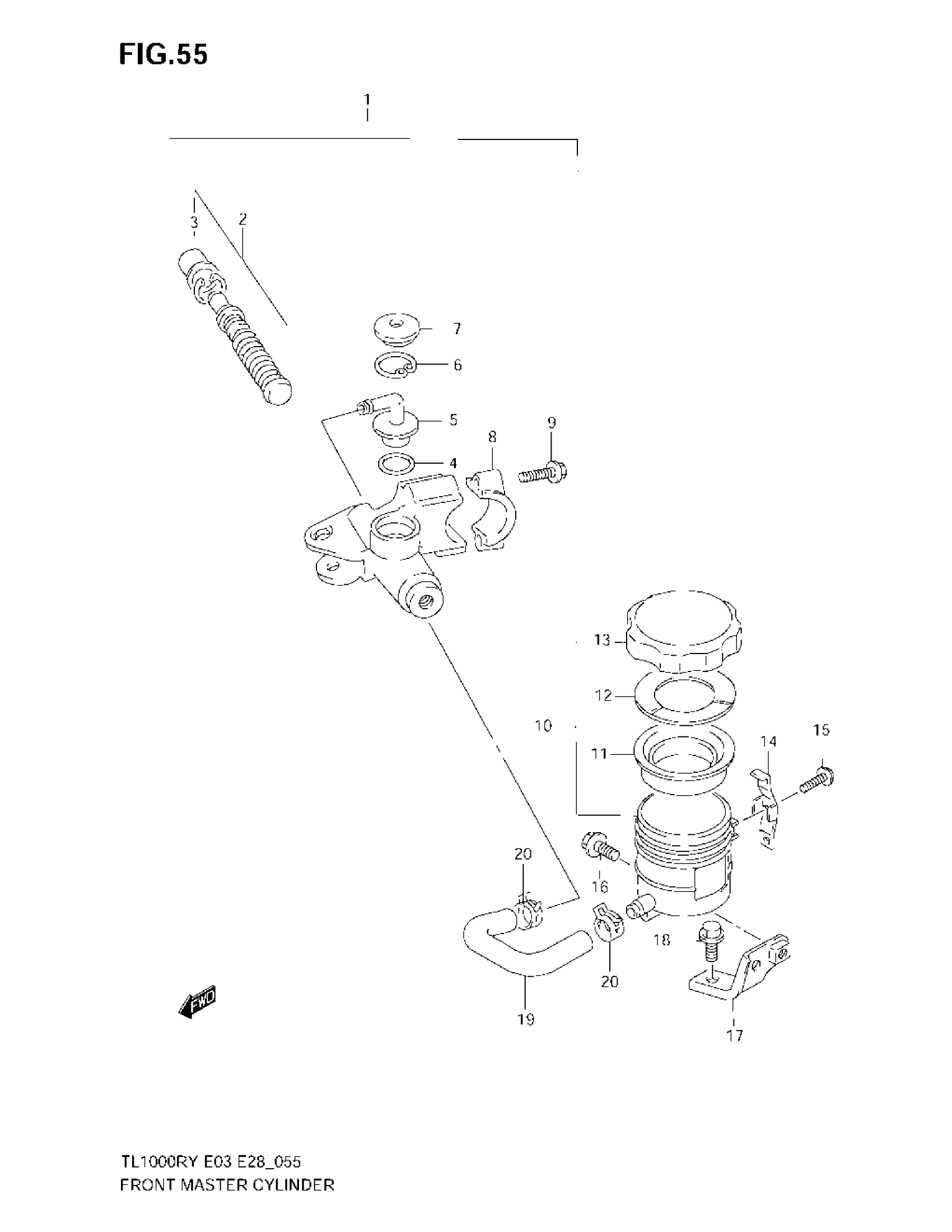

2003 Suzuki TL1000R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-32C01

1
Out of stock

2

PISTON/CUP SET

59600-45860

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

O RING

69686-34200

1
Out of stock

5

CONNECTOR

59672-17C00

1
Out of stock

6

CIRCLIP

69674-00B20

1
Out of stock

7

COVER, DUST

59673-17C00

1
Out of stock

8

.HOLDER

59671-36500

1
Out of stock

9

BOLT HOLDER SET

59675-19C00

2
Out of stock

10

TANK ASSY, RESERVOIR | Includes Item(s) 11 - 13

59740-07D00

1
Out of stock

11

DIAPHRAGM

59667-18441

1
Out of stock

12

PLATE

59668-18441

1
Out of stock

13

CAP

59669-07D00

1
Out of stock

14

PLATE, TANK CAP

59743-17C00

1
Out of stock

15

SCREW This part replaces 02142-04103.

02142-0410A

1
Out of stock

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

17

BRACKET,RES TAN This part replaces 59750-33E01.

59750-33E0V

1
Out of stock

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

19

HOSE, RESERVOIR TANK

59731-17E00

1
Out of stock

20

CLAMP, HOSE

59735-17C00

2
Out of stock
