Description

Price

CALIPER ASSY, FRONT RH This part replaces 59100-33E00.

59100-33E30-999

Unavailable

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 10 This part replaces 59300-33E00.

59300-33E30-999

Unavailable

1

PISTON SET This part replaces 59300-33870.

59300-33871

$157.13

2

SEAL SET, PISTON This part replaces 59300-33880.

59300-33881

$49.54

3

PAD SET

59300-33890

$78.55

4

PIN

69141-45000

$4.86

5

.CLIP, PAD PIN

69142-45000

$3.97

6

BOLT

59145-33E00

$10.58

7

COVER

59151-46E00

$33.92

8

.SCREW

59153-22D00

$7.12

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

BOLT (10X30)

09103-10296

$6.07

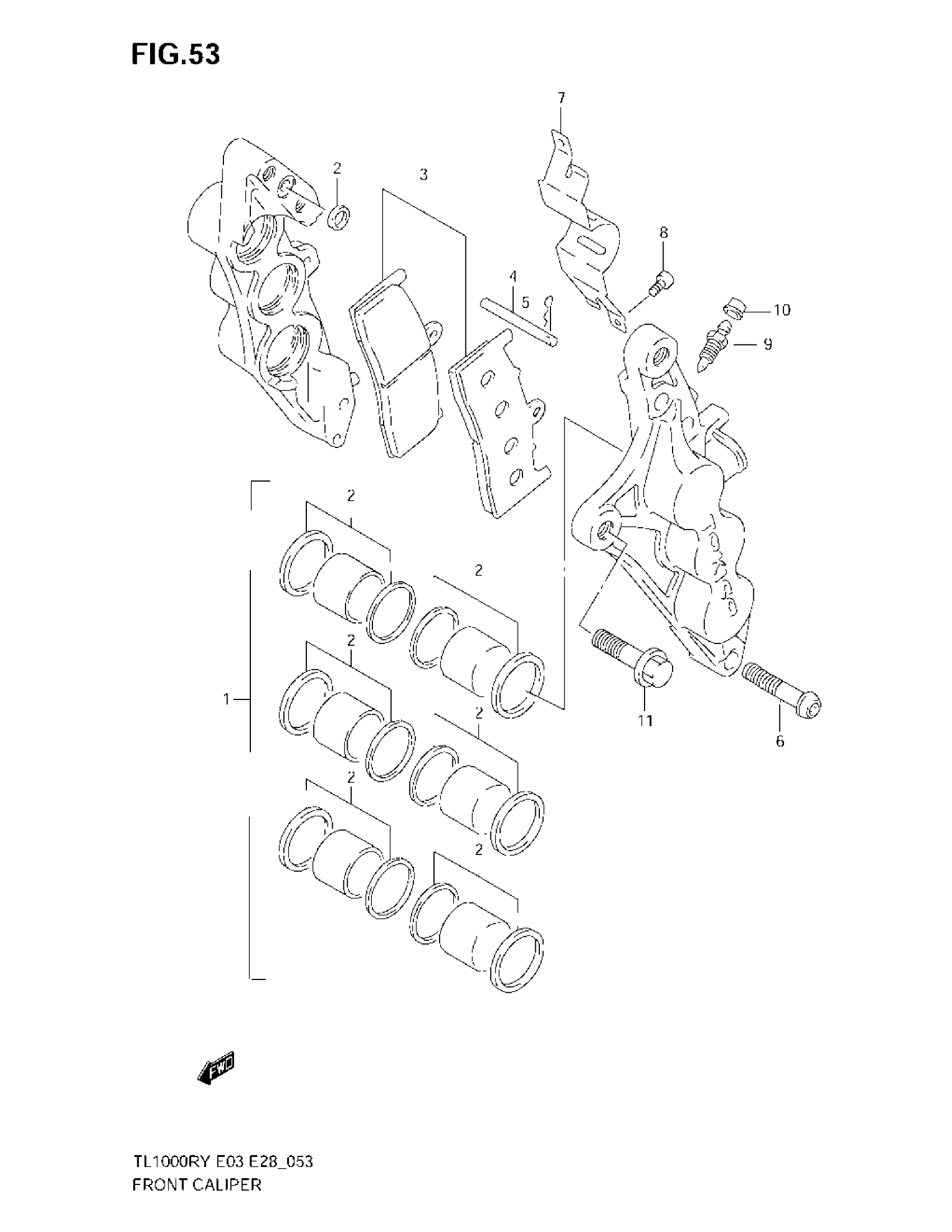

Suzuki TL1000R (2003) FRONT CALIPERS Diagram
