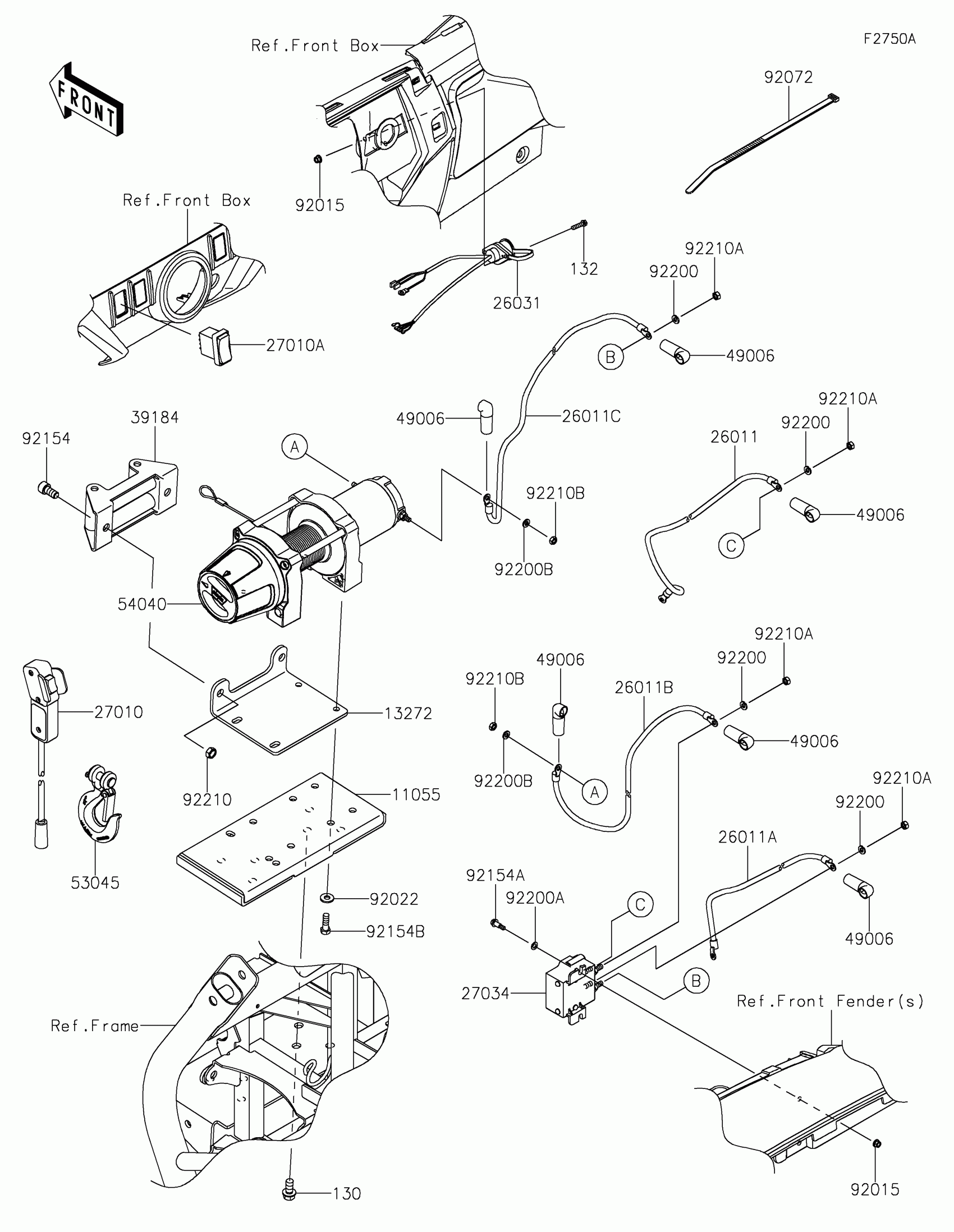

Kawasaki Teryx4 S Special Edition Other(Winch) Diagram

Description

Price

11055

BRACKET,WINCH BASE

11055-0927

$68.57

13272

PLATE,FAIRLEAD MOUNTING

13272-3839

$111.01

26011

WIRE-LEAD,RED

26011-1951

$31.21

26011A

WIRE-LEAD,BLACK

26011-1952

$31.25

26011B

WIRE-LEAD,YELLOW

26011-1953

$22.05

26011C

WIRE-LEAD,BLUE

26011-1954

$21.49

26031

HARNESS,SWITCH

26031-3914

$64.24

27010

SWITCH,REMOTE

27010-0820

$129.74

27010A

SWITCH,CARLING

27010-0821

$75.35

27034

RELAY

27034-0008

$120.40

39184

BRACKET-ASSY,FAIRLEAD

39184-0746

$34.42

49006

BOOT

49006-0601

$2.15

53045

HOOK-ASSY

53045-0028

$23.05

54040

WINCH,VRX35

54040-0011

$591.00

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$3.29

92022

WASHER,8.2X19X2

92022-1533

$4.85

92072

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT,SOCKET,10X20

92154-1877

$3.12

92154A

BOLT,SHOULDER,5X18

92154-2562

$2.15

92154B

BOLT,8X25

92154-7053

$0.86

92200

WASHER,6 LOCK

92200-1776

$0.97

92200A

WASHER

92200-1920

$1.19

92200B

WASHER,6.4X12X1.8

92200-2358

$0.54

92210

NUT,LOCK,M10

92210-1432

$1.34

92210A

NUT,M6X1.00

92210-1434

$1.90

92210B

NUT,6MM

92210-1792

$2.41

130

BOLT-FLANGED,10X20

130BB1020

$4.50

132

BOLT-FLANGED-SMALL,5X20

132BA0520

$4.42
