2025 Kawasaki Teryx4 S Special Edition Guards/cab Frame Diagram

← All diagrams

Find the part on the Guards/cab Frame diagram for your 2025 Kawasaki Teryx4 S Special Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

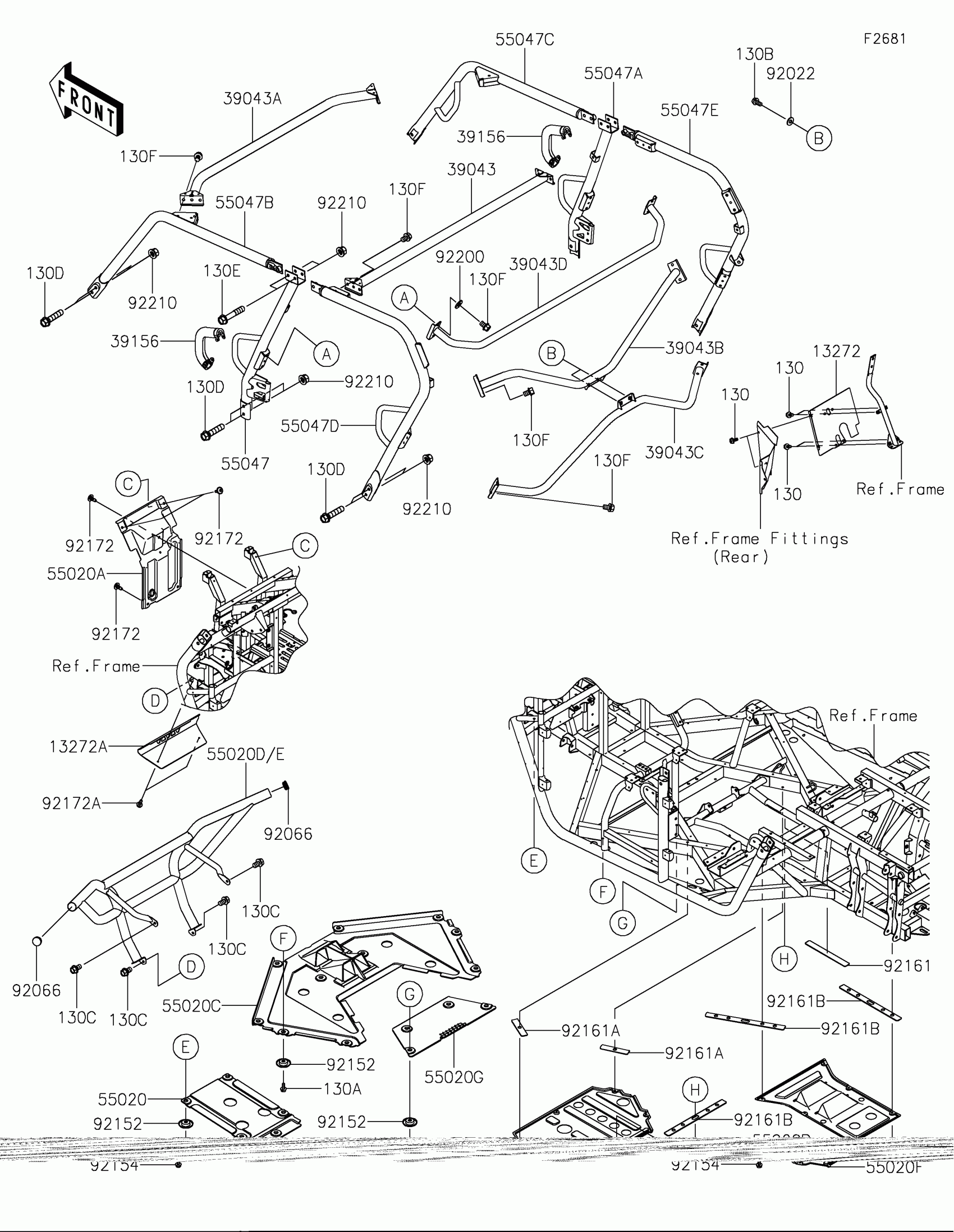

2025 Kawasaki Teryx4 S Special Edition Guards/cab Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2064

1

$12.54

In stock

13272A

PLATE,FRONT,T.BLACK

13272-2232-388

1

$34.98

In stock

39043

1

$112.49

In stock

39043A

1

$109.95

In stock

39043B

1

$109.95

In stock

39043C

1

$109.95

In stock

39043D

1

$112.49

In stock

39156

PAD,SHOULDER

39156-0939

1

$18.55

In stock

55020

GUARD,SKID,FR

55020-0723

1

$32.07

In stock

55020A

GUARD,FR FRAME

55020-0741

1

$30.86

In stock

55020B

GUARD,SKID,RR

55020-0812

1

$60.86

In stock

55020C

1

$134.19

In stock

55020D

GUARD,FRONT,T.BLACK

55020-1859-388

1
Out of stock

55020F

GUARD,SKID,CNT

55020-1884

1
Out of stock

55020G

GUARD

55020-1951

1
Out of stock

55047

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0357-388

1
Out of stock

55047A

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0358-388

1
Out of stock

55047B

BAR-COMP,A-PILLAR,LH,T.BLACK

55047-0368-388

1
Out of stock

55047C

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0369-388

1
Out of stock

55047D

BAR-COMP,C-PILLAR,LH,T.BLACK

55047-0370-388

1
Out of stock

55047E

BAR-COMP,C-PILLAR,RH,T.BLACK

55047-0371-388

1
Out of stock

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

92066

PLUG,42MM

92066-0830

1
Out of stock

92152

COLLAR

92152-0784

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0887

1
Out of stock

92161

DAMPER,32X270X3

92161-1597

1

$4.64

In stock

92161A

DAMPER,32X140X3

92161-2428

1
Out of stock

92161B

DAMPER,32X390X3

92161-2429

1
Out of stock

92172

SCREW,6X16

92172-0826

1
Out of stock

92172A

SCREW,TAPPING,6X16

92172-1388

1
Out of stock

92200

WASHER,10.2X23X2.5

92200-0211

1
Out of stock

92210

NUT,12MM

92210-0603

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130B

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

130C

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

130D

BOLT-FLANGED,12X55

130BA1255

1

$7.69

In stock

130E

BOLT-FLANGED,12X65

130BA1265

1
Out of stock

130F

BOLT-FLANGED,10X14

130CA1014

1

$2.68

In stock
