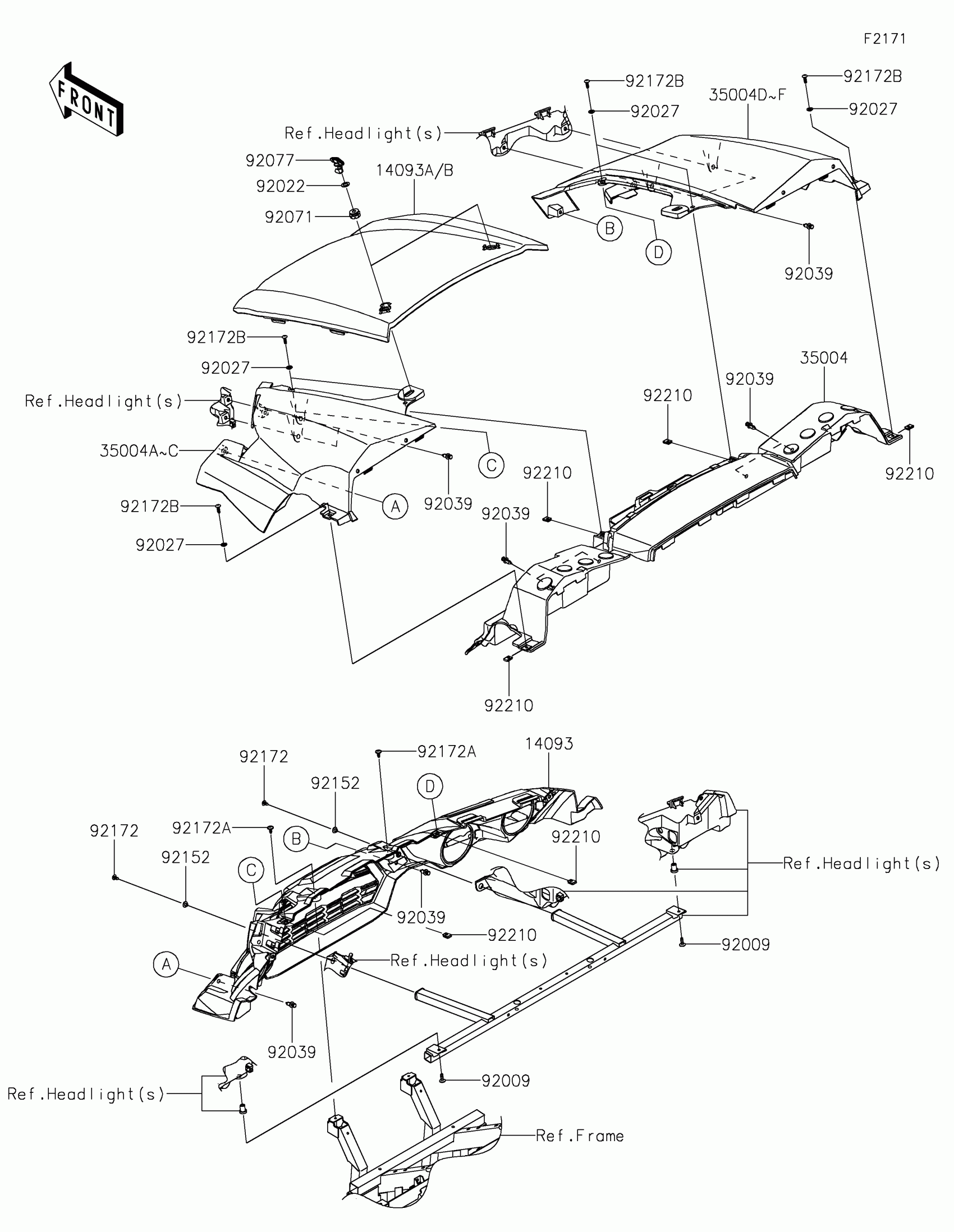

Kawasaki Teryx4™ S LE Front Fender(s) Diagram

Description

Price

14093

COVER,FR GRILL

14093-0202

$207.31

14093B

COVER,HOOD,EBONY

14093-0211-H8

$183.36

35004

FENDER-FRONT,RR

35004-0345

$59.76

35004B

FENDER-FRONT,LH,I.GRAY

35004-0346-72B

$192.89

35004C

FENDER-FRONT,LH,M.M.T.BLUE

35004-0346-72T

$192.89

35004E

FENDER-FRONT,RH,I.GRAY

35004-0347-72B

$192.89

35004F

FENDER-FRONT,RH,M.M.T.BLUE

35004-0347-72T

$192.89

92009

SCREW,6X20

92009-1289

$3.29

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92027

COLLAR

92027-4020

$3.54

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0746

$0.92

92077

KNOB

92077-0033

$2.11

92152

COLLAR,6.3X8.3X7.2

92152-1865

$0.95

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92172A

SCREW,6X16

92172-0826

$1.62

92172B

SCREW,TAPPING,6X20

92172-0883

$1.88

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66
