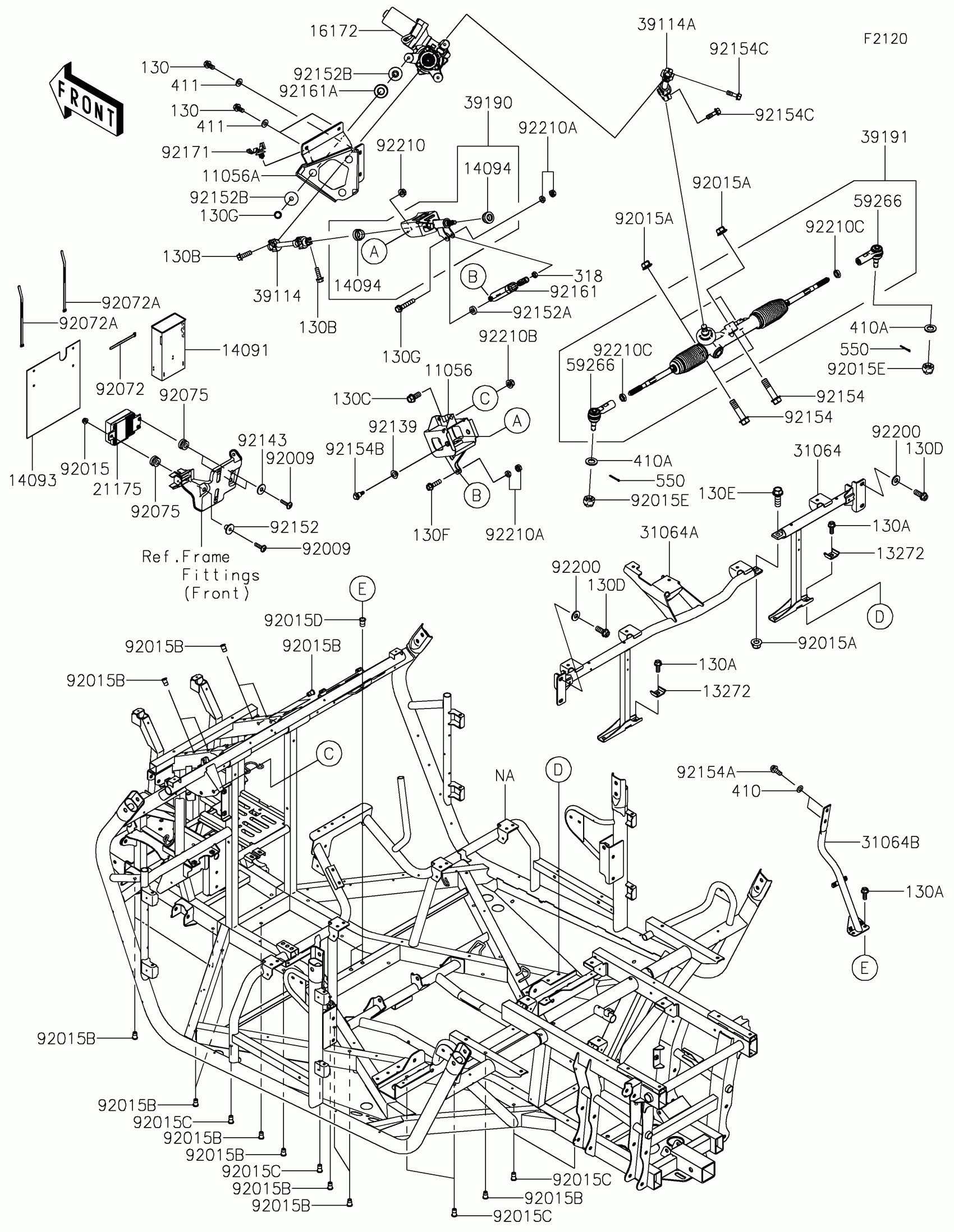

Kawasaki Teryx4™ S LE Frame Diagram

#

Description
Price

11056

BRACKET,HOLDER

11056-7157

$146.27

11056A

BRACKET

11056-7781

$98.58

13272

PLATE

13272-1336

$1.03

14091

COVER,ECU

14091-7560

$47.25

14093

COVER

14093-0397

$8.80

16172

ACTUATOR,EPS

16172-0568

$1,859.76

21175

CONTROL UNIT-ELECTRONIC

21175-0809

$881.07

31064

PIPE-COMP,SUB FRAME,SEAT,RH

31064-0658

$65.86

31064A

PIPE-COMP,SUB FRAME,SEAT,LH

31064-0667

$141.14

31064B

PIPE-COMP

31064-0676

$34.89

39114

SHAFT-COMP-STRG

39114-0020

$95.27

39114A

SHAFT-COMP-STRG

39114-0044

$82.60

39190

SHAFT-ASSY-STEERING

39190-0006

$206.86

39191

GEAR-ASSY-STEERING

39191-0037

$902.87

59266

JOINT-BALL

59266-0771

$88.38

92009

SCREW,6X25

92009-1465

$2.99

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015B

NUT,POP,6MM,L=15

92015-1791

$3.57

92015C

NUT,POP,6MM,L=16.5

92015-1792

$3.57

92015D

NUT,POP,8MM,L=16.5

92015-1793

$3.81

92015E

NUT,CASTLE,14MM

92015-1841

$6.39

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=188

92072-1239

$1.30

92075

DAMPER,RUBBER

92075-1123

$3.81

92139

BUSHING

92139-0230

$4.10

92143

COLLAR,L=6.5

92143-1025

$4.67

92152

COLLAR,6.5X10X13.3

92152-0957

$9.42

92152A

COLLAR,8.2X18X5

92152-1848

$4.98

92152B

COLLAR,8.5X30X10.6

92152-2149

$4.44

92154

BOLT,FLANGED,12X50

92154-1008

$5.99

92154A

BOLT,FLANGED,8X20

92154-1130

$2.95

92154B

BOLT,6X21.5

92154-1320

$2.05

92154C

BOLT

92154-4224

$3.04

92161

DAMPER,GAS SPRING

92161-1825

$45.35

92161A

DAMPER,ACTUATOR

92161-7517

$2.66

92171

CLAMP

92171-0453

$3.12

92200

WASHER,10.2X23X2.5

92200-0211

$2.68

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04

92210A

NUT,HARD LOCK,8MM

92210-0934

$4.34

92210B

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

92210C

NUT

92210-1933

$15.42

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,8X20

130BA0820

$3.04

130B

BOLT-FLANGED,8X25

130BA0825

$2.01

130C

BOLT-FLANGED,10X22

130BA1022

$1.66

130D

BOLT-FLANGED,10X25

130BA1025

$2.71

130E

BOLT-FLANGED,12X35

130BA1235

$3.19

130F

BOLT-FLANGED,8X30

130CA0830

$0.86

130G

BOLT-FLANGED,8X45

130CA0845

$0.95

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

410A

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

411

WASHER-PLAIN,8MM

411AA0800

$0.81

550

PIN-COTTER,3.0X25

550AA3025

$0.59
