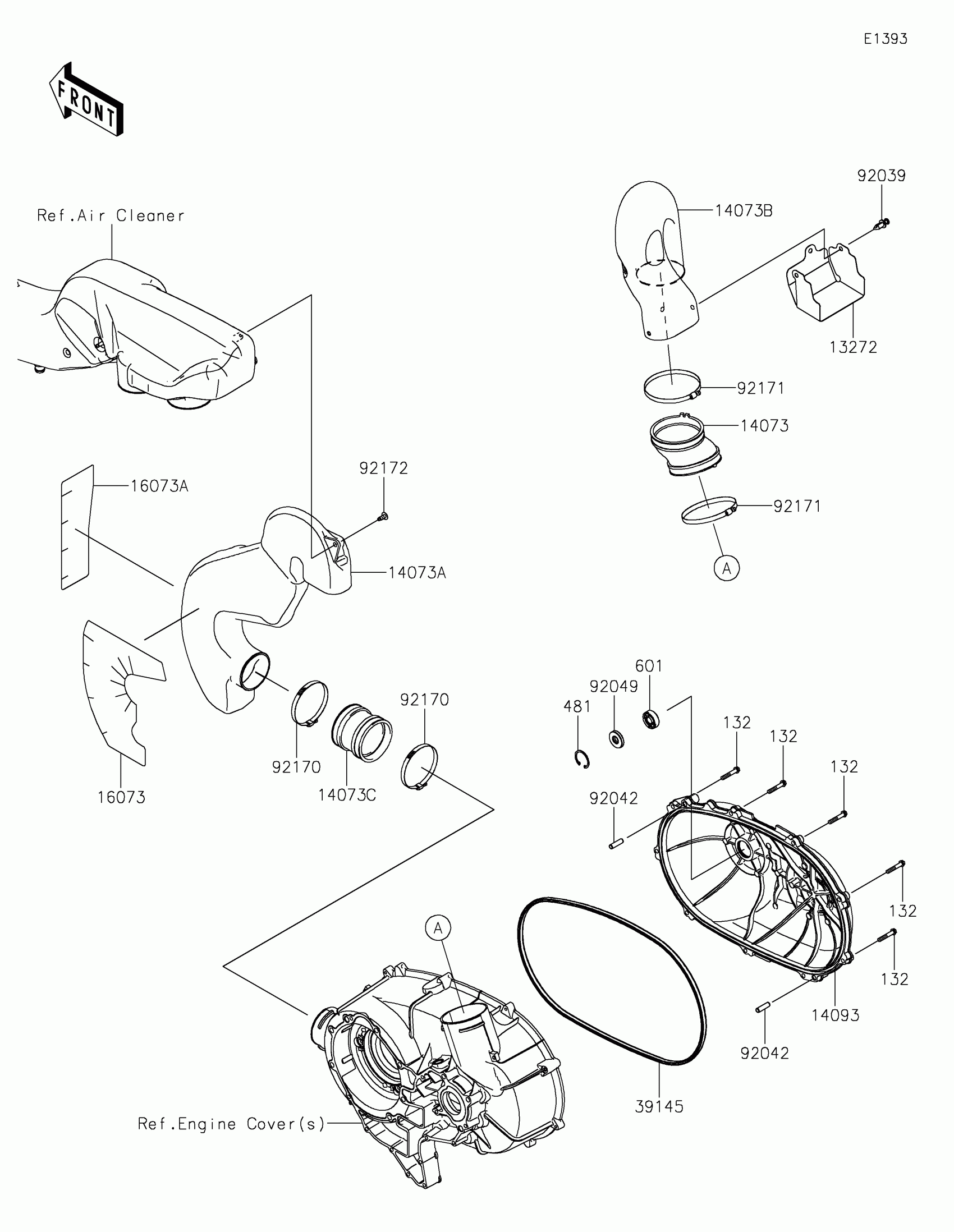

Kawasaki Teryx4™ S LE Converter Cover Diagram

Description

Price

13272

PLATE

13272-2060

$13.88

14073

DUCT,JOINT

14073-0307

$9.88

14073A

DUCT,INTAKE

14073-0760

$42.20

14073B

DUCT,EXHAUST

14073-0839

$25.19

14073C

DUCT,JOINT

14073-1805

Unavailable

14092

COVER,CVT

14092-0266

$154.97

16073

INSULATOR

16073-0843

$13.17

16073A

INSULATOR

16073-0844

$11.75

39145

TRIM-SEAL,CVT COVER

39145-0043

$27.07

92039

RIVET

92039-0776

$0.80

92042

PIN,DOWEL,8X28

92042-050

$3.85

92049

SEAL-OIL,12X32X5.8

92049-0167

$6.99

92170

CLAMP

92170-1763

$4.29

92171

CLAMP

92171-1383

$3.35

92172

SCREW

92172-0297

$1.25

132

BOLT-FLANGED-SMALL,6X35

132BA0635

$1.49

481

CIRCLIP-TYPE-C,32MM

481J3200

$1.82

601

BEARING-BALL

601A6201

$8.12
