2020 Kawasaki TERYX4™ Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2020 Kawasaki TERYX4™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

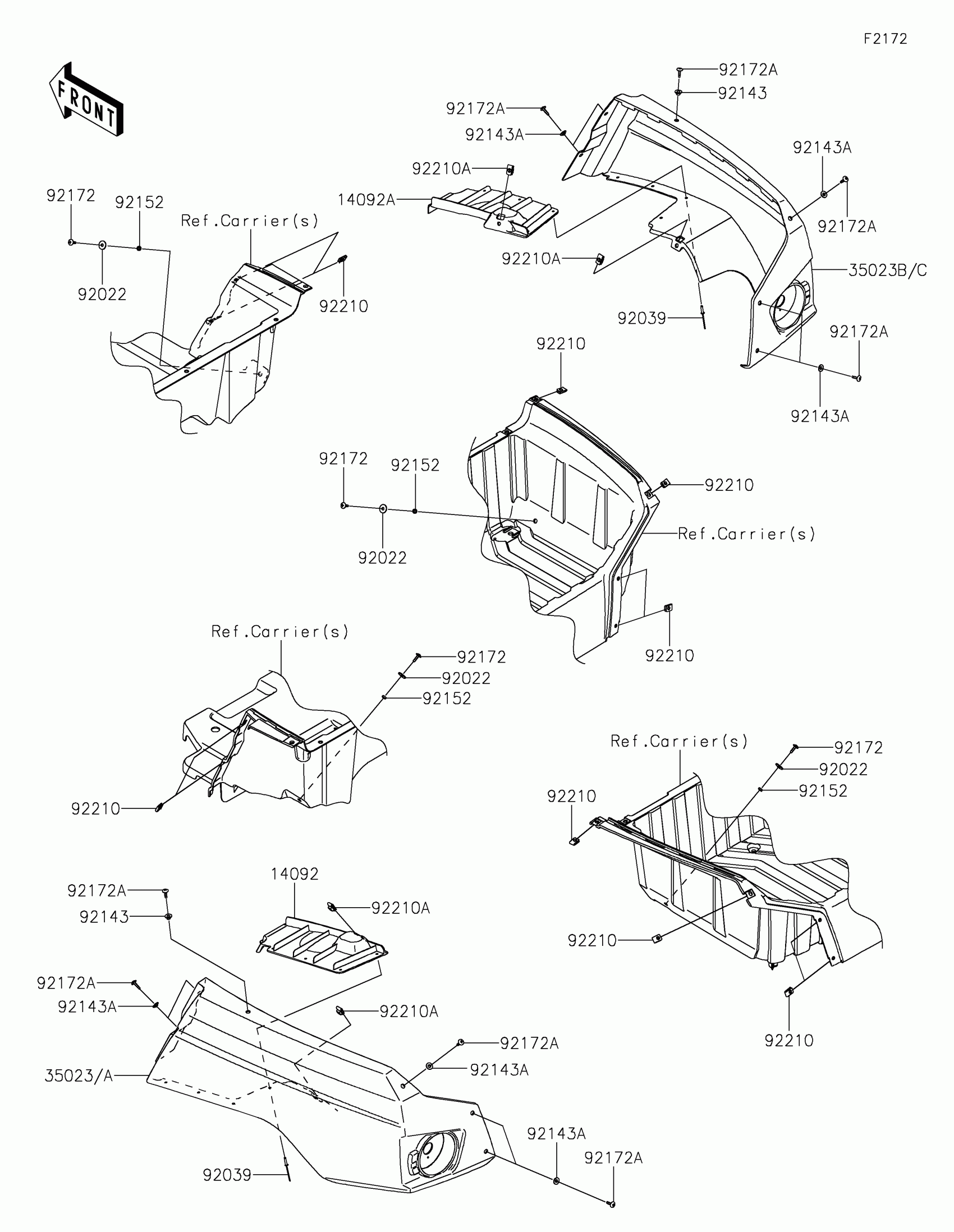

2020 Kawasaki TERYX4™ Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,INNER,LH

14092-0863

1

$31.37

In stock

14092A

COVER,INNER,RH

14092-0864

1

$31.37

In stock

35023

FENDER-REAR,LH,B.WHITE

35023-0307-266

1

$85.17

In stock

35023A

FENDER-REAR,LH,S.BLACK

35023-0307-839

1

$80.66

In stock

35023B

FENDER-REAR,RH,B.WHITE

35023-0308-266

1

$85.17

In stock

35023C

FENDER-REAR,RH,S.BLACK

35023-0308-839

1

$80.66

In stock

92022

1

$0.53

In stock

92039

RIVET,5X23.3

92039-0769

1

$1.58

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92143A

COLLAR

92143-1087

1

$3.11

In stock

92152

COLLAR,6.3X10X3

92152-1834

1
Out of stock

92172

SCREW,6X18

92172-0002

1

$2.29

In stock

92172A

SCREW,TAPPING,6X20

92172-0488

1

$2.44

In stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock

92210A

NUT,6MM

92210-0891

1
Out of stock
