2020 Kawasaki TERYX4™ Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2020 Kawasaki TERYX4™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

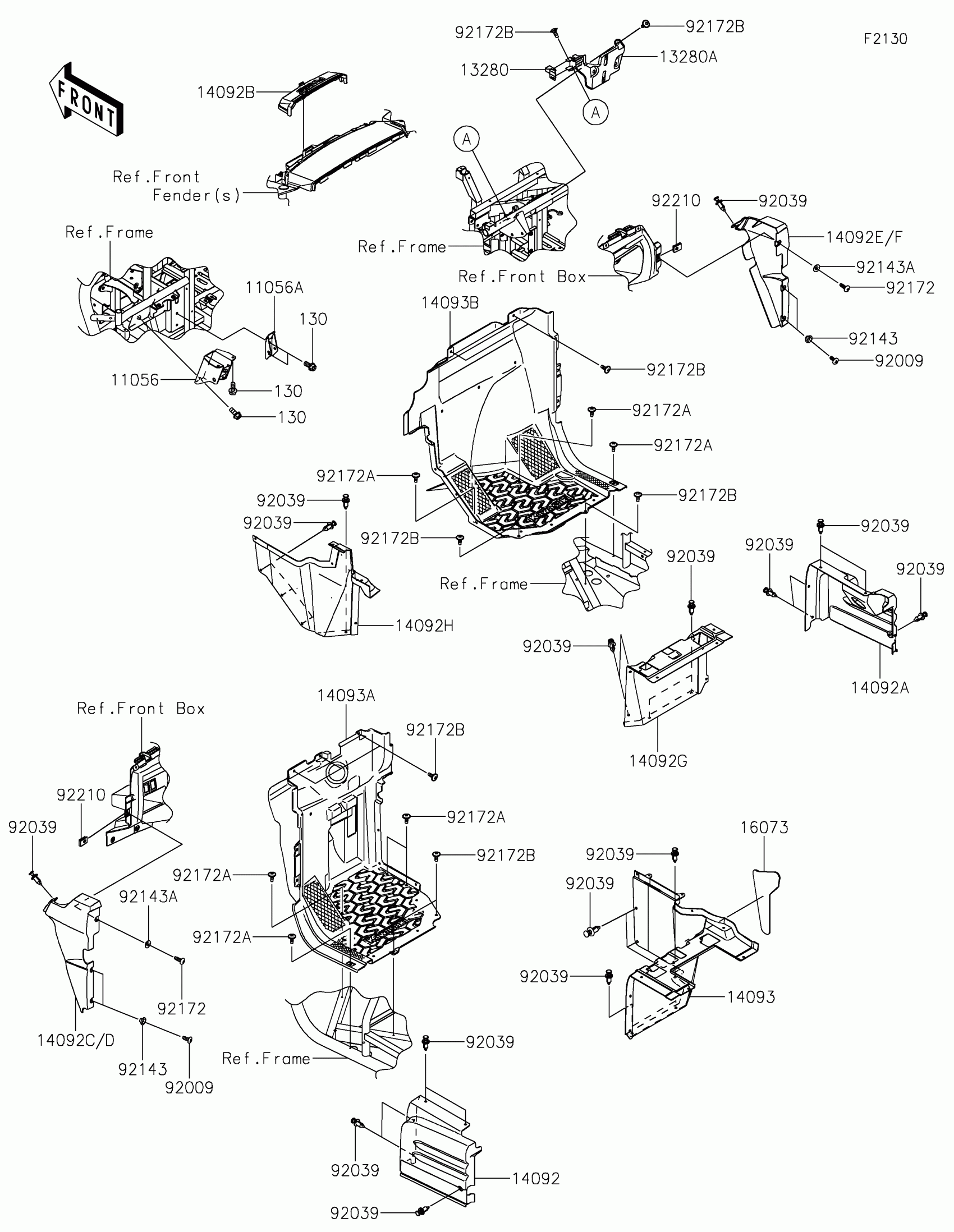

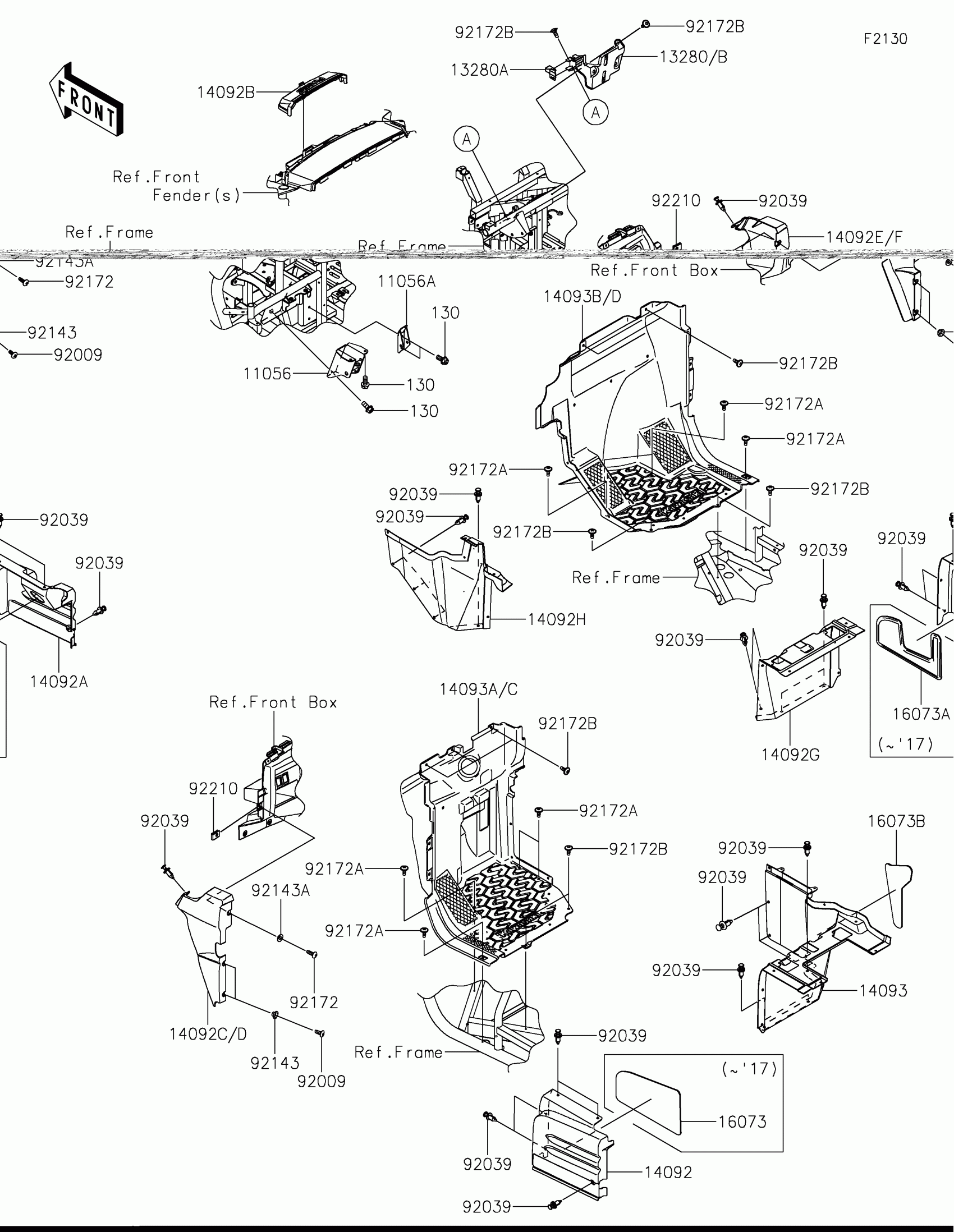

2020 Kawasaki TERYX4™ Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,BRAKE PEDAL

11056-1431

1
Out of stock

11056A

BRACKET,THROTTLE PEDAL

11056-4408

1
Out of stock

13280A

HOLDER

13280-0851

1

$1.58

In stock

13280B

HOLDER,ECU

13280-0868

1

$6.61

In stock

14092

COVER,SEAT SIDE,LH

14092-0720

1
Out of stock

14092A

COVER,SEAT SIDE,RH

14092-0721

1
Out of stock

14092B

COVER,FUSE BOX

14092-0724

1
Out of stock

14092C

COVER,SIDE GUARD,LH,B.WHITE

14092-0754-266

1
Out of stock

14092D

COVER,SIDE GUARD,LH,S.BLACK

14092-0754-839

1
Out of stock

14092E

COVER,SIDE GUARD,RH,B.WHITE

14092-0755-266

1
Out of stock

14092F

COVER,SIDE GUARD,RH,S.BLACK

14092-0755-839

1
Out of stock

14092G

COVER,FR SEAT,RH

14092-0757

1
Out of stock

14092H

COVER,FR SEAT,RH,CNT

14092-1083

1
Out of stock

14093

COVER,FR SEAT,LH

14093-0209

1
Out of stock

14093A

COVER,FR FLOOR,LH

14093-0550

1
Out of stock

14093B

COVER,FR FLOOR,RH

14093-0551

1
Out of stock

16073B

INSULATOR

16073-0847

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92143A

COLLAR

92143-1087

1
Out of stock

92172

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92172A

SCREW,6X16

92172-0711

1
Out of stock

92172B

SCREW,6X16

92172-0826

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock

130

BOLT-FLANGED,8X18

130BA0818

1

$2.10

In stock
