2020 Kawasaki TERYX4™ Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2020 Kawasaki TERYX4™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

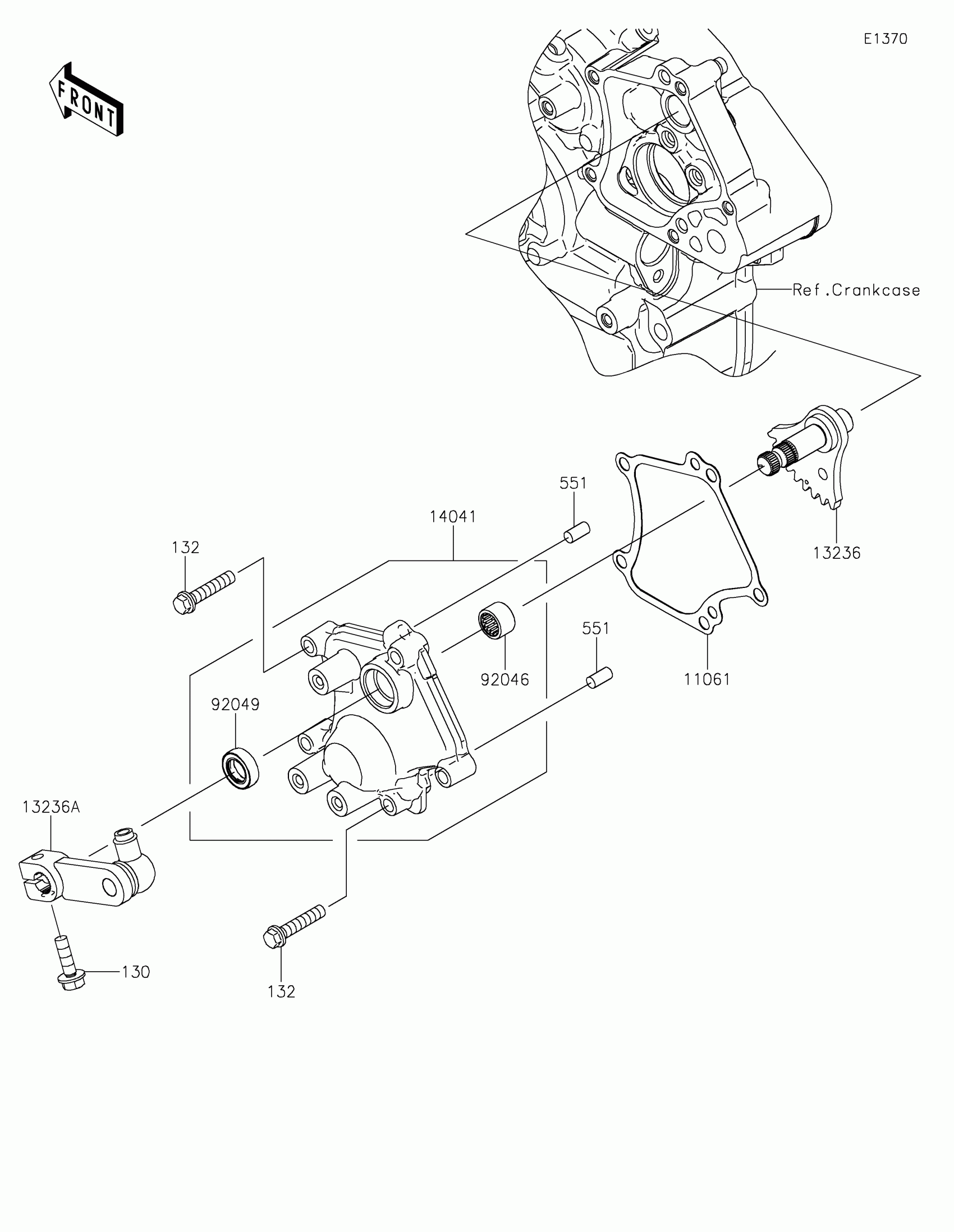

2020 Kawasaki TERYX4™ Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DRUM COVER

11061-0725

1

$7.22

In stock

13236

LEVER-COMP,CHANGE

13236-0707

1

$43.85

In stock

13236A

1

$46.03

In stock

14041

COVER-COMP,CHANGE

14041-0555

1

$55.92

In stock

92046

1

$12.37

In stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

130

BOLT-FLANGED,6X20

130CA0620

1

$1.41

In stock

132

1

$2.17

In stock

551

PIN-DOWEL,6X12

551A0612

1

$0.90

In stock
← Gear Change Drum/shift Fork Transmission →
