2020 Kawasaki TERYX4™ Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2020 Kawasaki TERYX4™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

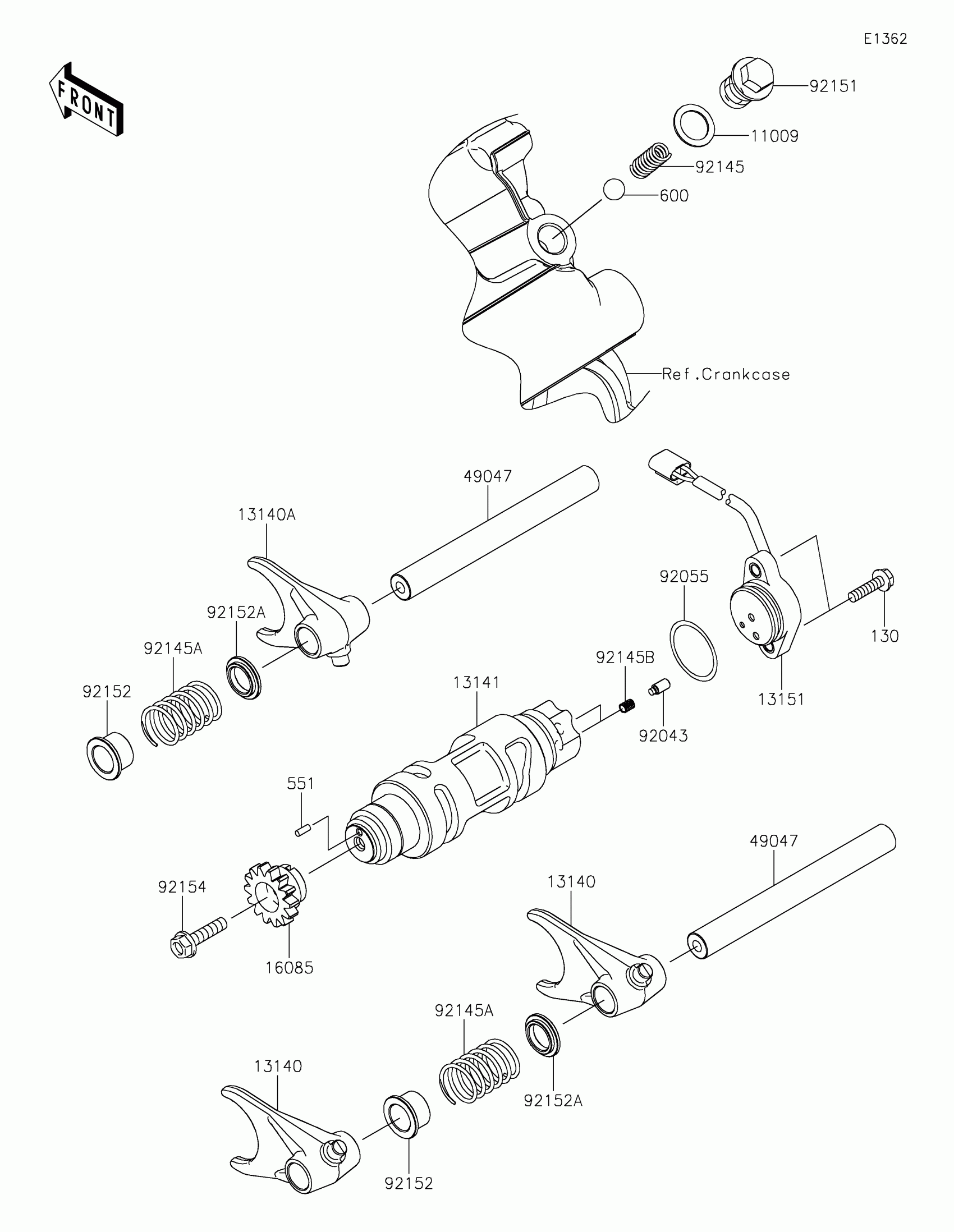

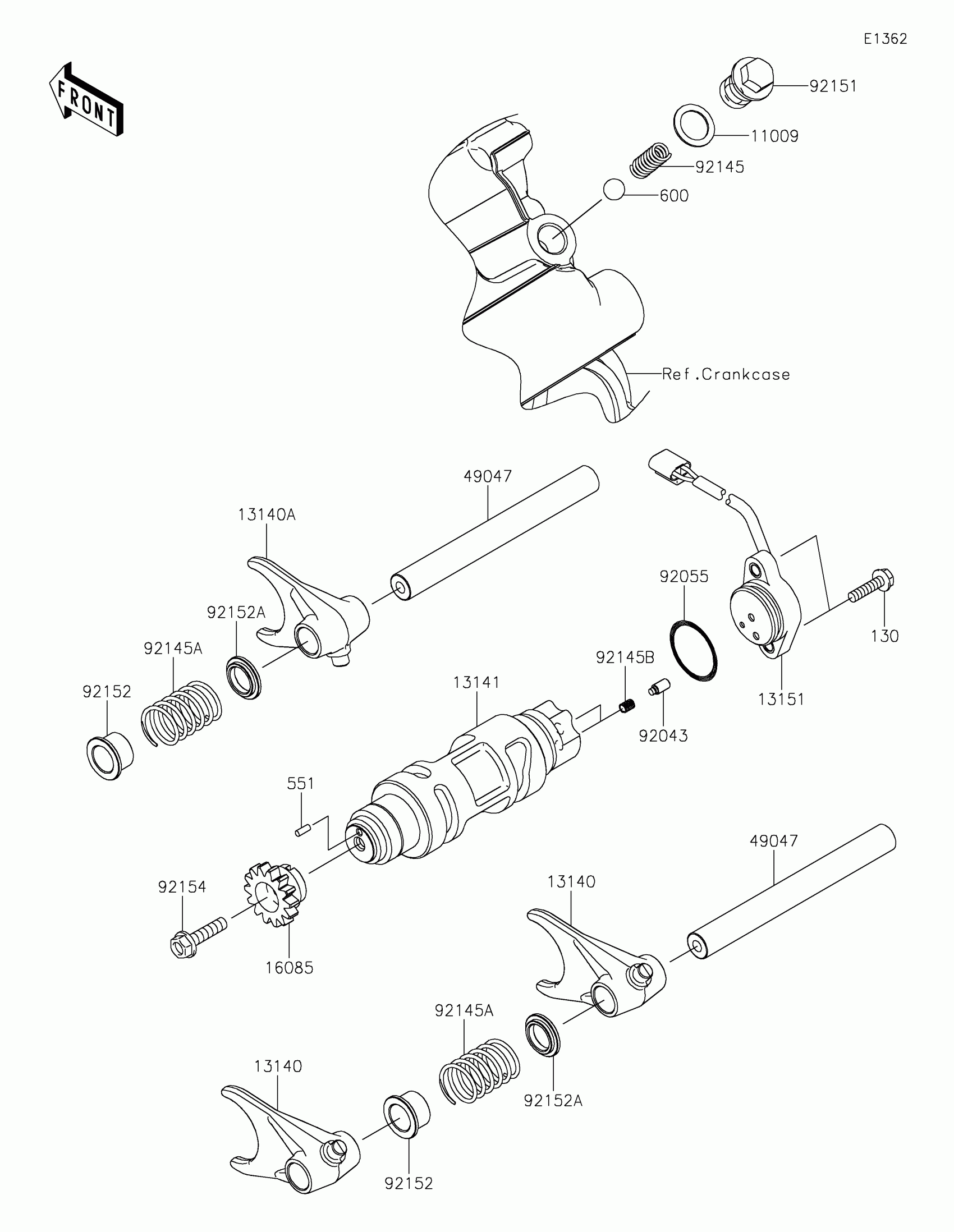

2020 Kawasaki TERYX4™ Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,15.5X22X1

11009-1008

1
Out of stock

13140

FORK-SHIFT,COUNTER

13140-0622

1
Out of stock

13140A

FORK-SHIFT,INPUT

13140-0623

1
Out of stock

13141

DRUM-CHANGE

13141-0576

1
Out of stock

13151

SWITCH-COMP,GEAR POSITION

13151-0561

1
Out of stock

16085

GEAR,14T

16085-0589

1
Out of stock

49047

ROD-SHIFT

49047-0619

1
Out of stock

92043

PIN

92043-1654

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92145

SPRING

92145-0828

1
Out of stock

92145A

SPRING

92145-0898

1
Out of stock

92145B

SPRING

92145-1414

1
Out of stock

92151

BOLT

92151-1451

1
Out of stock

92152

COLLAR,14X18X12.5

92152-2156

1
Out of stock

92152A

COLLAR,14X18X4

92152-2157

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-0707

1
Out of stock

130

BOLT-FLANGED,5X20

130BA0520

1

$0.92

In stock

551

PIN DOWEL 3X8

551A0308

1
Out of stock

600

BALL-STEEL,13/32"

600A1300

1
Out of stock
