2020 Kawasaki TERYX4™ Driven Converter/drive Belt Diagram

← All diagrams

Find the part on the Driven Converter/drive Belt diagram for your 2020 Kawasaki TERYX4™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

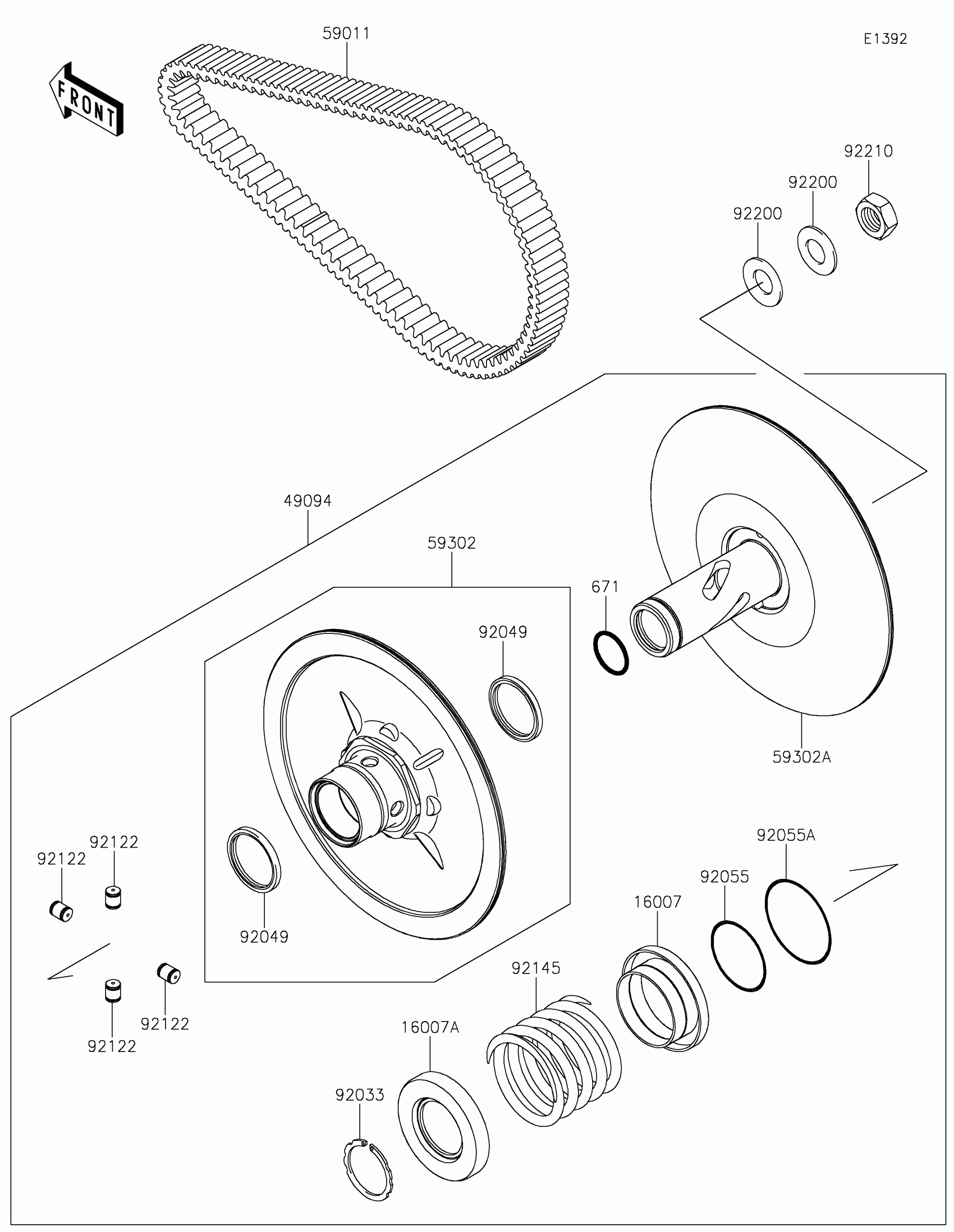

2020 Kawasaki TERYX4™ Driven Converter/drive Belt Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16007

SEAT-SPRING,MOVABLE

16007-0049

1
Out of stock

16007A

SEAT-SPRING,FIXED

16007-0050

1
Out of stock

49094

CONVERTER-ASSY-DRIVEN

49094-0093

1
Out of stock

59011

BELT,CVT

59011-0043

1
Out of stock

59302

SHEAVE-COMP,MOVABLE

59302-0089

1
Out of stock

59302A

SHEAVE-COMP,FIXED

59302-0090

1
Out of stock

92033

RING-SNAP

92033-1317

1
Out of stock

92049

SEAL-OIL

92049-1528

1
Out of stock

92055

RING-O,46.4X3.1

92055-0752

1
Out of stock

92055A

RING-O,59.5X2.4

92055-0753

1
Out of stock

92122

ROLLER

92122-0043

1
Out of stock

92139

BUSHING

92139-0313

1
Out of stock

92145

SPRING

92145-0959

1
Out of stock

92200

WASHER

92200-1505

1
Out of stock

92210

NUT,18MM

92210-0821

1
Out of stock

671

O RING

671D2530

1
Out of stock
