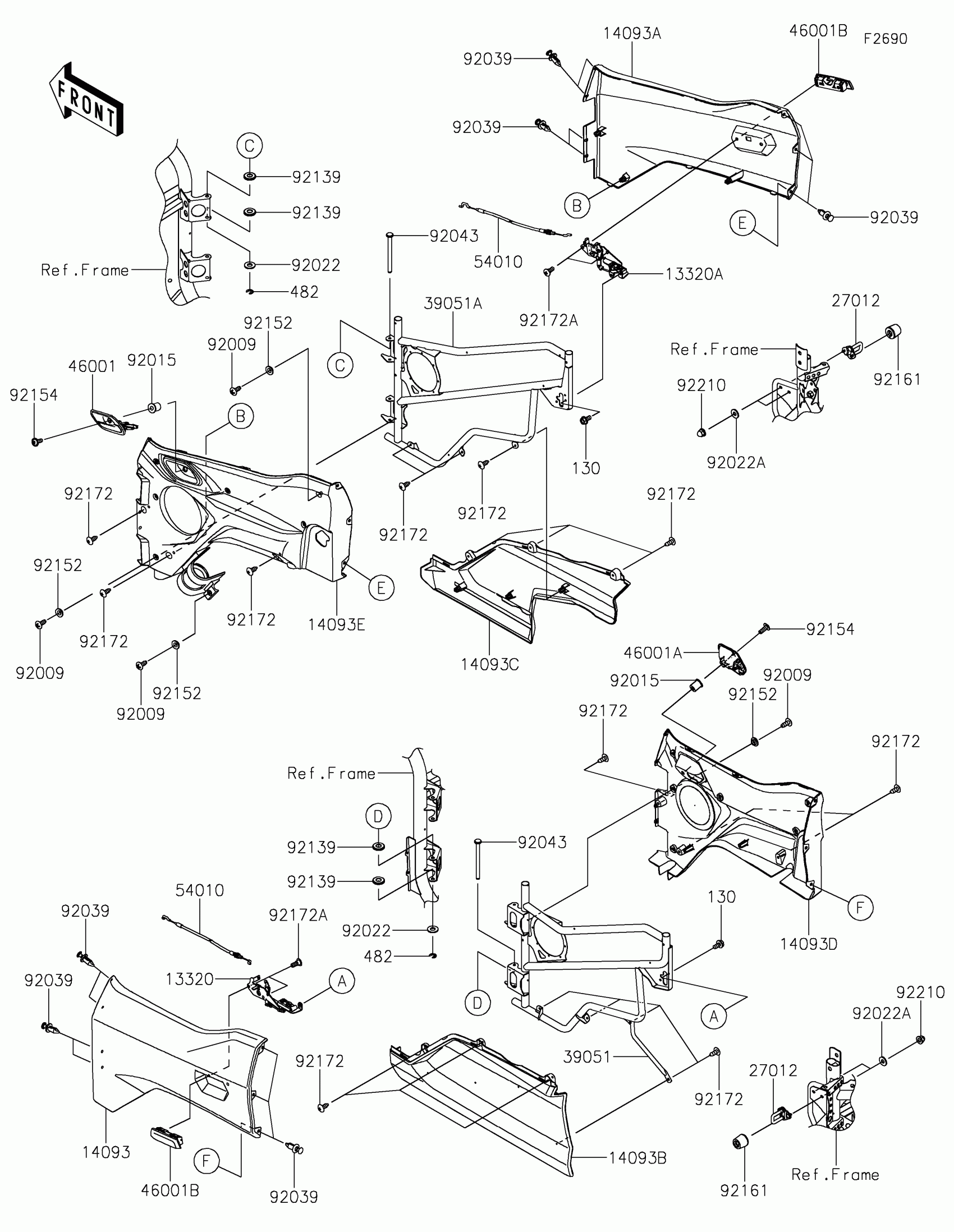

Kawasaki Teryx KRX®4 1000 SE Door(Front) Diagram

#

Description
Price

13320

LEVER-ASSY,LATCH,LH

13320-0048

$75.19

13320A

LEVER-ASSY,LATCH,RH

13320-0049

$75.19

14093

COVER,DOOR,LH,UPP,M.O.BLACK

14093-0814-66E

$153.11

14093A

COVER,DOOR,RH,UPP,M.O.BLACK

14093-0815-66E

$153.11

14093B

COVER,DOOR,LH,LWR

14093-0816

$113.82

14093C

COVER,DOOR,RH,LWR

14093-0817

$116.51

14093D

COVER,DOOR,LH,INNER

14093-0851

$179.06

14093E

COVER,DOOR,RH,INNER

14093-0852

$179.06

27012

HOOK,DOOR

27012-0860

$6.78

39051

FRAME-COMP-SIDE,LH

39051-0023

$196.35

39051A

FRAME-COMP-SIDE,RH

39051-0024

$196.35

46001

HANDLE-ASSY,DOOR,RH,INNER

46001-0015

$42.27

46001A

HANDLE-ASSY,DOOR,LH,INNER

46001-0016

$42.27

46001B

HANDLE-ASSY,DOOR,OUTER

46001-0017

$26.07

54010

CABLE

54010-0651

$17.29

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92015

NUT

92015-1700

$6.82

92022

WASHER,8.2X18X1.5

92022-1964

$3.33

92022A

WASHER

92022-2247

$0.66

92039

RIVET

92039-0776

$0.80

92043

PIN,DOOR

92043-1784

$8.46

92139

BUSHING,DOOR

92139-1215

$0.69

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.75

92154

BOLT,SOCKET,6X16

92154-4068

$1.93

92161

DAMPER,9X28X24.3

92161-1456

$2.95

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,6X16

92172-1333

$1.93

92210

NUT,CAP,6MM

92210-0003

$0.69

130

BOLT-FLANGED,6X12

130CA0612

$3.15

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.67
