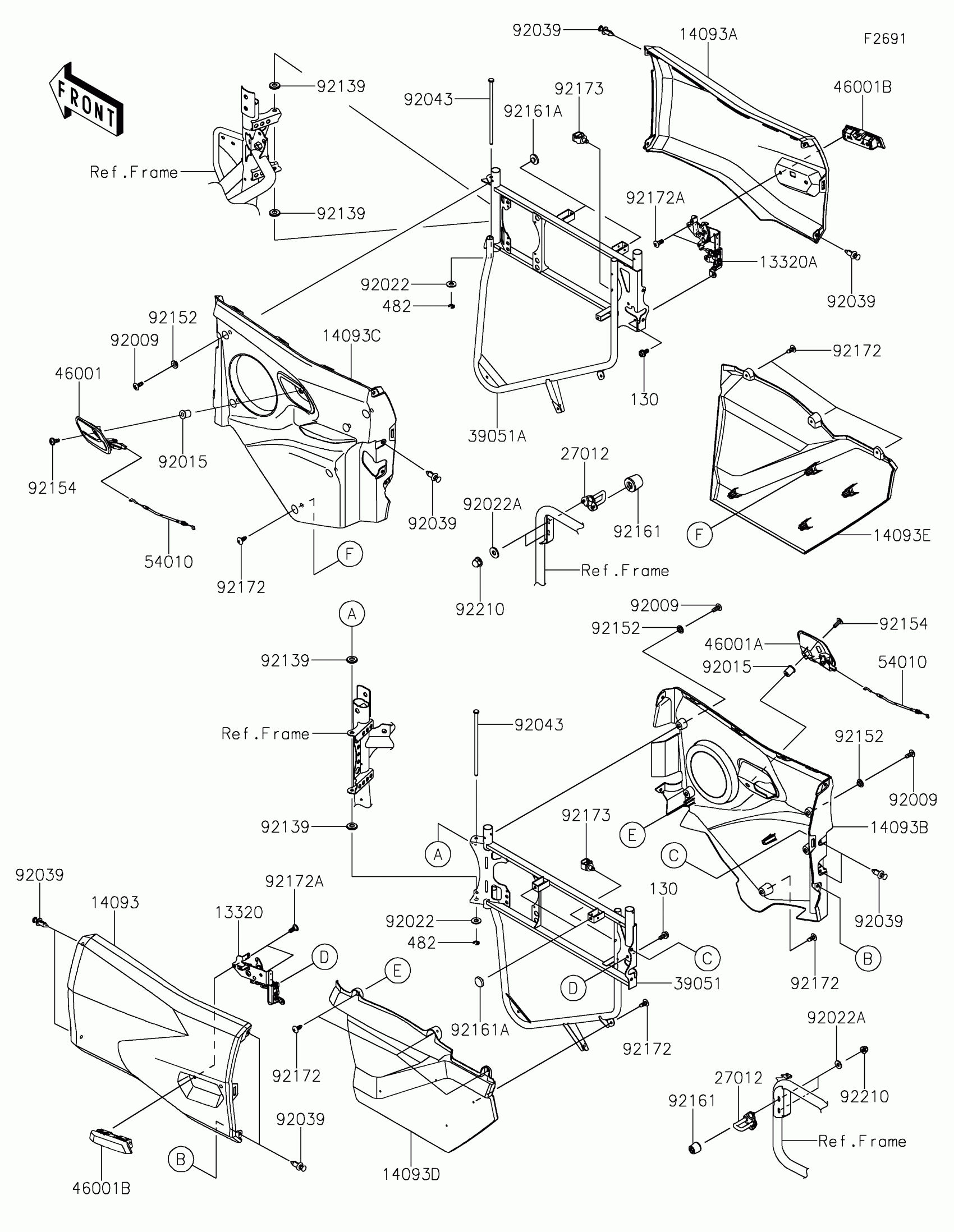

Kawasaki Teryx KRX®4 1000 SE Door(Rear) Diagram

#

Description
Price

13320

LEVER-ASSY,LATCH,RR,LH

13320-0042

$79.36

13320A

LEVER-ASSY,LATCH,RR,RH

13320-0043

$79.36

14093

COVER,DOOR,RR,LH,UPP,M.O.BLACK

14093-1219-66E

$47.34

14093A

COVER,DOOR,RR,RH,UPP,M.O.BLACK

14093-1220-66E

$47.34

14093B

COVER,DOOR,RR,LH,INNER

14093-1221

$38.57

14093C

COVER,DOOR,RR,RH,INNER

14093-1222

$38.57

14093D

COVER,DOOR,RR,LH,LWR

14093-1223

$29.64

14093E

COVER,DOOR,RR,RH,LWR

14093-1224

$29.64

27012

HOOK,DOOR

27012-0860

$6.78

39051

FRAME-COMP-SIDE,RR,LH

39051-0025

$165.67

39051A

FRAME-COMP-SIDE,RR,RH

39051-0026

$165.67

46001

HANDLE-ASSY,DOOR,RH,INNER

46001-0015

$42.27

46001A

HANDLE-ASSY,DOOR,LH,INNER

46001-0016

$42.27

46001B

HANDLE-ASSY,DOOR,OUTER

46001-0017

$26.07

54010

CABLE

54010-0651

$17.29

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92015

NUT

92015-1700

$6.82

92022

WASHER,8.2X18X1.5

92022-1964

$3.33

92022A

WASHER

92022-2247

$0.66

92039

RIVET

92039-0776

$0.80

92043

PIN,DOOR

92043-1785

$24.56

92139

BUSHING,DOOR

92139-1215

$0.69

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.75

92154

BOLT,SOCKET,6X16

92154-4068

$1.93

92161

DAMPER,9X28X24.3

92161-1456

$2.95

92161A

DAMPER

92161-2342

$5.27

92172

SCREW,6X16

92172-0284

$0.94

92172A

SCREW,6X16

92172-1333

$1.93

92173

CLAMP,12MM DIA.

92173-0736

$4.01

92210

NUT,CAP,6MM

92210-0003

$0.69

130

BOLT-FLANGED,6X12

130CA0612

$3.15

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.67
