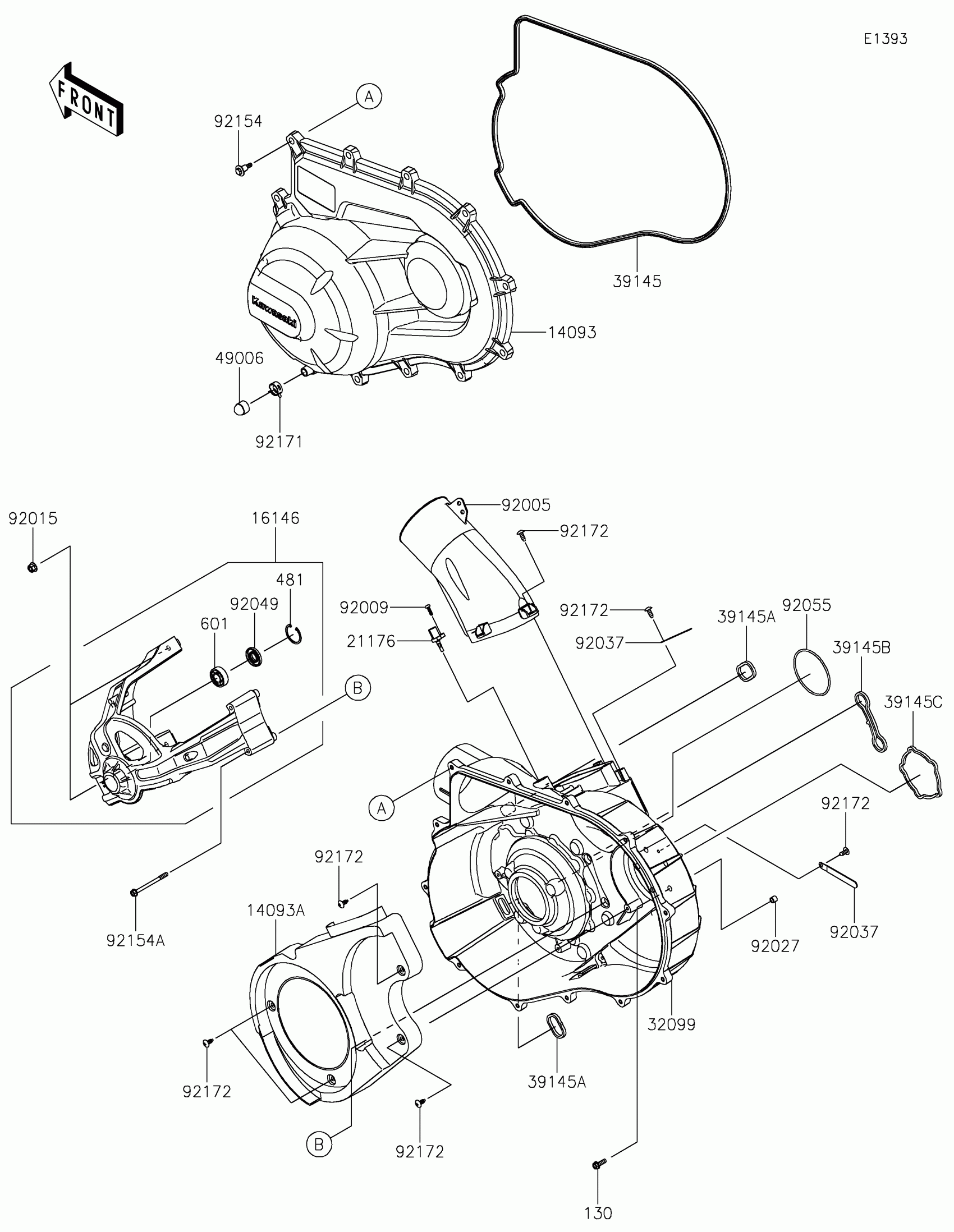

Kawasaki Teryx KRX®4 1000 SE Converter Cover Diagram

Description

Price

14093

COVER,CVT

14093-0774

$197.03

14093A

COVER

14093-0775

$39.87

16146

COVER-ASSY

16146-0840

$116.22

21176

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

32099

CASE,CVT

32099-0795

$281.66

39145

TRIM-SEAL,CVT COVER

39145-0711

$42.56

39145A

TRIM-SEAL

39145-0712

$2.10

39145B

TRIM-SEAL

39145-0713

$3.78

39145C

TRIM-SEAL

39145-0714

$6.33

49006

BOOT,DRAIN

49006-3718

$5.24

92005

FITTING

92005-0978

$30.91

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92015

NUT,FLANGED,LOCK,8MM

92015-1668

$3.38

92027

COLLAR,6.8X10X8.5

92027-129

$3.97

92037

CLAMP

92037-1993

$4.37

92049

SEAL-OIL,TC 15X35X6

92049-0816

$8.23

92055

RING-O,84.4X3.1

92055-0916

$3.70

92154

BOLT,CVT COVER

92154-1522

$2.63

92154A

BOLT,6X80

92154-3862

$2.92

92171

CLAMP

92171-0329

$7.06

92172

SCREW,6X16

92172-0284

$0.94

130

BOLT-FLANGED,6X20

130BA0620

$1.49

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

601

BEARING-BALL,#6202C3

601B6202

$6.86
