2024 Kawasaki Teryx KRX®4 1000 eS Ignition Switch Diagram

← All diagrams

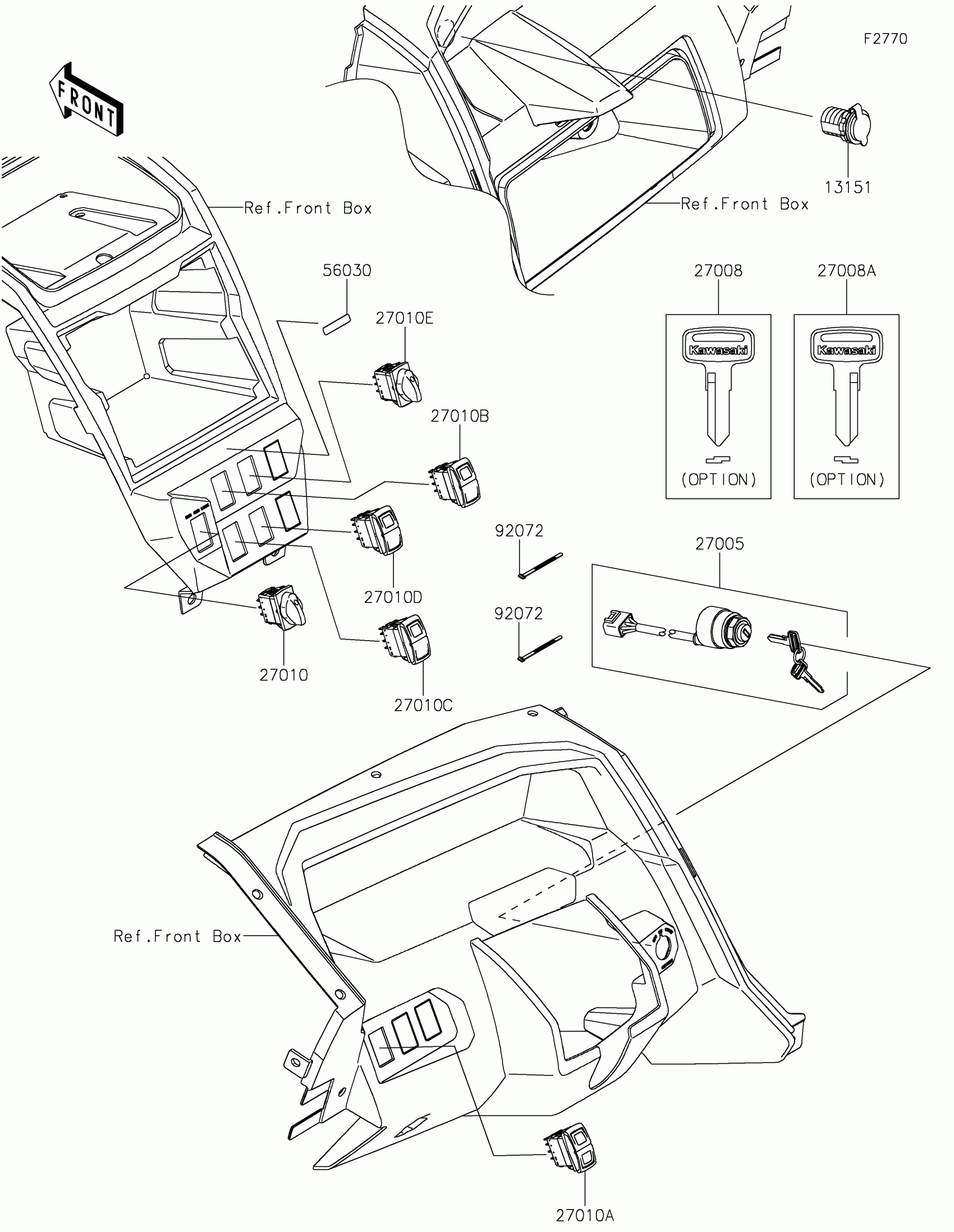

Find the part on the Ignition Switch diagram for your 2024 Kawasaki Teryx KRX®4 1000 eS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Teryx KRX®4 1000 eS Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13151

SWITCH-COMP,OUTLET,12V

13151-0556

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0643

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1153

1
Out of stock

27008A

KEY-LOCK,BLANK

27008-1157

1
Out of stock

27010

SWITCH,2WD/4WD

27010-0902

1
Out of stock

27010A

SWITCH,HEAD LIGHT

27010-0903

1
Out of stock

27010B

SWITCH,POWER MODE

27010-0904

1
Out of stock

27010C

SWITCH,UP/DOWN

27010-0954

1
Out of stock

27010D

SWITCH,SELECT/RETURN

27010-0955

1
Out of stock

27010E

SWITCH,KECS MODE

27010-0972

1
Out of stock

56030

LABEL,KECS MODE

56030-1706

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock
