2024 Kawasaki Teryx KRX®4 1000 eS Generator Diagram

← All diagrams

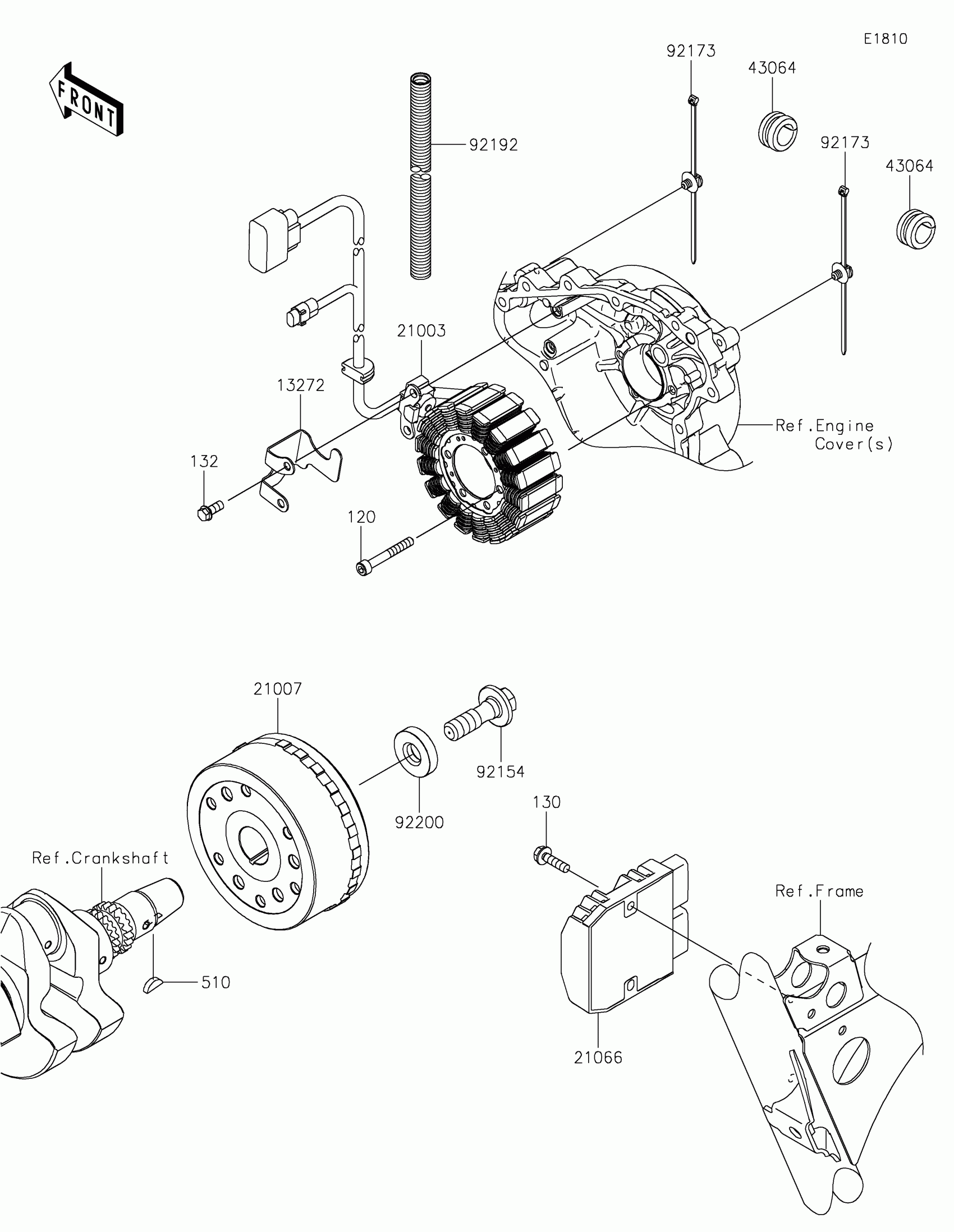

Find the part on the Generator diagram for your 2024 Kawasaki Teryx KRX®4 1000 eS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Teryx KRX®4 1000 eS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,LEAD WIRE

13272-2627

1
Out of stock

21003

STATOR

21003-0196

1
Out of stock

21007

ROTOR

21007-0685

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0771

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

92154

BOLT,FLANGED,14X45

92154-3915

1
Out of stock

92173

CLAMP

92173-2259

1
Out of stock

92192

TUBE,CONVOLUTED,10.7X14.1X140

92192-2521

1
Out of stock

92200

WASHER,14X36X8

92200-2240

1
Out of stock

120

BOLT-SOCKET,6X45

120CA0645

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

132

1

$1.31

In stock

510

KEY-WOODRUFF

510A4200

1
Out of stock
