2024 Kawasaki Teryx KRX®4 1000 Es Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2024 Kawasaki Teryx KRX®4 1000 Es, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

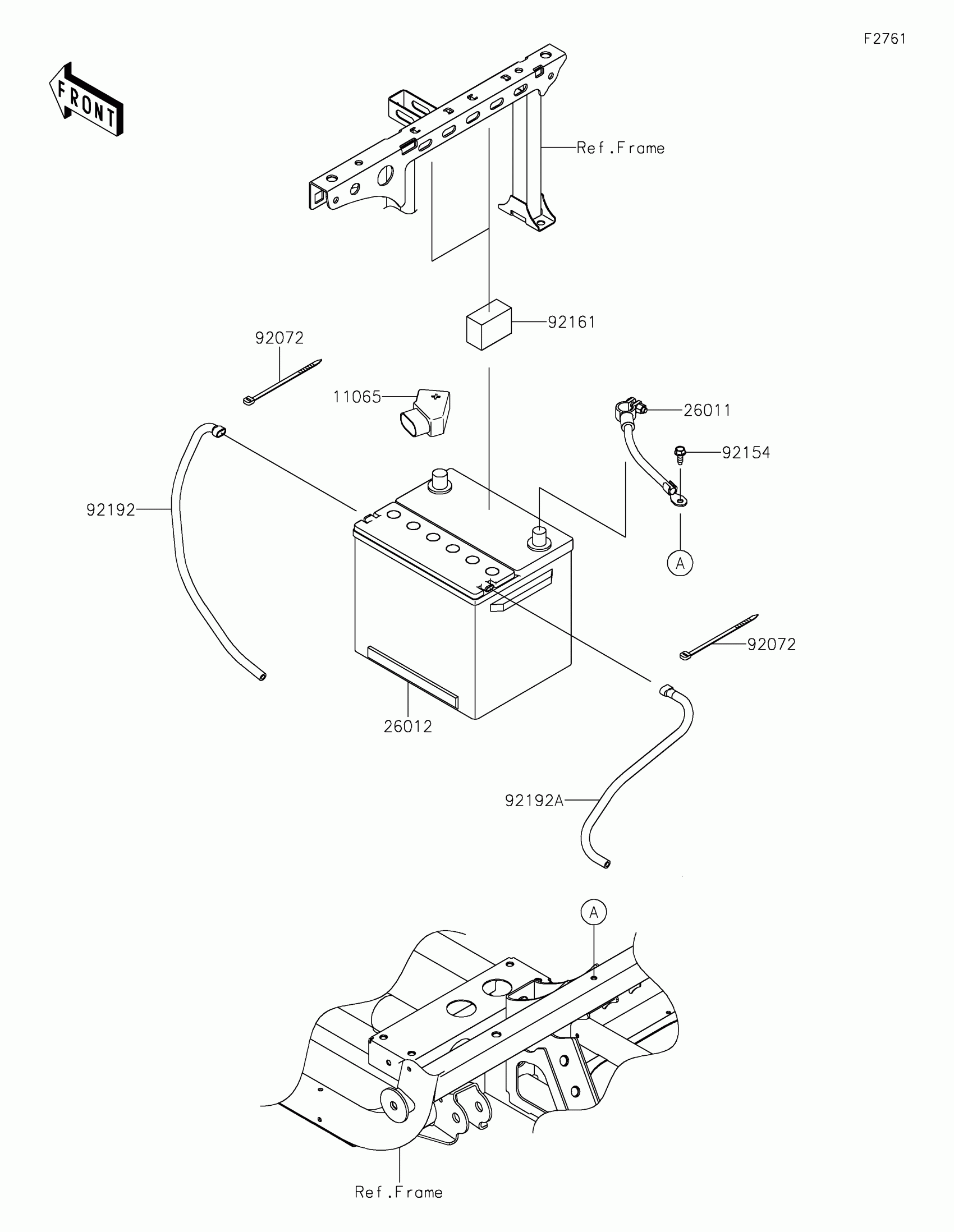

2024 Kawasaki Teryx KRX®4 1000 Es Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0850

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-1871

1
Out of stock

26012

BATTERY,WET,(26R)

26012-7501

1
Out of stock

92072

BAND,92X2.4

92072-0791

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92161

DAMPER,TANK & SEAT FRAME

92161-2288

1
Out of stock

92192

TUBE,BREATHER,7X10X500

92192-2256

1
Out of stock

92192A

TUBE,BREATHER,7X10X300

92192-2257

1
Out of stock
