2020 Kawasaki Teryx KRX® 1000 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

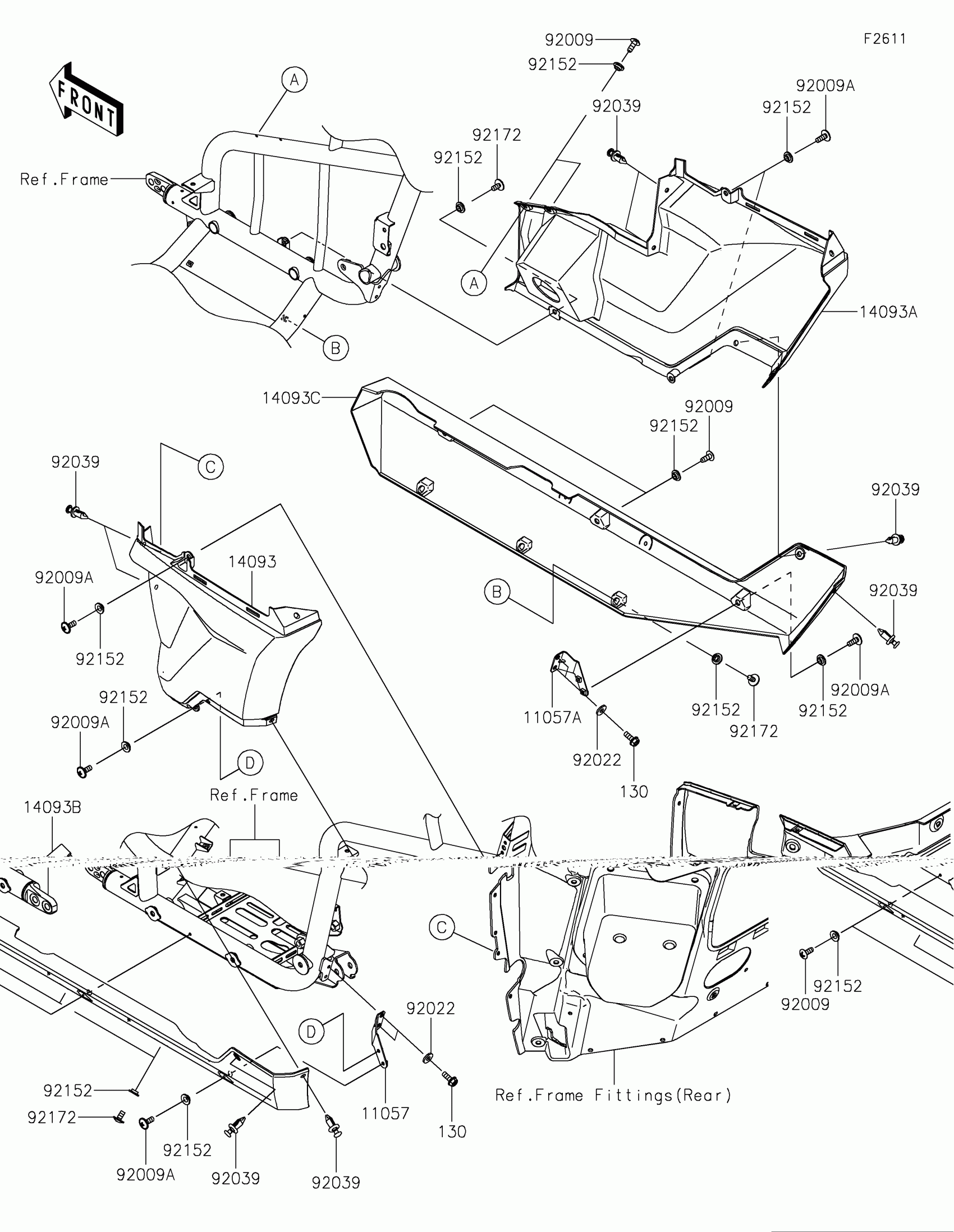

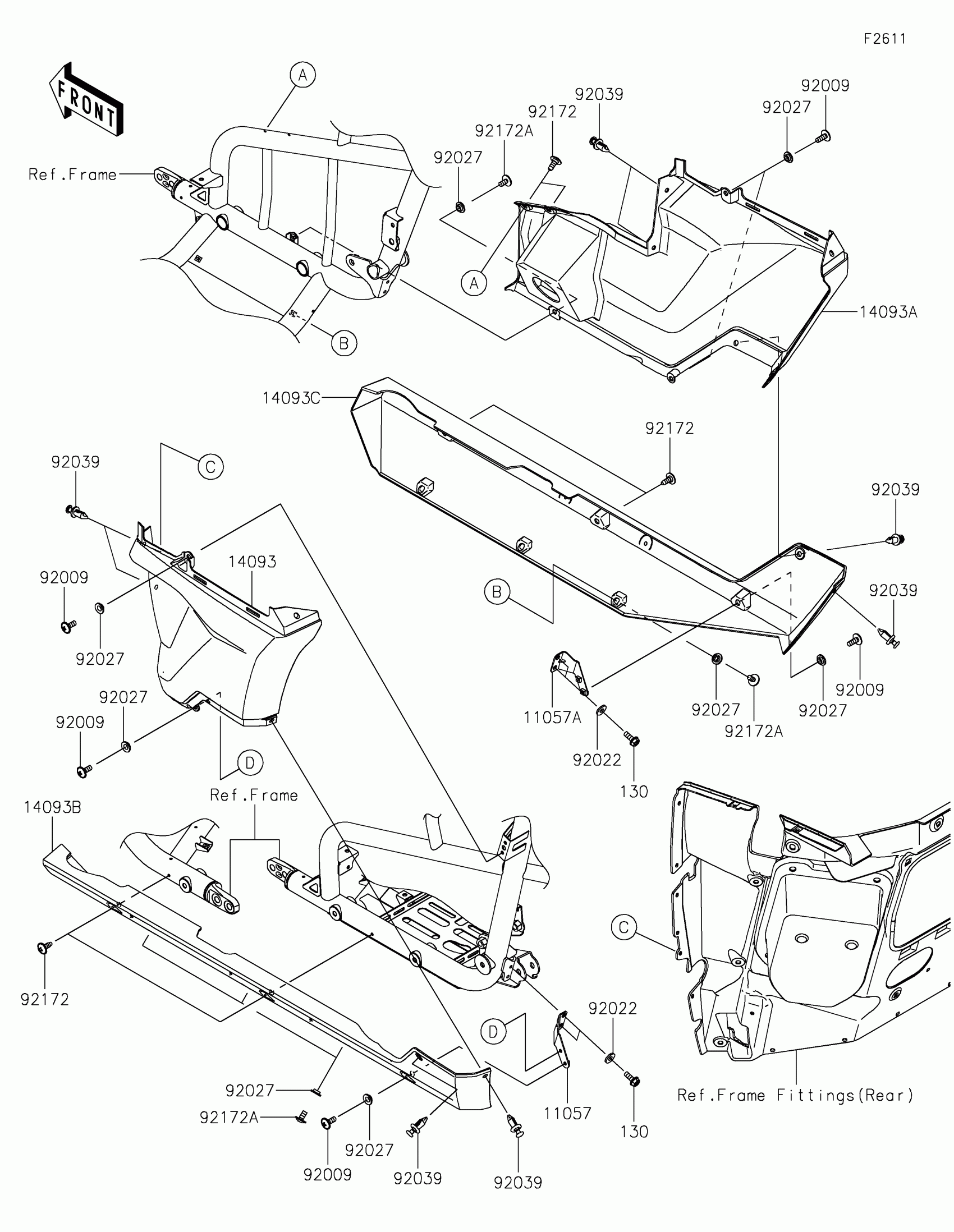

2020 Kawasaki Teryx KRX® 1000 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$5.03

In stock

11057A

1

$5.03

In stock

14093

COVER,SIDE,RR,LH

14093-0825

1

$21.84

In stock

14093A

COVER,SIDE,RR,RH

14093-0826

1

$24.19

In stock

14093B

COVER,SIDE,LWR,LH

14093-0827

1

$82.81

In stock

14093C

COVER,SIDE,LWR,RH

14093-0828

1

$75.63

In stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92022

WASHER,6.5X16X2

92022-1565

1

$3.12

In stock

92027

COLLAR,L=4.6

92027-1168

1

$3.97

In stock

92039

RIVET

92039-0776

1

$0.80

In stock

92172

SCREW,6X16

92172-0711

1

$2.44

In stock

92172A

SCREW,6X12

92172-0853

1

$1.03

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
