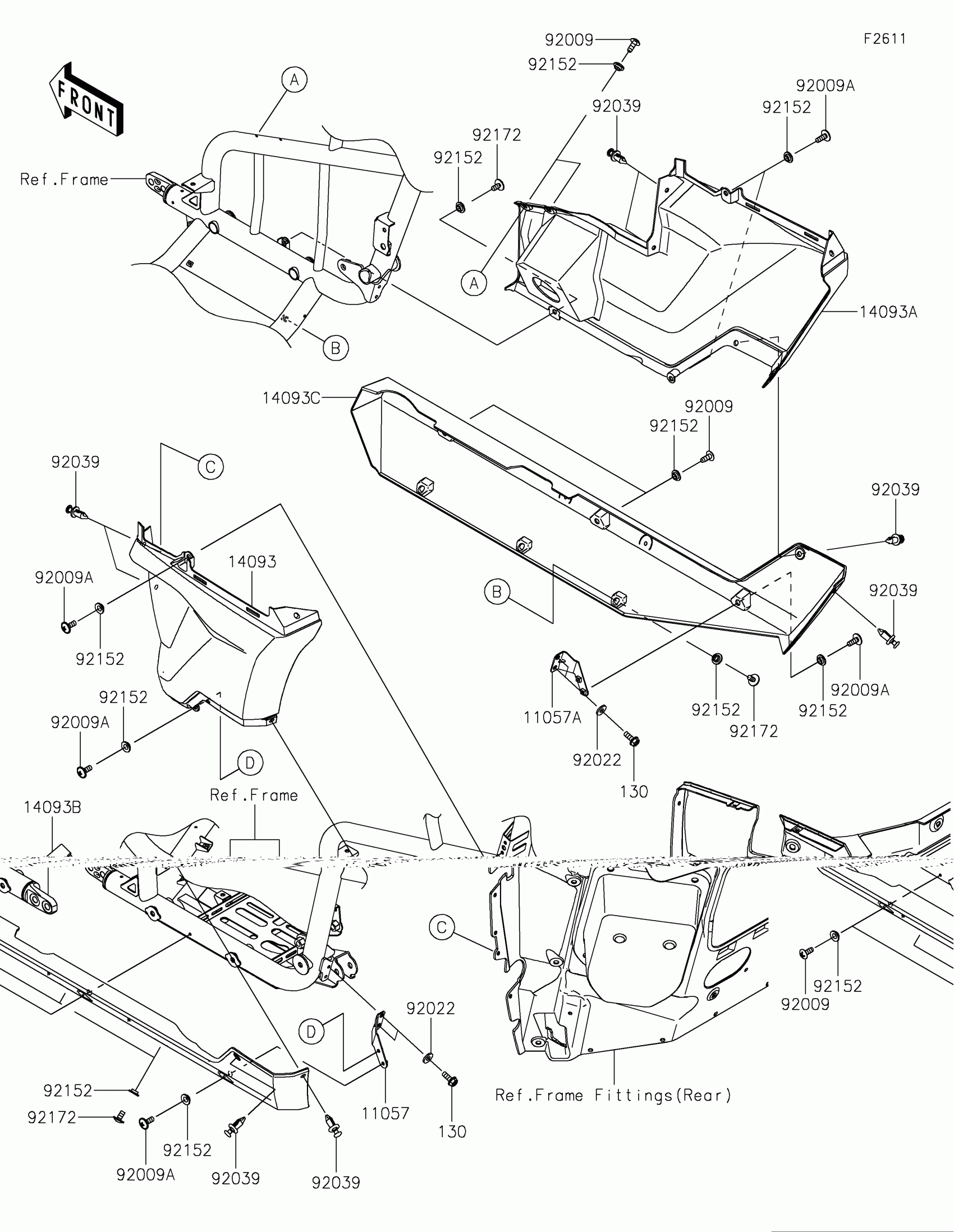

Kawasaki TERYX KRX® 1000 LIFTED EDITION Side Covers Diagram

Description

Price

11057

BRACKET,SIDE COVER,LH

11057-4181

$5.03

11057A

BRACKET,SIDE COVER,RH

11057-4182

$5.03

14093

COVER,SIDE,RR,LH

14093-0825

$20.96

14093A

COVER,SIDE,RR,RH

14093-0826

$24.19

14093B

COVER,SIDE,LWR,LH

14093-0827

$82.81

14093C

COVER,SIDE,LWR,RH

14093-0828

$72.57

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X16X2

92022-1565

$2.99

92039

RIVET

92039-0776

$0.80

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92172

SCREW,6X12

92172-0853

$0.89

130

BOLT-FLANGED,6X16

130BA0616

$0.97
