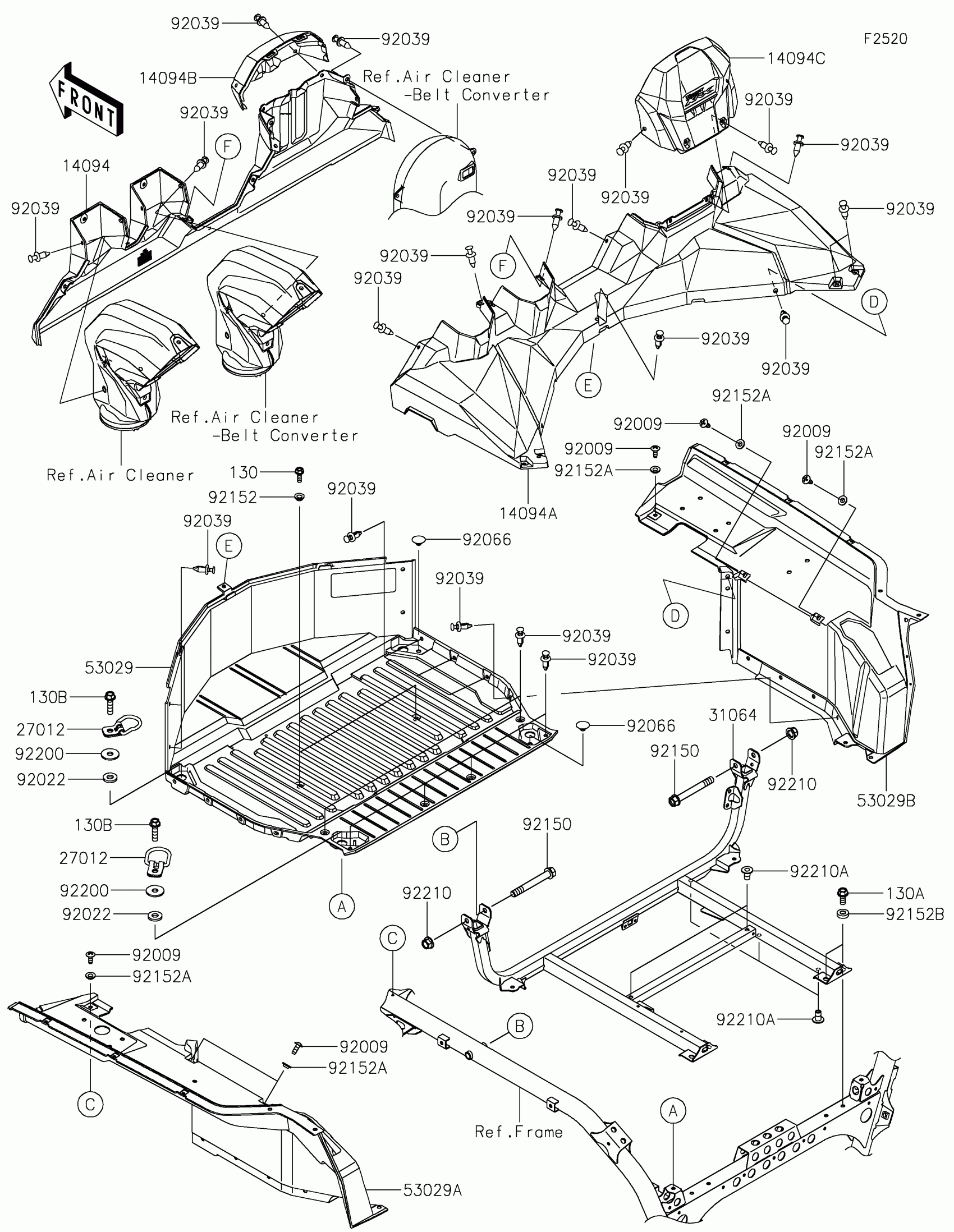

Kawasaki TERYX KRX® 1000 LIFTED EDITION Carrier(s) Diagram

Description

Price

14094

COVER,MAINTENANCE,FR

14094-0038

$35.33

14094A

COVER,MAINTENANCE,RR

14094-0039

$40.88

14094B

COVER,CVT DUCT,FR

14094-0109

$9.36

14094C

COVER,CVT DUCT,RR

14094-0110

$11.22

27012

HOOK

27012-0863

$8.02

31064

PIPE-COMP,RR CARRIER FRAME

31064-0791

$193.21

53029

CARRIER,BASE

53029-0359

$132.19

53029A

CARRIER,LH

53029-0360

$34.14

53029B

CARRIER,RH

53029-0361

$34.14

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92022

WASHER,10X22X3.2

92022-1944

$3.81

92039

RIVET

92039-0776

$0.80

92066

PLUG

92066-1485

$1.74

92150

BOLT,10X80

92150-1893

$3.58

92152

COLLAR

92152-0224

$4.27

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92152B

COLLAR,8.2X18X5

92152-1848

$4.98

92200

WASHER,9X28X2.3

92200-1951

$3.35

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.08

130

BOLT-FLANGED,6X18

130CA0618

$1.53

130A

BOLT-FLANGED,8X18

130CA0818

$1.81

130B

BOLT-FLANGED,8X30

130CA0830

$0.86
