2020 Kawasaki Teryx KRX® 1000 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

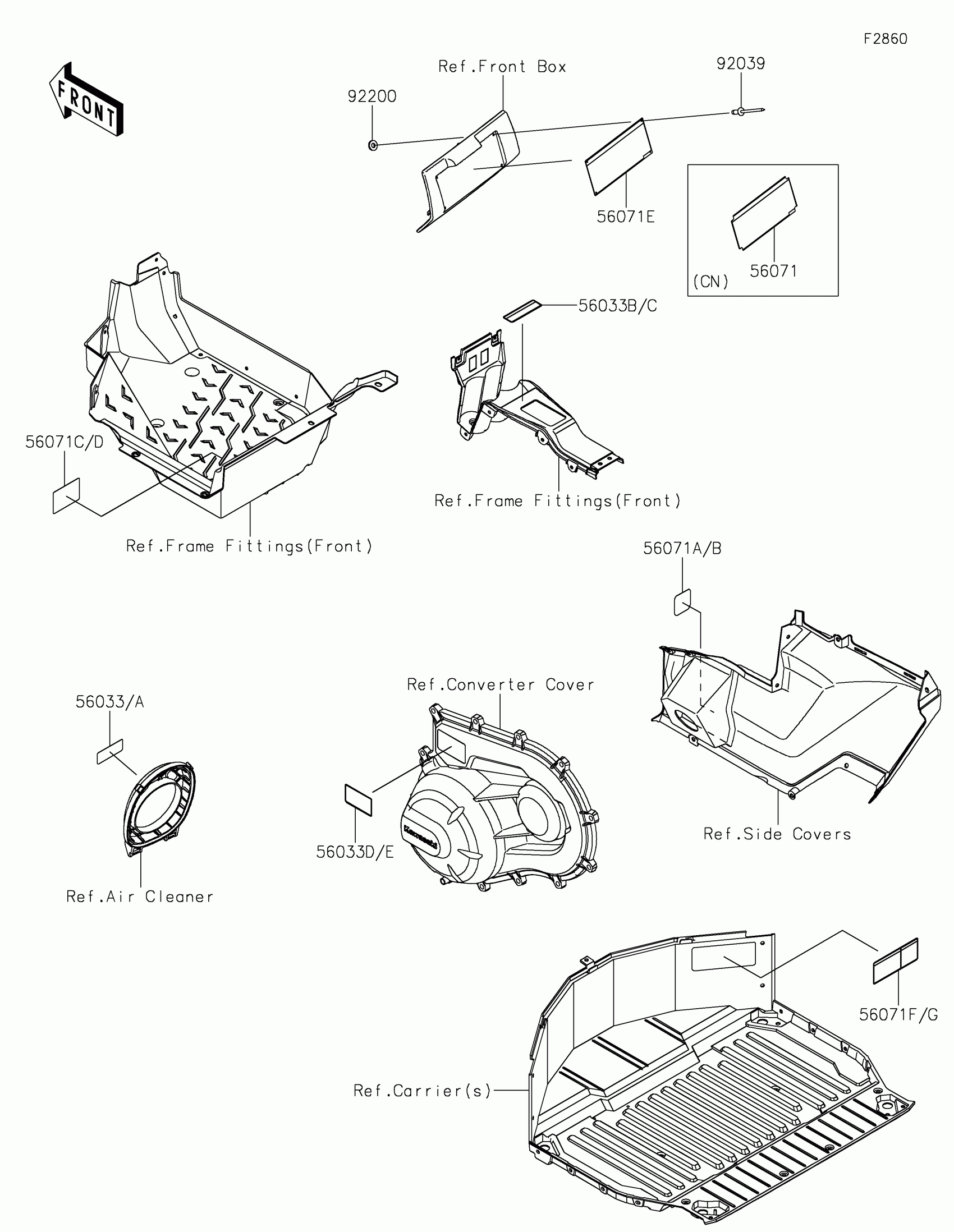

2020 Kawasaki Teryx KRX® 1000 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56033

1

$3.73

In stock

56033B

1

$7.41

In stock

56033E

1

$7.41

In stock

56071A

1

$7.41

In stock

56071C

1

$14.27

In stock

56071E

1

$29.32

In stock

56071F

1

$2.37

In stock

92039

RIVET,3.2X8

92039-3763

1

$1.54

In stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock
← Guards/cab Frame Rear Fender →

More Body & Frame diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
