2008 Kawasaki Teryx® 750 4x4 Transmission Diagram

← All diagrams

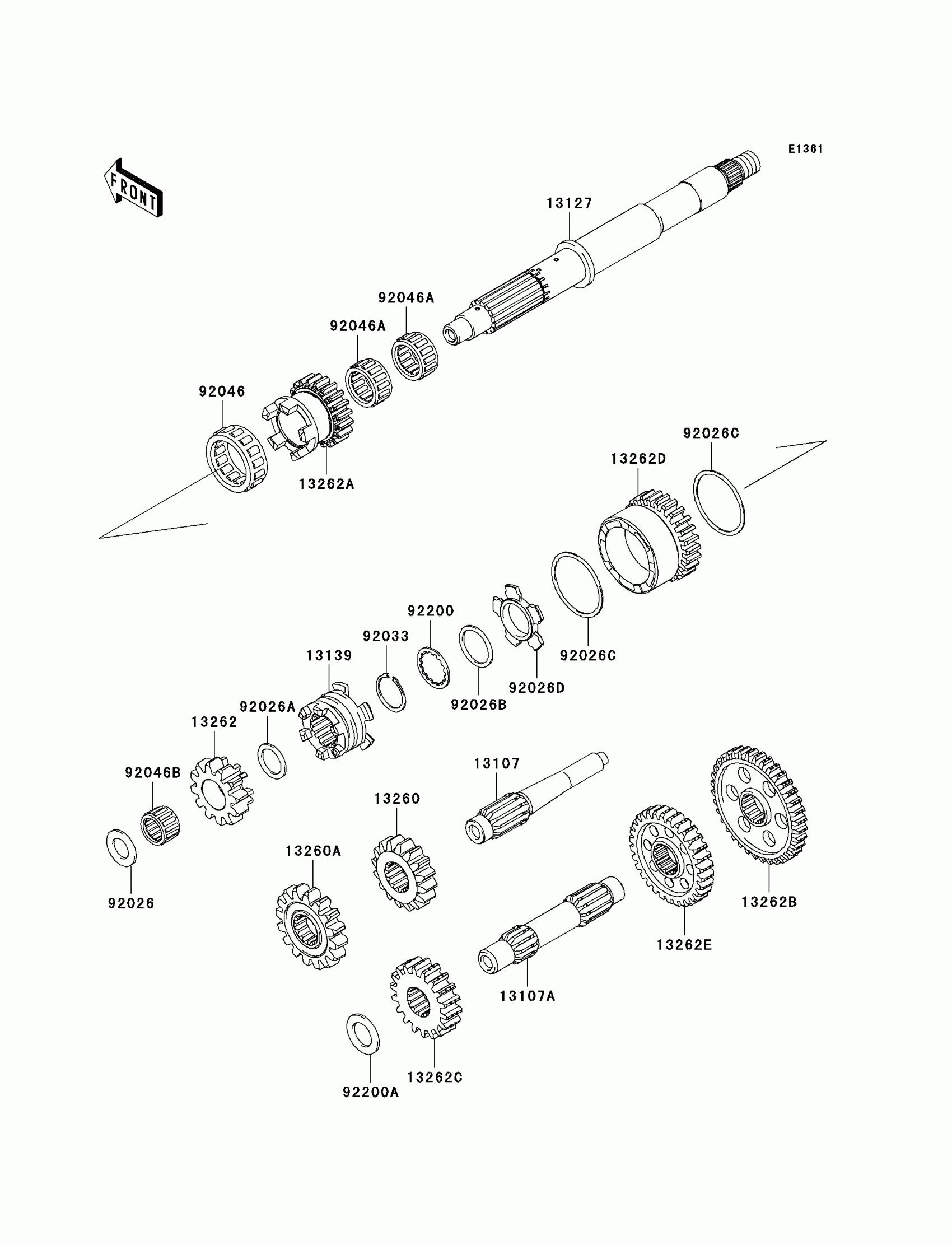

Find the part on the Transmission diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Teryx® 750 4x4 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,REVERSE,IDLE

13107-0158

1
Out of stock

13107A

SHAFT,COUNTER

13107-0177

1
Out of stock

13127

1

$297.67

In stock

13139

SHIFTER

13139-0003

1
Out of stock

13260

GEAR,OUTPUT REVERSE,16T

13260-1872

1
Out of stock

13260A

GEAR,DRIVEN REVERSE,16T

13260-1873

1
Out of stock

13262

GEAR,INPUT REVERSE,12T

13262-0235

1
Out of stock

13262A

GEAR,INPUT LOW,20T

13262-0545

1
Out of stock

13262B

GEAR,OUTPUT LOW,36T

13262-0546

1
Out of stock

13262C

GEAR,OUTPUT DRIVE,18T

13262-0547

1
Out of stock

13262D

GEAR,INPUT HI,26T

13262-0573

1
Out of stock

13262E

GEAR,OUTPUT HI,30T

13262-0574

1
Out of stock

92026

SPACER,17.3X30X2.0

92026-1415

1

$7.90

In stock

92026A

SPACER,21.2X29X1.6

92026-1568

1

$7.81

In stock

92026B

1

$3.33

In stock

92026C

1

$4.90

In stock

92026D

SPACER,HI&LOW

92026-1600

1

$46.70

In stock

92033

1

$3.69

In stock

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

1
Out of stock

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

1
Out of stock

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

1
Out of stock

92200

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock

92200A

WASHER,20.3X33X2.0

92200-1351

1
Out of stock
