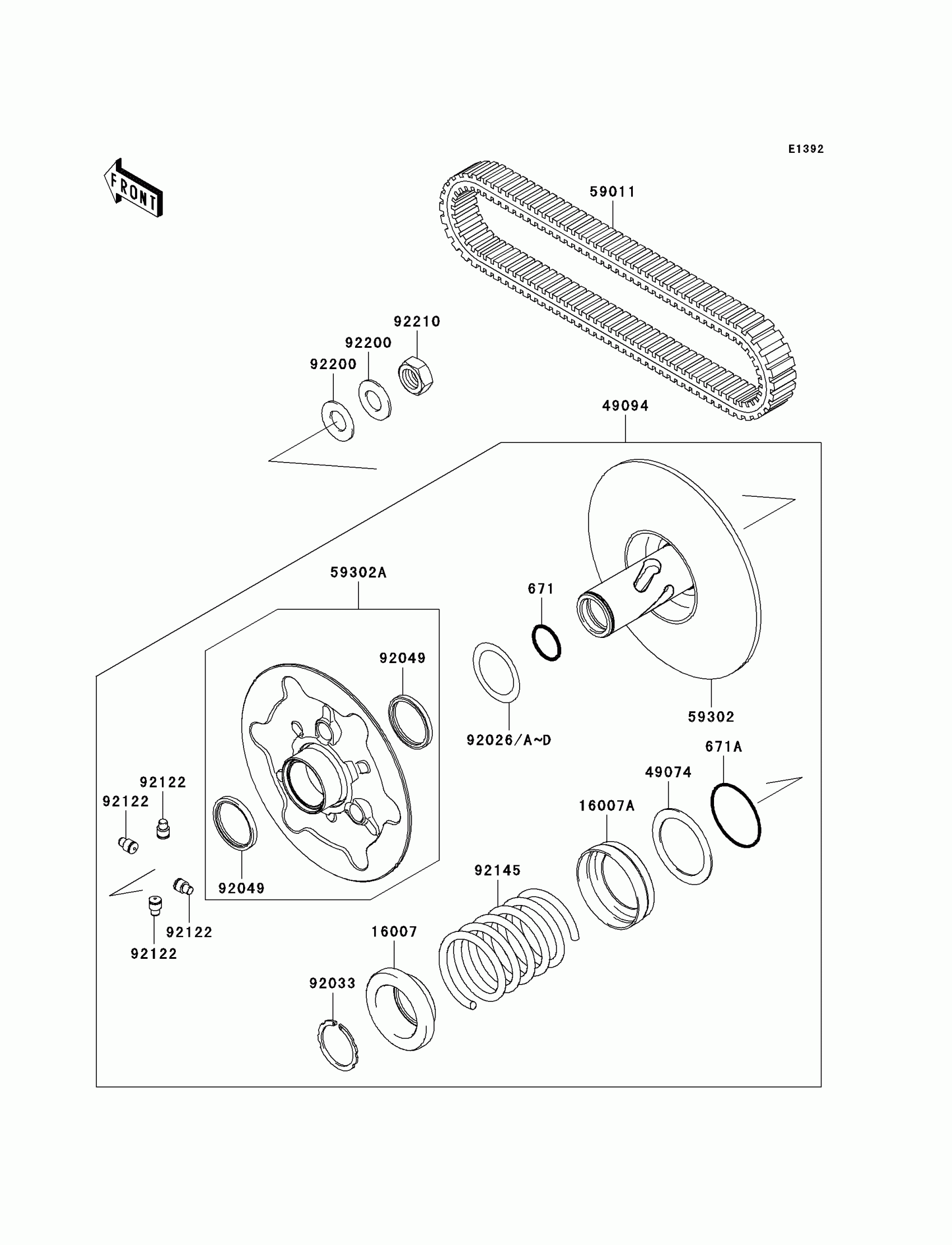

Kawasaki Teryx® 750 4x4 Driven Converter/Drive Belt Diagram

Description

Price

671

O RING

671D2530

$4.39

671A

O RING

671D2550

$5.71

16007

SEAT-SPRING,ENG SIDE

16007-0030

$19.85

16007A

SEAT-SPRING,SHEAVE MOVL SIDE

16007-0031

$21.08

49074

PLATE-THRUST

49074-1055

$37.28

49094

CONVERTER-ASSY-DRIVEN

49094-0043

Unavailable

59011

BELT,CVT

59011-0019

$107.38

59302

SHEAVE-COMP,FIXED

59302-0001

Unavailable

59302A

SHEAVE-COMP,MOVABLE

59302-0002

Unavailable

92026

SPACER,T=0.30

92026-0034

Unavailable

92026A

SPACER,T=1.00

92026-1565

Unavailable

92026B

SPACER,T=0.60

92026-1569

Unavailable

92026C

SPACER,T=1.40

92026-1570

Unavailable

92026D

SPACER,T=0.80

92026-1617

Unavailable

92033

RING-SNAP

92033-1317

$4.61

92049

SEAL-OIL

92049-1528

$12.45

92122

ROLLER

92122-1209

$5.84

92145

SPRING,WHITE PAINT

92145-0576

$37.16

92200

WASHER

92200-1505

$3.81

92210

NUT,18MM

92210-1367

$6.38
