2008 Kawasaki Teryx® 750 4x4 Shift Lever Diagram

← All diagrams

Find the part on the Shift Lever diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

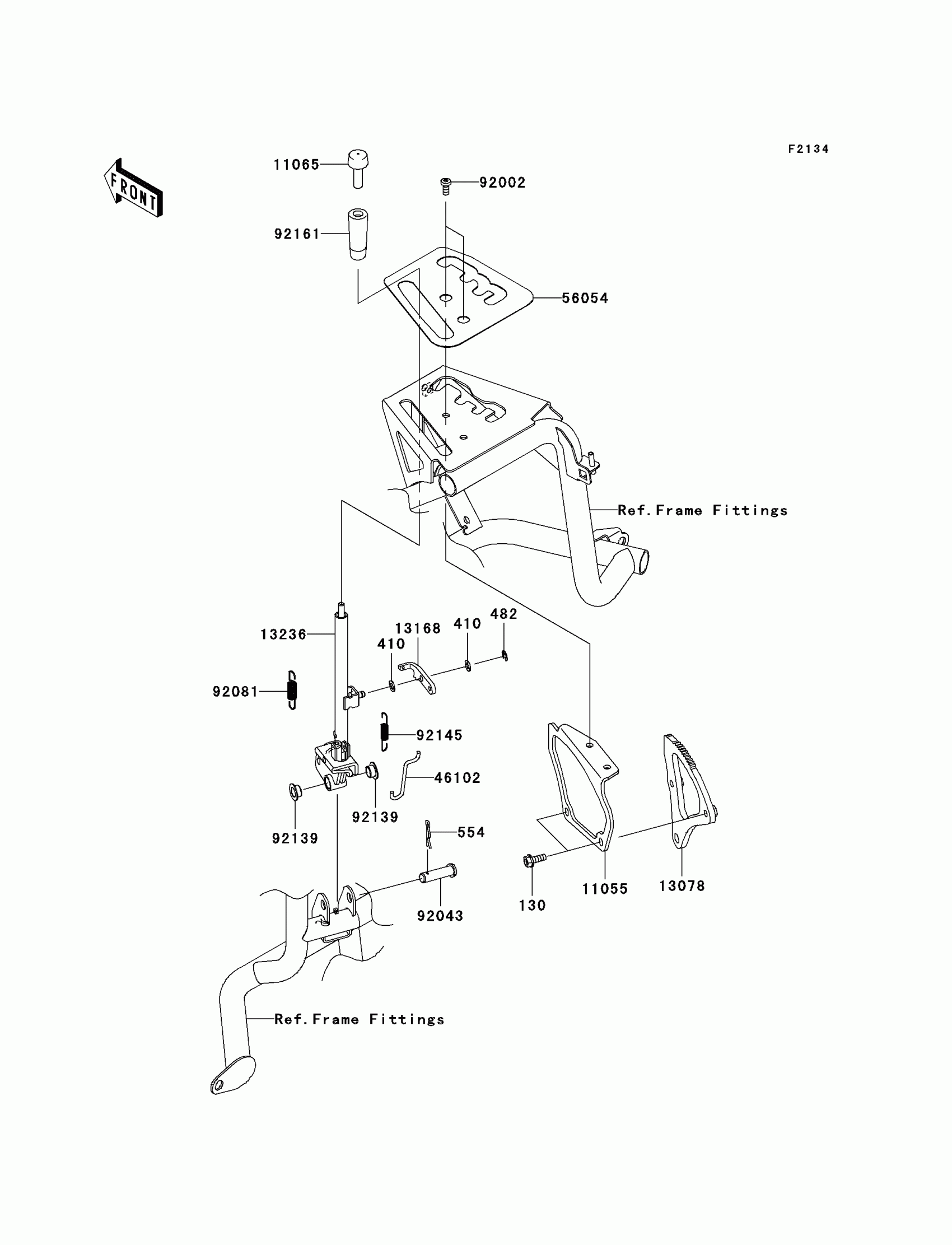

2008 Kawasaki Teryx® 750 4x4 Shift Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130BB0616

1

$1.73

In stock

410

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

482

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

554

PIN-SNAP,10MM

554DA1000

1
Out of stock

11055

BRACKET

11055-0477

1

$49.98

In stock

11065

CAP

11065-0269

1
Out of stock

13078

RATCHET

13078-0021

1
Out of stock

13168

LEVER

13168-0175

1
Out of stock

13236

LEVER-COMP

13236-0163

1
Out of stock

46102

ROD

46102-0131

1
Out of stock

56054

MARK,DIFF LOCK

56054-0179

1
Out of stock

92002

BOLT,6X14

92002-1700

1
Out of stock

92043

PIN,FOOTRST STEP FIT

92043-1069

1
Out of stock

92081

SPRING

92081-1023

1
Out of stock

92139

BUSHING

92139-0230

1
Out of stock

92145

SPRING

92145-0611

1
Out of stock

92161

DAMPER

92161-0616

1
Out of stock
