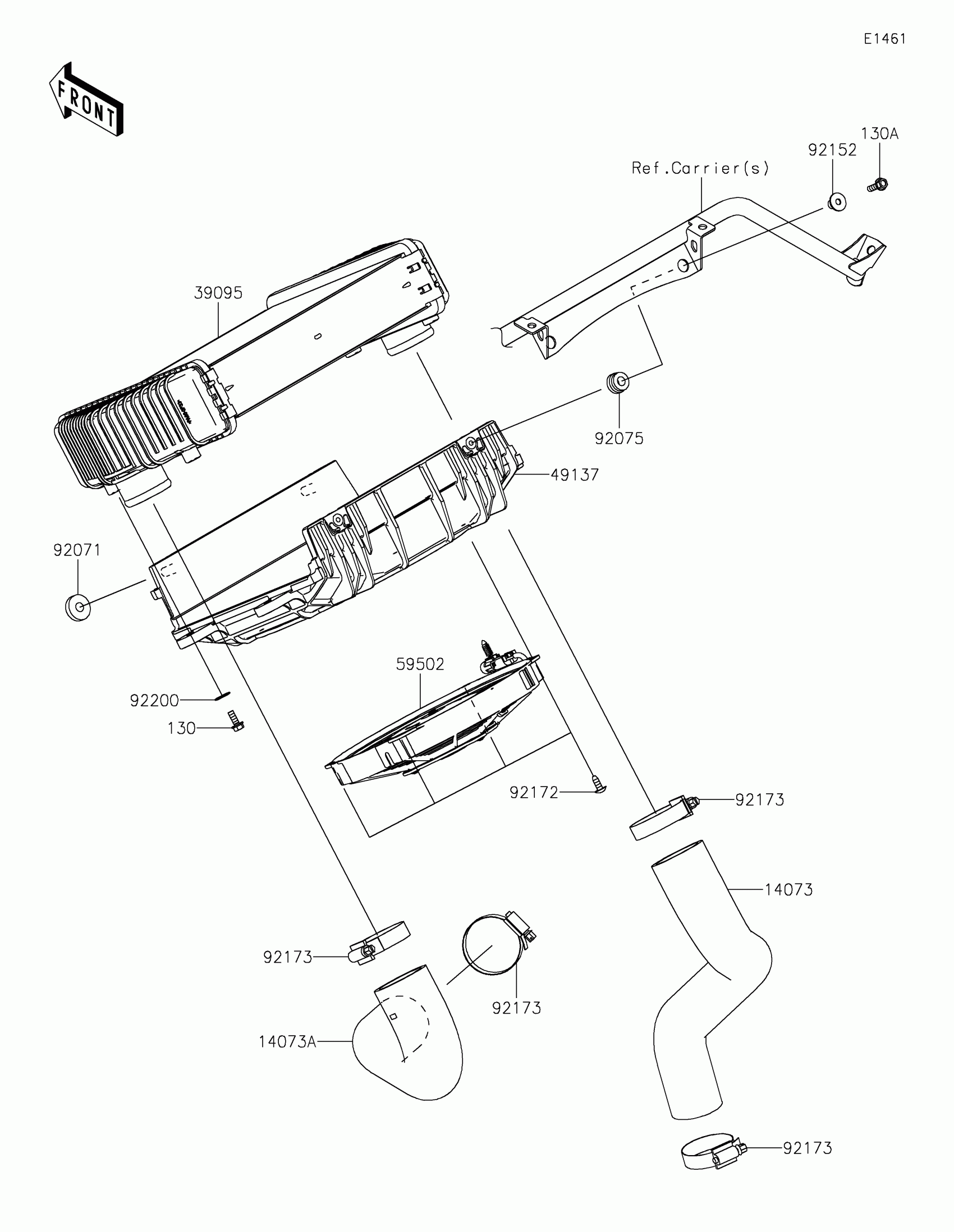

Kawasaki TERYX®5 H2 DELUXE eS Inter Cooler Diagram

Description

Price

14073

DUCT,COMPRESSOR-I/C

14073-1962

$112.78

14073A

DUCT,I/C-CHAMBER

14073-1963

$223.79

39095

INTERCOOLER

39095-0001

$777.04

49137

SHROUD

49137-0006

$223.79

59502

FAN-ASSY

59502-0650

$125.26

92071

GROMMET

92071-0827

$2.76

92075

DAMPER,RUBBER

92075-1123

$3.81

92152

COLLAR,6.5X10X13.1

92152-0332

$4.95

92172

SCREW,6X16

92172-0284

$0.90

92173

CLAMP

92173-2810

$14.19

92200

WASHER,6.1X18X1.0

92200-2125

$2.32

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X22

130BA0622

$1.00
