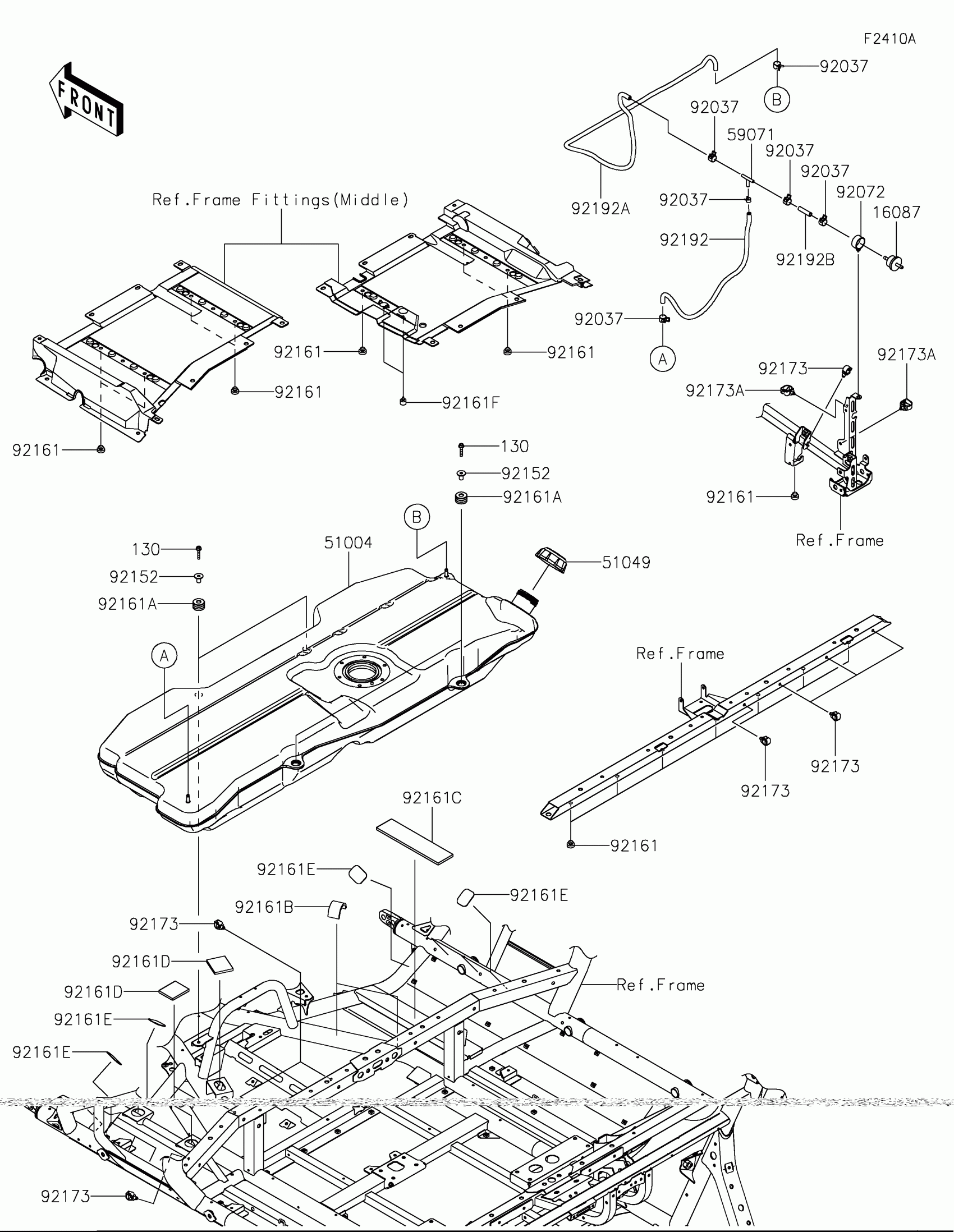

Kawasaki TERYX®5 H2 DELUXE eS Fuel Tank(CA) Diagram

Description

Price

16087

VALVE-CHECK

16087-0011

$38.71

51004

TANK-FUEL

51004-0716

$478.67

51049

CAP-TANK,FUEL

51049-0718

$58.05

59071

JOINT

59071-3705

$4.15

92037

CLAMP

92037-2113

$0.97

92072

BAND

92072-0852

$4.42

92152

COLLAR,6.8X10X18.1

92152-1867

$4.61

92161

DAMPER

92161-0046

$9.14

92161A

DAMPER,TANK

92161-2178

$1.08

92161B

DAMPER,TANK FRAME PIPE

92161-2179

$1.51

92161C

DAMPER,TANK LOWER

92161-2253

$10.53

92161D

DAMPER,60X50X6.35

92161-2587

$4.88

92161E

DAMPER,45X35X1.5

92161-2600

$3.98

92161F

DAMPER,FUEL PUMP

92161-2775

$5.08

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0861

$2.11

92192

TUBE,BREATHER,LH

92192-2771

$94.17

92192A

TUBE,BREATHER,RH

92192-2772

$99.90

92192B

TUBE,5X10.4X40

92192-2773

$18.14

130

BOLT-FLANGED,6X30

130BA0630

$1.13
