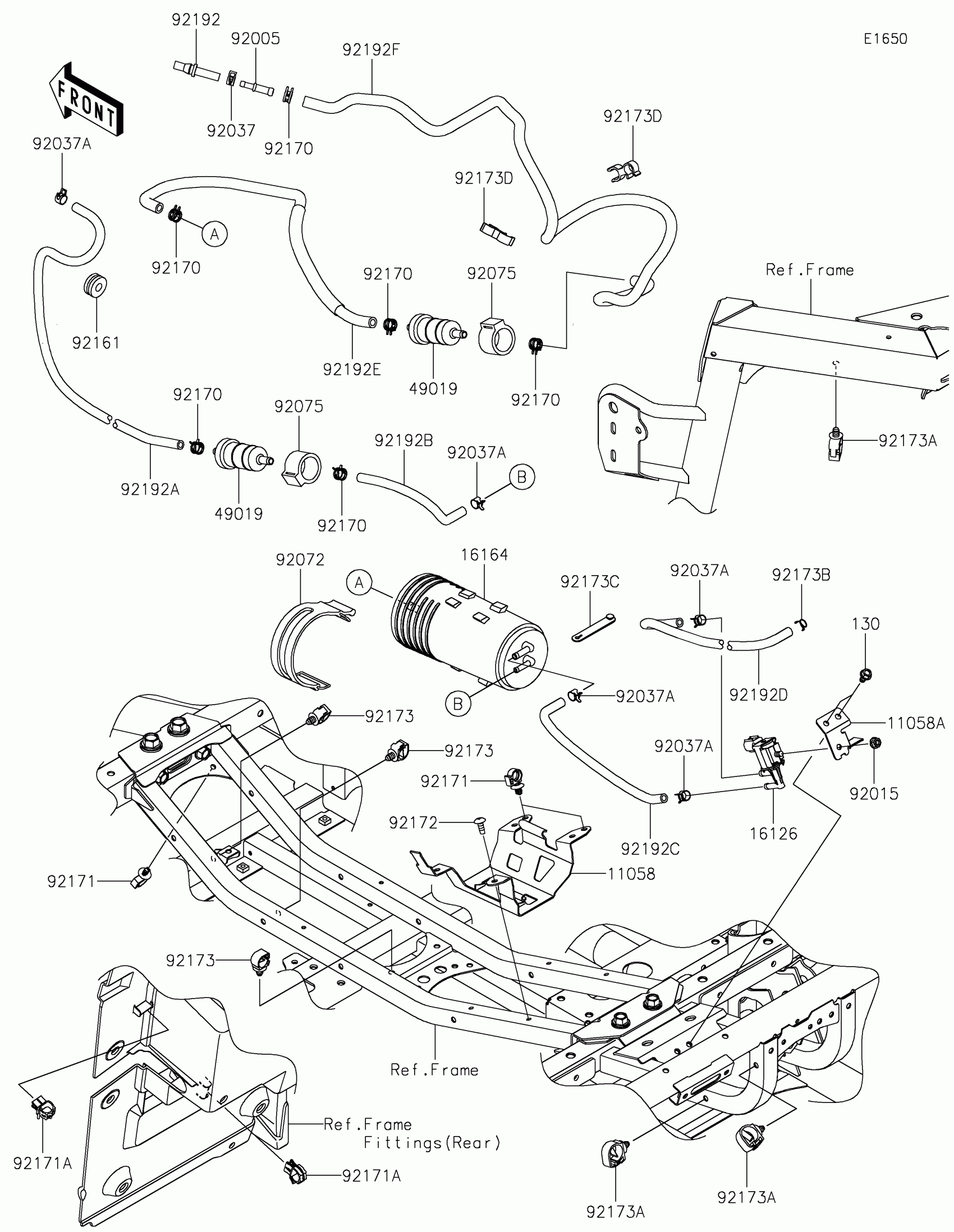

Kawasaki TERYX®5 H2 DELUXE eS Fuel Evaporative System(CA) Diagram

Description

Price

11058

BRACKET,CANISTER,FILTER

11058-1956

$88.08

11058A

BRACKET,FILTER,VALVE

11058-1957

$14.95

16126

VALVE,PCV

16126-0731

$109.25

16164

CANISTER

16164-0016

$209.81

49019

FILTER-FUEL

49019-0032

$18.12

92005

FITTING

92005-0720

$3.19

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP

92037-2113

$0.97

92072

BAND,L=168

92072-1306

$10.44

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92161

DAMPER,10X26X11.5

92161-1691

$0.86

92170

CLAMP

92170-2082

$0.71

92171

CLAMP

92171-0453

$3.12

92171A

CLAMP,EDGE CLIP

92171-1722

$7.90

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0861

$2.11

92173B

CLAMP

92173-1568

$4.39

92173C

CLAMP

92173-2199

$1.32

92173D

CLAMP

92173-2812

$13.73

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.49

92192A

TUBE,CHECK VALVE-FILTER

92192-2779

$99.90

92192B

TUBE,FILTER-CANISTER

92192-2780

$34.92

92192C

TUBE,CANISTER-VALVE

92192-2781

$36.35

92192D

TUBE,VALVE-THROTTLE

92192-2782

$71.27

92192E

TUBE,CANISTER-FILTER

92192-2783

$21.63

92192F

TUBE,FILTER-FRAME PIPE

92192-2784

$24.51

130

BOLT-FLANGED,6X12

130BA0612

$1.25
