1990 Kawasaki Tengai Canister Diagram

← All diagrams

Find the part on the Canister diagram for your 1990 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

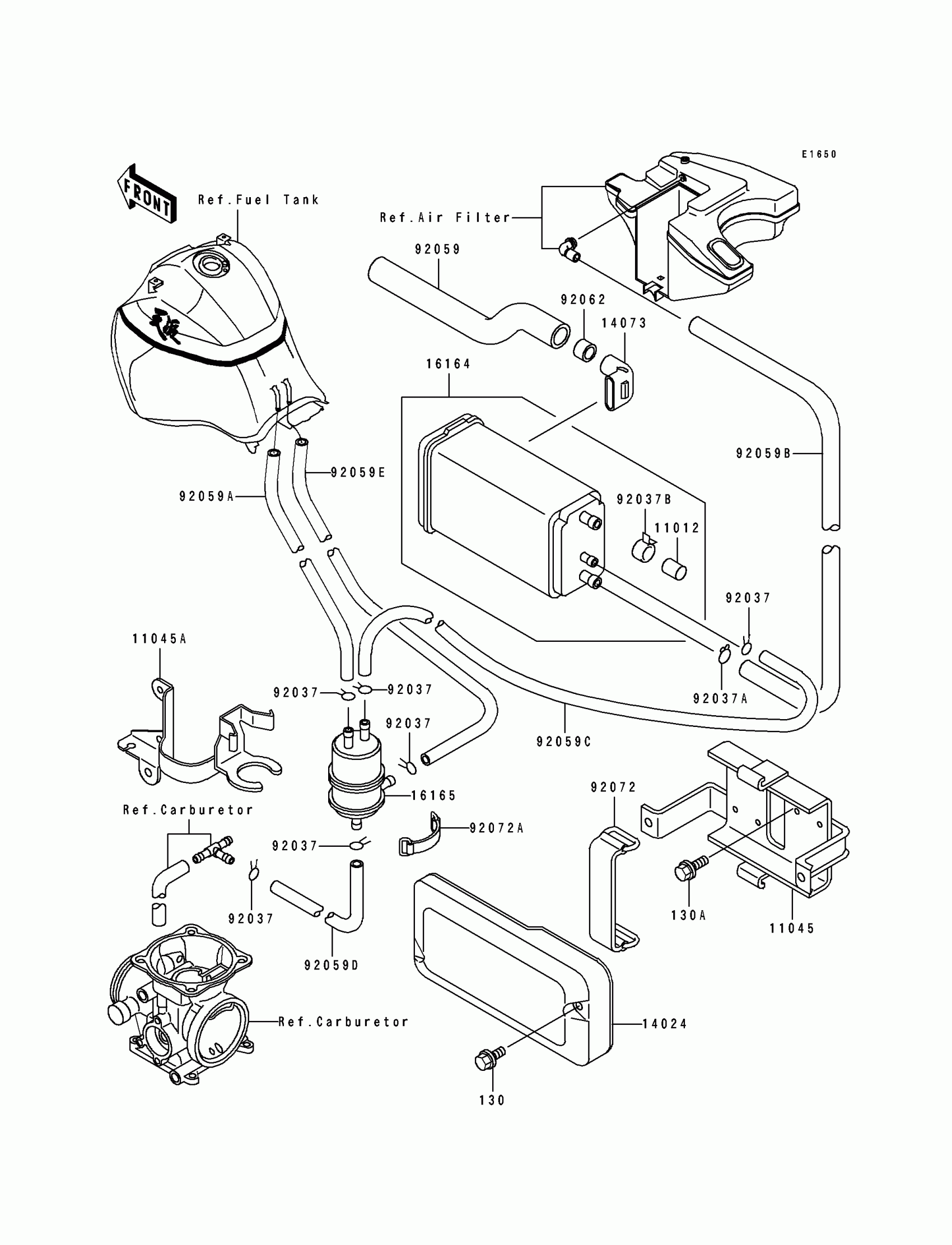

1990 Kawasaki Tengai Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

11045

BRACKET,CANISTER

11045-1416

1

$48.28

In stock

11045A

BRACKET,SEPARATOR

11045-1417

1

$40.06

In stock

14024

COVER,CANISTER

14024-1401

1
Out of stock

14073

DUCT,CANISTER

14073-1219

1

$19.29

In stock

16164

CANISTER

16164-1054

1

$132.79

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037B

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92059

TUBE,14X20X200

92059-1800

1

$19.07

In stock

92059A

TUBE,5X9X890,BLUE

92059-1801

1

$32.75

In stock

92059B

TUBE,7X12X770,GREEN

92059-1802

1

$34.92

In stock

92059C

TUBE,5X9X300,RED

92059-1803

1

$32.75

In stock

92059D

TUBE,4X9X310,WHITE

92059-1804

1

$15.01

In stock

92059E

TUBE,5X9X400,BLUE

92059-1805

1

$32.75

In stock

92062

NOZZLE,CANISTER

92062-1070

1

$10.64

In stock

92072

BAND,L=90

92072-045

1

$14.14

In stock

92072A

BAND,L=50

92072-066

1

$12.72

In stock

130

BOLT-FLANGED

130C0608

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock
