Description

Price

11044

BRACKET,THROTTLE CABLE

11044-1353

$60.78

13091

HOLDER,NEEDLE JET

13091-1425

$26.26

14024

COVER,MIXING CHAMBER

14025-1890

$79.30

14024A

COVER,AIR CUT VALVE

14025-1903

$59.59

15001B

CARBURETOR-ASSY

15001-1473

Unavailable

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

$19.49

16009A

NEEDLE-JET,N74C

16009-1537

Unavailable

16012

CAP-STARTER PLUNGER

16012-1055

$22.24

16014A

SCREW-PILOT AIR

16014-1061

$29.68

16016

PLUNGER

16016-1057

$56.92

16017

JET-NEEDLE,#6

16017-1254

Unavailable

16021

SCREW-THROTTLE STOP

16021-1109

$44.52

16030

VALVE-FLOAT

16030-1057

$41.75

16031

FLOAT

16031-1056

$47.31

35011

STAY,AIR CUT VALVE

35011-1232

$38.17

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

43028A

DIAPHRAGM,VALVE

43028-1062

$187.76

49006

BOOT,STARTER PLUNGER

49006-1165

$9.68

92005A

FITTING,L-TYPE

92005-1120

$25.36

92009

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

92009A

SCREW,5X10

92009-1365

$5.61

92022

WASHER,PLAIN

92022-1003

$3.29

92022A

WASHER,THROTTLE STOP SCREW

92022-1587

$3.81

92037

CLAMP,FLOAT VALVE

16044-007

$6.04

92037A

CLAMP,OVER FLOW PIPE

92037-134

$11.03

92037B

CLAMP,TUBE

92037-1477

$3.29

92037C

CLAMP,TUBE

92037-1531

$4.18

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O

92055-1053

$3.24

92055B

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92055C

RING-O

92055-1245

$4.23

92055D

RING-O

92055-1246

$3.43

92059A

TUBE,6.5X9.5X430

92059-1727

$31.15

92059B

TUBE,5X9X220

92059-1836

$24.51

92059C

TUBE,6.5X11.5X170

92059-1837

$34.01

92059D

TUBE,3.5X6.5X390

92059-1838

Unavailable

92063

JET-MAIN,#140

92063-1013

$10.71

92063A

JET-MAIN,#142

92063-1016

$13.39

92063B

JET-MAIN,#145

92063-1017

$10.71

92063E

JET-MAIN,#148

92063-1324

$13.39

92063F

JET-MAIN,#150

92063-1330

$13.39

92064A

JET-PILOT,#40

92064-1108

$12.84

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,DIAPHRAGM VALVE

92081-1718

$26.00

92081B

SPRING,AIR CUT VALVE

92081-1719

$12.05

92081C

SPRING,PLUNGER

92081-1720

$9.85

92081D

SPRING,THROTTLE STOP SCREW

92081-1721

$12.36

223

SCREW-PAN-WS-CROS,4X10

223C0410

$0.63

223A

SCREW-PAN-WS-CROS,4X16

223C0416

$3.14

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable

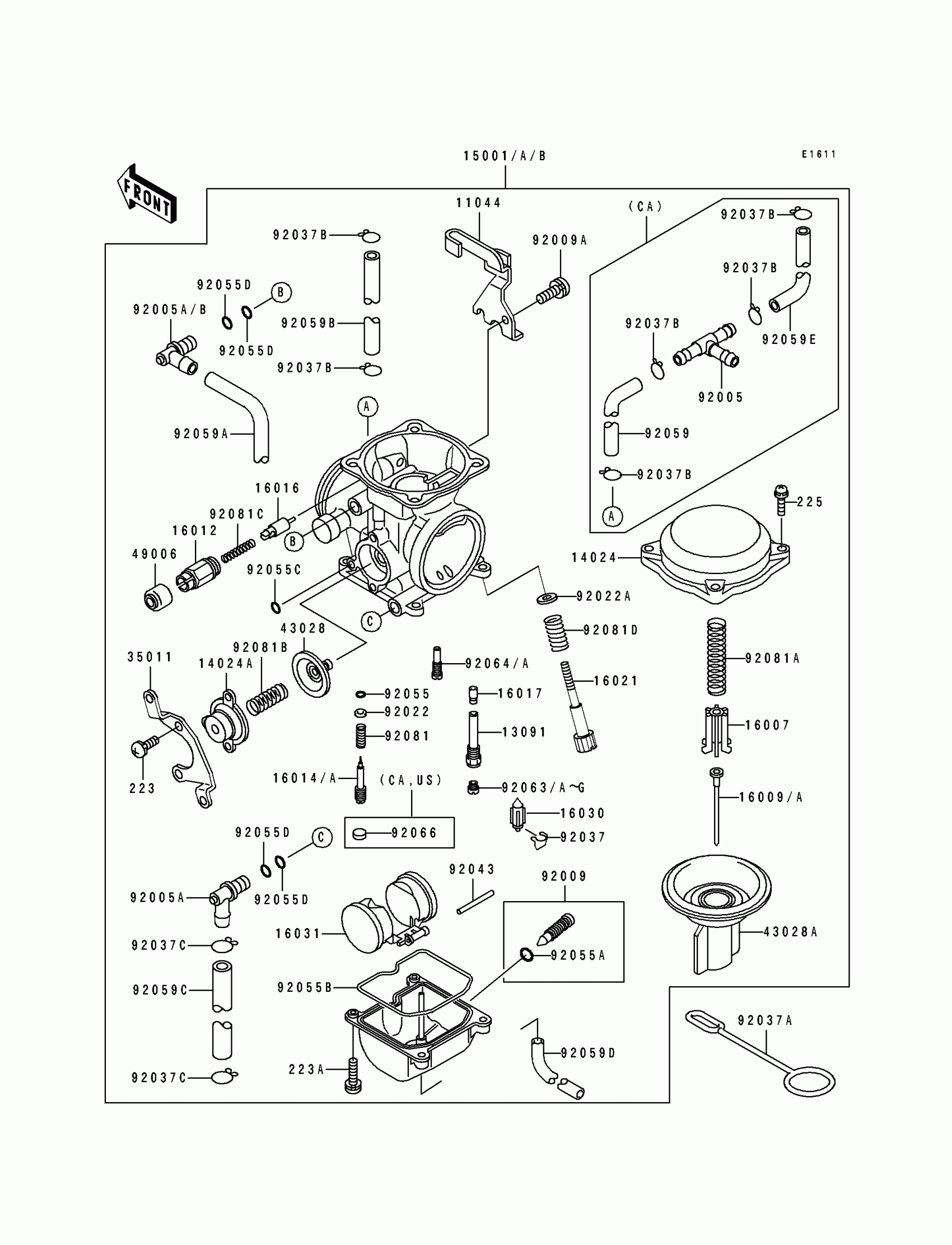

Kawasaki Tengai Carburetor Diagram

BRACKET,THROTTLE CABLE

HOLDER,NEEDLE JET

COVER,MIXING CHAMBER

COVER,AIR CUT VALVE

CARBURETOR-ASSY

SEAT-SPRING,DIAPHRAGM VALVE

NEEDLE-JET,N74C

CAP-STARTER PLUNGER

SCREW-PILOT AIR

PLUNGER

JET-NEEDLE,#6

SCREW-THROTTLE STOP

VALVE-FLOAT

FLOAT

STAY,AIR CUT VALVE

DIAPHRAGM,5.9MM,AIR CUT VALVE

DIAPHRAGM,VALVE

BOOT,STARTER PLUNGER

FITTING,L-TYPE

SCREW,DRAIN,M6X1.0

SCREW,5X10

WASHER,PLAIN

WASHER,THROTTLE STOP SCREW

CLAMP,FLOAT VALVE

CLAMP,OVER FLOW PIPE

CLAMP,TUBE

CLAMP,TUBE

PIN,FLOAT

RING-O,PILOT ADJUST

RING-O

RING-O,FLOAT CHAMBER

RING-O

RING-O

TUBE,6.5X9.5X430

TUBE,5X9X220

TUBE,6.5X11.5X170

TUBE,3.5X6.5X390

JET-MAIN,#140

JET-MAIN,#142

JET-MAIN,#145

JET-MAIN,#148

JET-MAIN,#150

JET-PILOT,#40

SPRING,PILOT ADJUST SCREW

SPRING,DIAPHRAGM VALVE

SPRING,AIR CUT VALVE

SPRING,PLUNGER

SPRING,THROTTLE STOP SCREW

SCREW-PAN-WS-CROS,4X10

SCREW-PAN-WS-CROS,4X16

SCREW-PAN-WSP-CROS,4X18
