1984 Kawasaki Tecate Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1984 Kawasaki Tecate, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

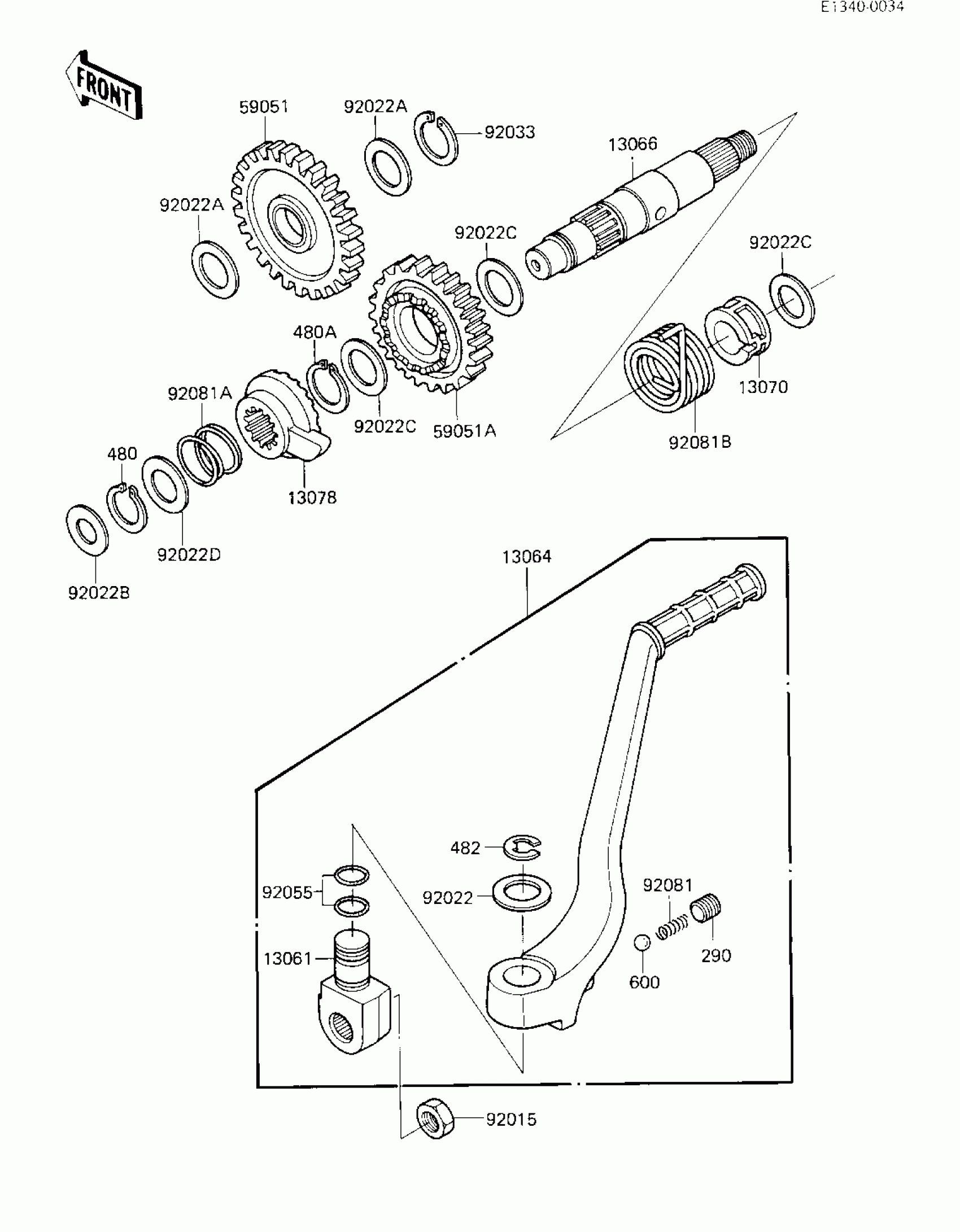

1984 Kawasaki Tecate Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,KICK PEDAL

13061-1055

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

13064-1047

1
Out of stock

13066

SHAFT-KICK

13066-1026

1
Out of stock

13070

GUIDE,KICK SPRING

13070-1063

1
Out of stock

13078

RATCHET

13078-1061

1
Out of stock

59051

IDLE GEAR, KICKSTRTE

59051-1022

1
Out of stock

59051A

GEAR-SPUR,KICKSTARTE

59051-1051

1
Out of stock

92015

NUT,12MM

92015-1001

1
Out of stock

92022

WASHER,15.2X20X1

92022-1019

1
Out of stock

92022A

WASHER,20.5X25.5X0.5

92022-252

1
Out of stock

92022B

WASHER,12.3X20X0.5

92022-269

1
Out of stock

92022C

WASHER,18.3X22X0.5

92022-271

1
Out of stock

92022D

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92033

RING-SNAP,18MM

92033-029

1
Out of stock

92055

"O" RING,11.5MM

92055-072

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92081A

SPRING,RATCHET

92081-122

1
Out of stock

92081B

SPRING,KICKSTARTER

92081-1253

1
Out of stock

290

SCREW, 8X16

290Q0816

1
Out of stock

480

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock

480A

CIRCLIP-TYPE-C,18MM

480J1800

1
Out of stock

482

CIR CLIP

482K0100

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock
