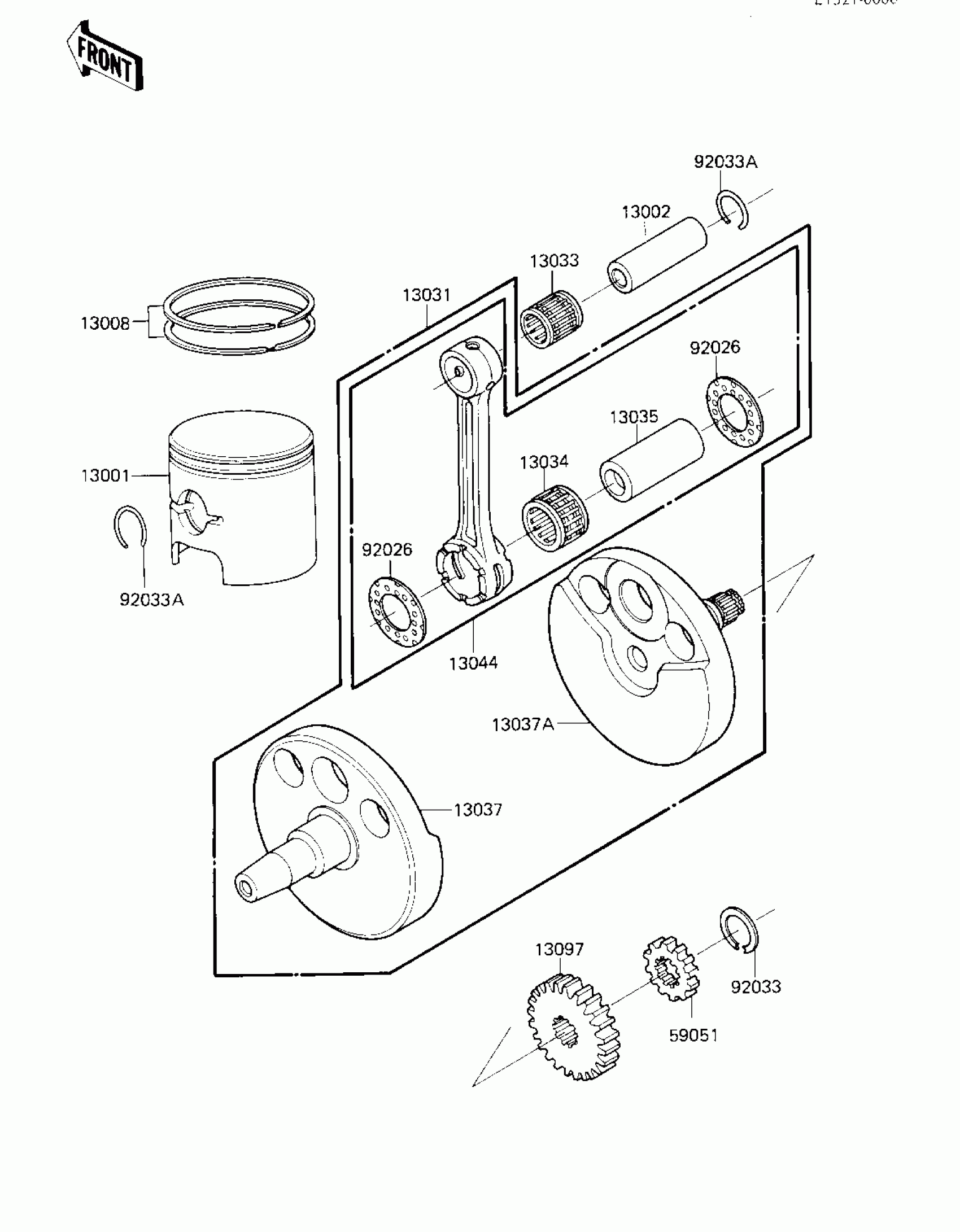

Kawasaki Tecate CRANKSHAFT/PISTON ('84 A1) Diagram

Description

Price

13001

PISTON,STD

13001-1039

Unavailable

13002

PIN-PISTON

13002-017

Unavailable

13008

RING SET,STD

13008-5026

Unavailable

13031

CRANKSHAFT-COMP

13031-1189

Unavailable

13033

BEARING-SMALL END

13033-1010

$20.40

13034

BEARING-BIG END

13034-1034

Unavailable

13035

PIN,CRANK

13035-034

$86.76

13037

CRANKSHAFT

13037-1097

Unavailable

13037A

CRANKSHAFT,RH

13037-1158

Unavailable

13044

SET-CONNECTING ROD

13044-5045

Unavailable

13097

GEAR-PRIMARY SPUR,18T

13097-1084

Unavailable

59051

GEAR-SPUR,WATER PUMP,

59051-1049

Unavailable

92026

SPACER

92026-1241

$9.20

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033A

CIRCLIP-PISTON PIN

92036-015

$3.77
