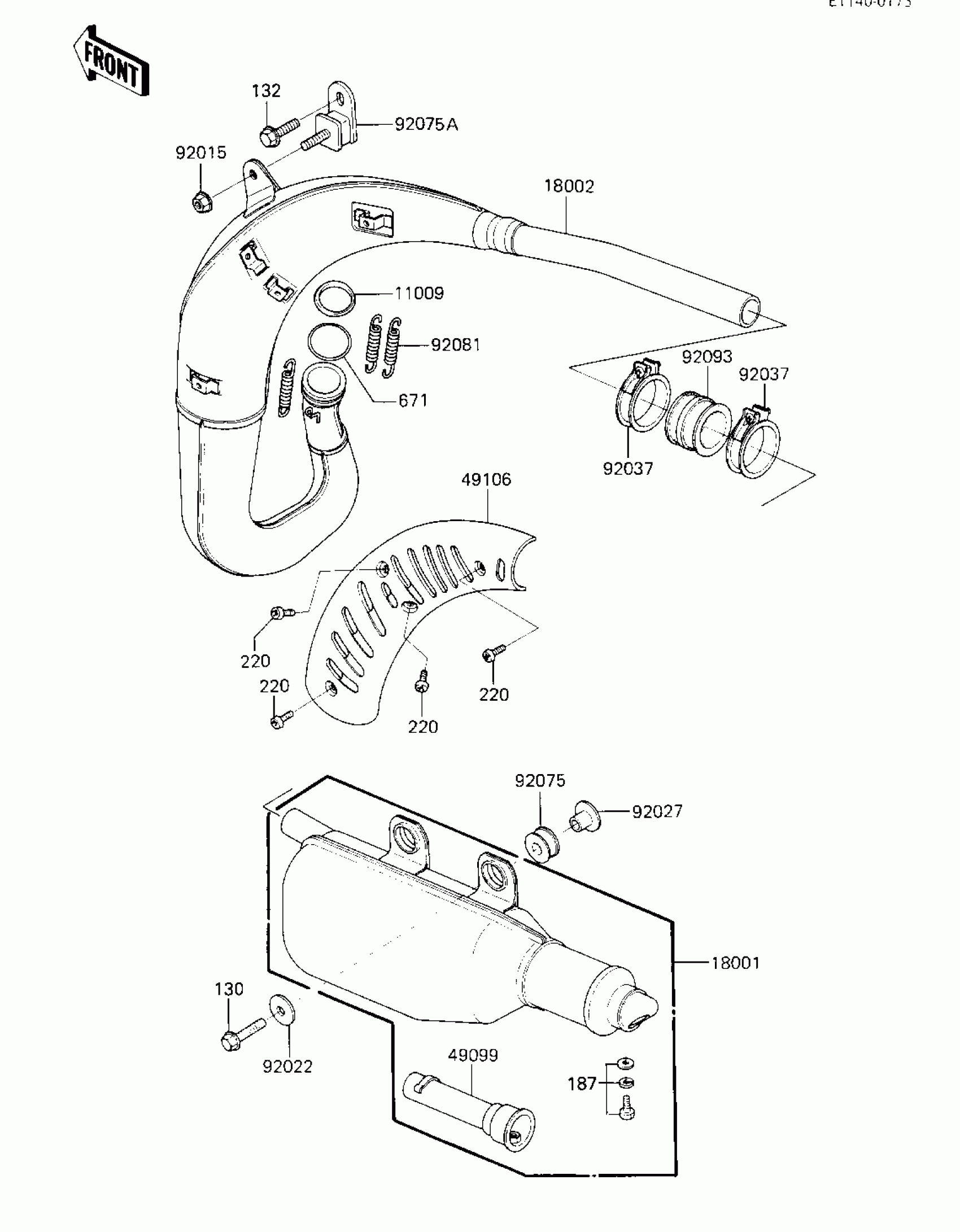

Kawasaki Tecate MUFFLER ('84 A1) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE

11009-1253

Unavailable

18001

MUFFLER,F.BLACK

18001-1412

$279.49

18002

BODY-COMP-MUFFLER,BLA

18002-1545

$285.62

49099

BAFFLE-PIPE MUFFLER

49099-1221

Unavailable

49106

COVER-MUFFLER

49106-1051

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,8.5X35X2.3

92022-298

Unavailable

92027

COLLAR,L=16.3

92027-1672

$7.10

92037

CLAMP,CARBURETOR,40MM

92037-1129

$7.30

92075

DAMPER,MUFFLER

92075-1196

Unavailable

92075A

DAMPER,MUFFLER

92075-1891

$29.07

92081

SPRING

92081-1526

$8.94

92093

SEAL,MUFFLER

92093-1085

Unavailable

130

BOLT,FLANGED,8X30

130G0830

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

187

BOLT 6X12

187B0612

Unavailable

220

SCREW-PAN-CROS,6X8

220C0608

$1.33

671

O RING,50MM

671E2550

$11.64
