1992 Yamaha TDM850 CA (TDM850DC) Steering Diagram

← All diagrams

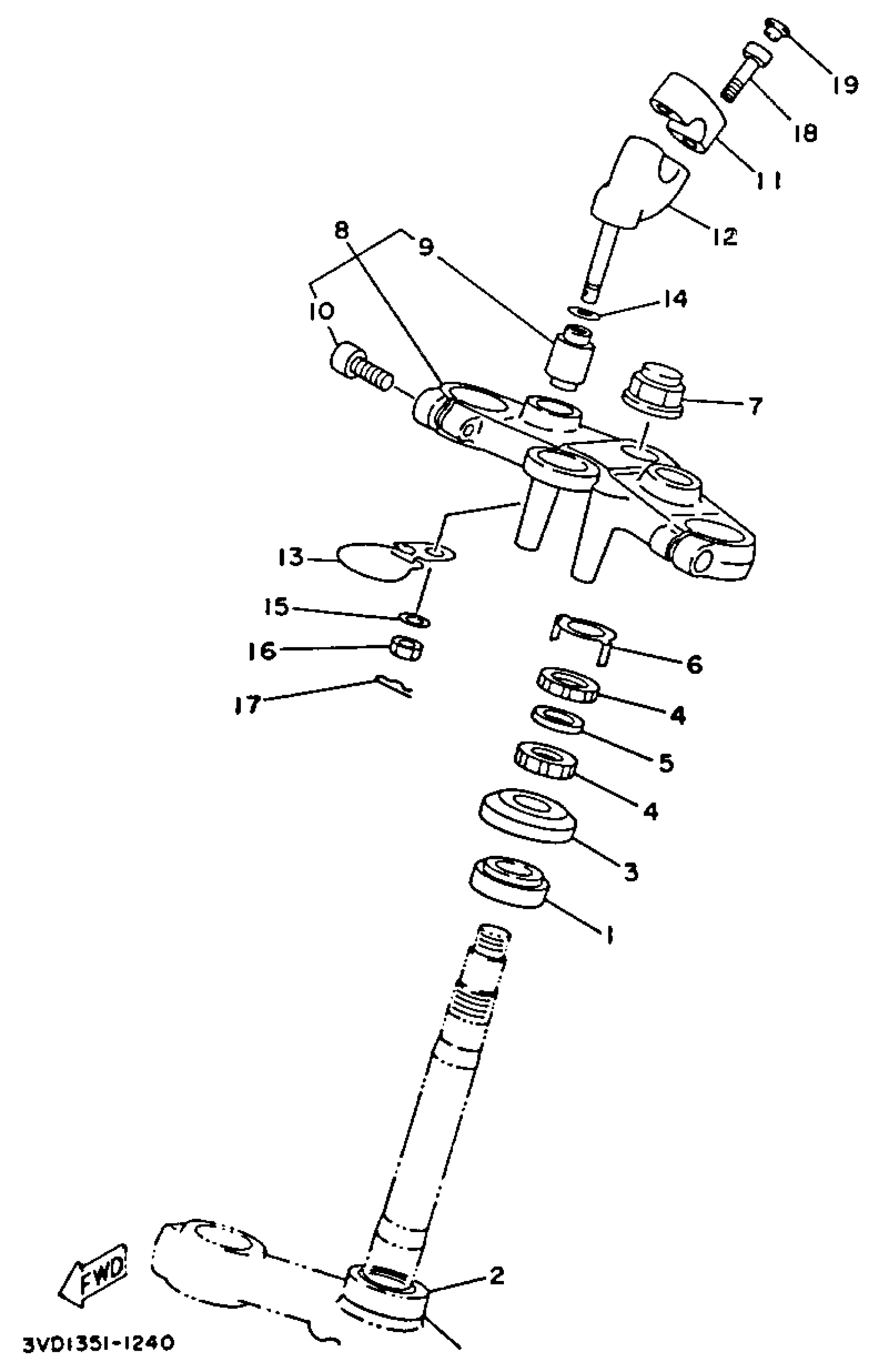

Find the part on the Steering diagram for your 1992 Yamaha TDM850 CA (TDM850DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha TDM850 CA (TDM850DC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

3

COVER, BALL RACE 2

1W1-23416-00-00

—
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

WASHER, PLATE (26H)

90202-26142-00

1
Out of stock

6

WASHER, SPECIAL

26H-23418-01-00

1
Out of stock

7

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

8

CROWN, HANDLE

3VD-W2341-01-00

1
Out of stock

9

HOLDER, DAMPER

5A8-23434-01-00

—
Out of stock

10

BOLT, SOCKET

91317-08030-00

1
Out of stock

11

HOLDER, HANDLE UPR

3VD-23441-00-00

1
Out of stock

12

HOLDER, HANDLE LWR

3VD-23442-00-00

1
Out of stock

13

GUIDE, CABLE

3VD-23389-00-00

1
Out of stock

14

WASHER, PLATE (3J6)

90201-100A1-00

1
Out of stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock

16

NUT (682)

95380-10700-00

1
Out of stock

17

CLIP 136253750000

90468-12006-00

—
Out of stock

18

BOLT, SOCKET

91317-08030-00

1
Out of stock

19

CAP, BOLT (371,447)

341-23469-00-00

—
Out of stock
