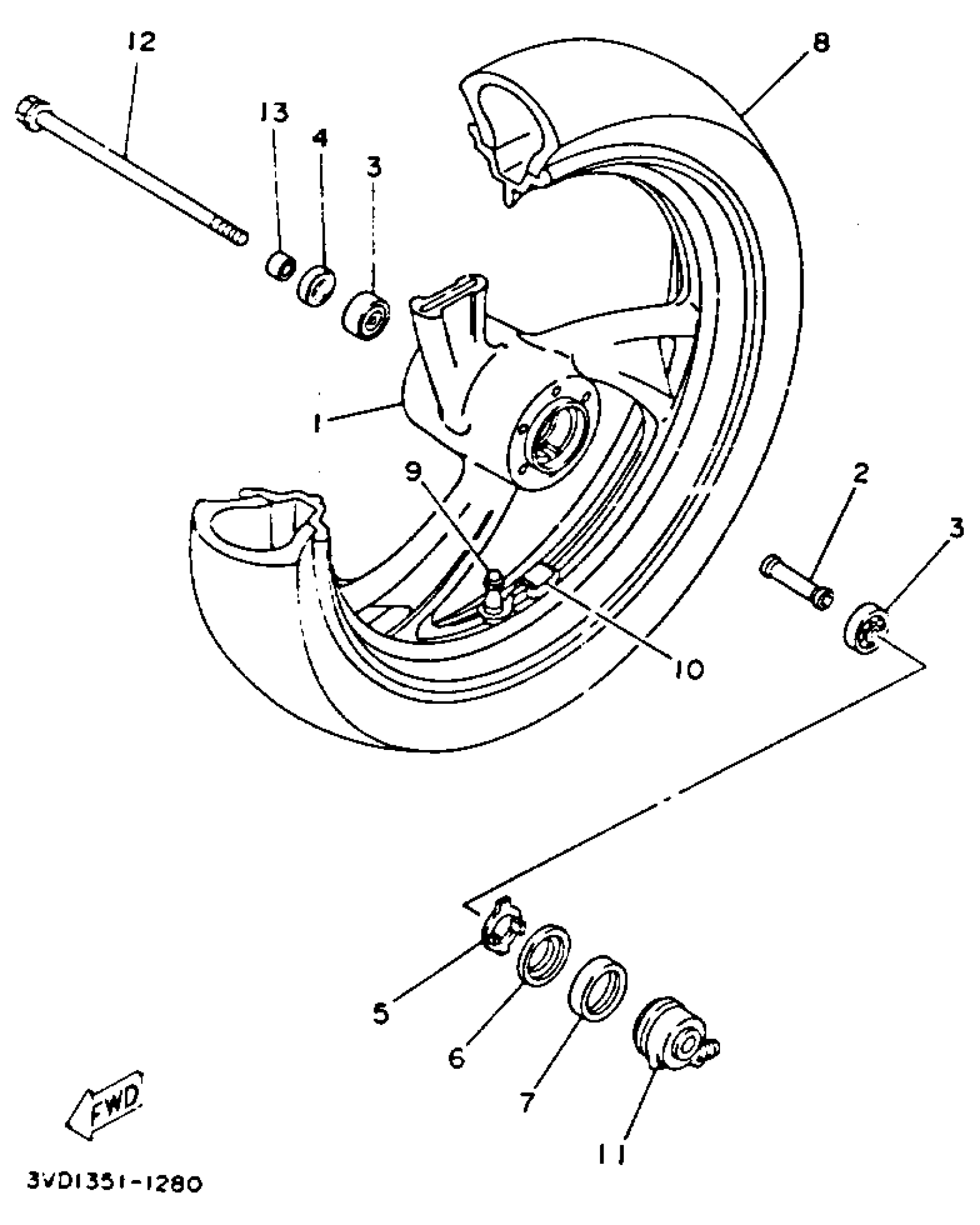

Yamaha TDM850DC (TDM850 CA) 1992 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,CAST FRONT

3VD-25168-00-WG

Unavailable

2

SPACER

90560-17233-00

Unavailable

3

BEARING(4HM)

93306-30317-00

$32.86

4

OIL SEAL (28X47X7-102)

93102-28022-00

$12.04

5

CLUTCH, METER (371,447)

341-25149-00-00

$6.28

6

RETAINER, CLUTCH (371,447)

341-25846-00-00

$6.94

7

OIL SEAL (45X56X6)

93105-45017-00

$10.97

8

110/80-18 K505F DL (110/80-17 58H K505F)

94111-187X0-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$13.78

10

BALANCER, WHEEL

5MT-25398-00-00

$14.81

10

BALANCER, WHEEL

5MT-25398-10-00

$14.65

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

GEAR UNIT ASSY

4TR-25190-20-00

$108.65

12

AXLE, WHEEL

3GM-25181-03-00

Unavailable

13

COLLAR(2GV)

90387-177R1-00

$10.32
