1992 Yamaha TDM850 CA (TDM850DC) Front Fork Diagram

← All diagrams

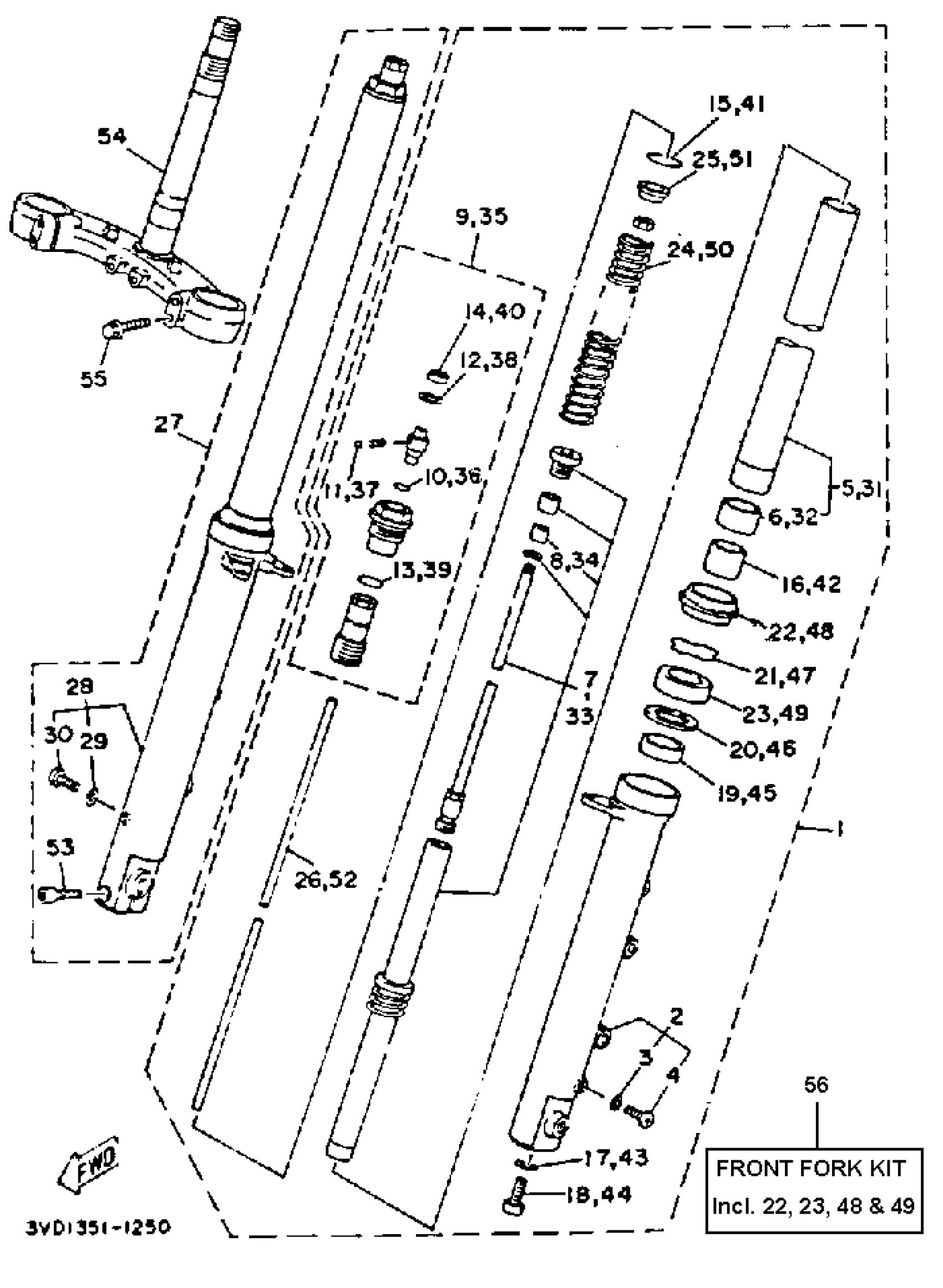

Find the part on the Front Fork diagram for your 1992 Yamaha TDM850 CA (TDM850DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha TDM850 CA (TDM850DC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L (L.H)

3VD-23102-01-00

1
Out of stock

2

. OUTER TUBE LH (LH)

3VD-23106-00-00

1
Out of stock

3

GASKET

5U8-23129-00-00

1
Out of stock

4

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

5

. INNER TUBE 1

3VD-23110-00-00

1
Out of stock

6

METAL, SLIDE 2

3VD-23135-10-00

1
Out of stock

7

. DAMPER ASSEMBLY

3VD-2330E-00-00

1
Out of stock

8

.. PISTON, FRNT FORK

3VD-2312K-00-00

1
Out of stock

9

. BOLT, CAP

3VD-23111-00-00

1
Out of stock

10

O-RING (1J7)

93210-09350-00

1

$5.82

In stock

11

BALL

93503-16003-00

1

$2.14

In stock

12

.. CIRCLIP

3VD-23183-00-00

1
Out of stock

13

.. O-RING

93210-18N01-00

1
Out of stock

14

.. CAP

3VD-2319U-00-00

1
Out of stock

15

O-RING(3VD)

93210-35N02-00

1
Out of stock

16

. SPINDLE, TAPER

3VD-23173-00-00

1
Out of stock

17

GASKET (5R6)

90430-10171-00

—

$3.17

In stock

18

BOLT,SOCKET

91314-10025-00

—

$6.78

In stock

19

METAL, SLIDE 1

3VD-23125-10-00

—
Out of stock

20

GUIDE, COVER UPPER

3VD-23115-00-00

—
Out of stock

21

CLIP, OIL SEAL

3VD-23156-00-00

—
Out of stock

22

SEAL, DUST

3VD-23144-00-00

—
Out of stock

23

OIL SEAL

5VU-23145-00-00

—
Out of stock

23

OIL SEAL

5VU-23145-00-00

—
Out of stock

24

. SPRING, FRONT FORK

3VD-23141-01-00

1
Out of stock

25

. SEAT, SPRING UPPER

3VD-23142-00-00

1
Out of stock

26

. PLUNGER

3VD-2318Y-00-00

1
Out of stock

27

FRONT FORK ASSEMBLY R (R.H)

3VD-23103-01-00

1
Out of stock

28

. OUTER TUBE RH (RH)

3VD-23107-00-00

1
Out of stock

29

GASKET

5U8-23129-00-00

1
Out of stock

30

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

31

. INNER TUBE 1

3VD-23110-00-00

1
Out of stock

32

METAL, SLIDE 2

3VD-23135-10-00

1
Out of stock

33

. DAMPER ASSEMBLY

3VD-2330E-00-00

1
Out of stock

34

.. PISTON, FRNT FORK

3VD-2312K-00-00

1
Out of stock

35

. BOLT, CAP

3VD-23111-00-00

1
Out of stock

36

O-RING (1J7)

93210-09350-00

1

$5.82

In stock

37

BALL

93503-16003-00

1

$2.14

In stock

38

.. CIRCLIP

3VD-23183-00-00

1
Out of stock

39

.. O-RING

93210-18N01-00

1
Out of stock

40

.. CAP

3VD-2319U-00-00

1
Out of stock

41

O-RING(3VD)

93210-35N02-00

1
Out of stock

42

. SPINDLE, TAPER

3VD-23173-00-00

1
Out of stock

43

GASKET (5R6)

90430-10171-00

—

$3.17

In stock

44

BOLT,SOCKET

91314-10025-00

—

$6.78

In stock

45

METAL, SLIDE 1

3VD-23125-10-00

—
Out of stock

46

GUIDE, COVER UPPER

3VD-23115-00-00

—
Out of stock

47

CLIP, OIL SEAL

3VD-23156-00-00

—
Out of stock

48

SEAL, DUST

3VD-23144-00-00

—
Out of stock

49

OIL SEAL

5VU-23145-00-00

—
Out of stock

49

OIL SEAL

5VU-23145-00-00

—
Out of stock

50

. SPRING, FRONT FORK

3VD-23141-01-00

1
Out of stock

51

. SEAT, SPRING UPPER

3VD-23142-00-00

1
Out of stock

52

. PLUNGER

3VD-2318Y-00-00

1
Out of stock

53

BOLT,SOCKET

91314-08040-00

—
Out of stock

54

UNDER BRACKET

3VD-23340-00-00

1
Out of stock

55

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

56

FORK SEAL KIT (TWO FORKS)

5VU-W003B-00-00

—
Out of stock
