1992 Yamaha TDM850 CA (TDM850DC) Meter Diagram

← All diagrams

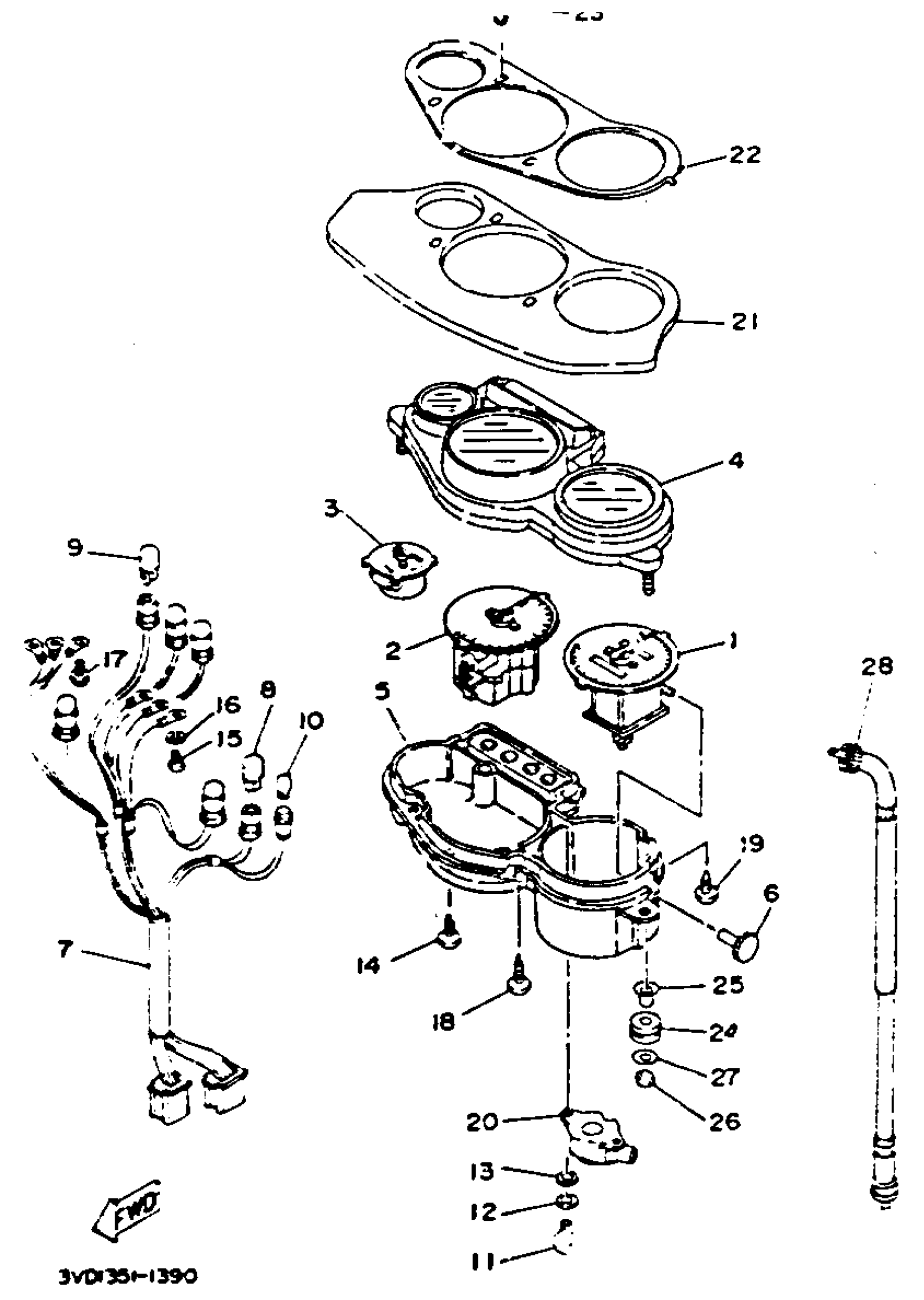

Find the part on the Meter diagram for your 1992 Yamaha TDM850 CA (TDM850DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha TDM850 CA (TDM850DC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

3VD-83570-10-00

1
Out of stock

2

TACHOMETER ASSEMBLY

3VD-83540-00-00

1
Out of stock

3

WATER TEMPERATURE ASSY

4TX-83590-00-00

1
Out of stock

4

COVER, METER

3GM-83559-00-00

1
Out of stock

5

CASE, INNER

3VD-8353H-00-00

1
Out of stock

6

KNOB, TRIP METER

2GH-83578-00-00

1
Out of stock

7

SOCKET CORD ASSEMBLY

3VD-83509-00-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

10

BULB (T6.5 12V-3W)

42X-83517-00-00

1

$6.48

In stock

11

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

SCREW, TAPPING(3GM)

90167-04057-00

—
Out of stock

15

SCREW PAN HEAD

98580-03010-00

1

$6.68

In stock

16

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

17

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

18

SCREW, TAPPING (15A)

90164-04008-00

—

$6.91

In stock

19

. SCREW, TAPPING

90167-03058-00

1
Out of stock

20

SOCKET CORD ASSY

4FM-83520-00-00

—
Out of stock

21

DAMPER

3VD-83513-00-00

1
Out of stock

22

PANEL, METER

3VD-83611-00-00

1
Out of stock

23

CLIP

3GM-83525-00-00

1
Out of stock

24

GROMET (3X3)

90480-14229-00

—

$6.17

In stock

25

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

26

NUT(6TA)

95317-06600-00

—

$2.69

In stock

27

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

28

SPEEDOMETER CABLE ASSY

1FK-83550-11-00

—
Out of stock
