1992 Yamaha TDM850 CA (TDM850DC) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1992 Yamaha TDM850 CA (TDM850DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

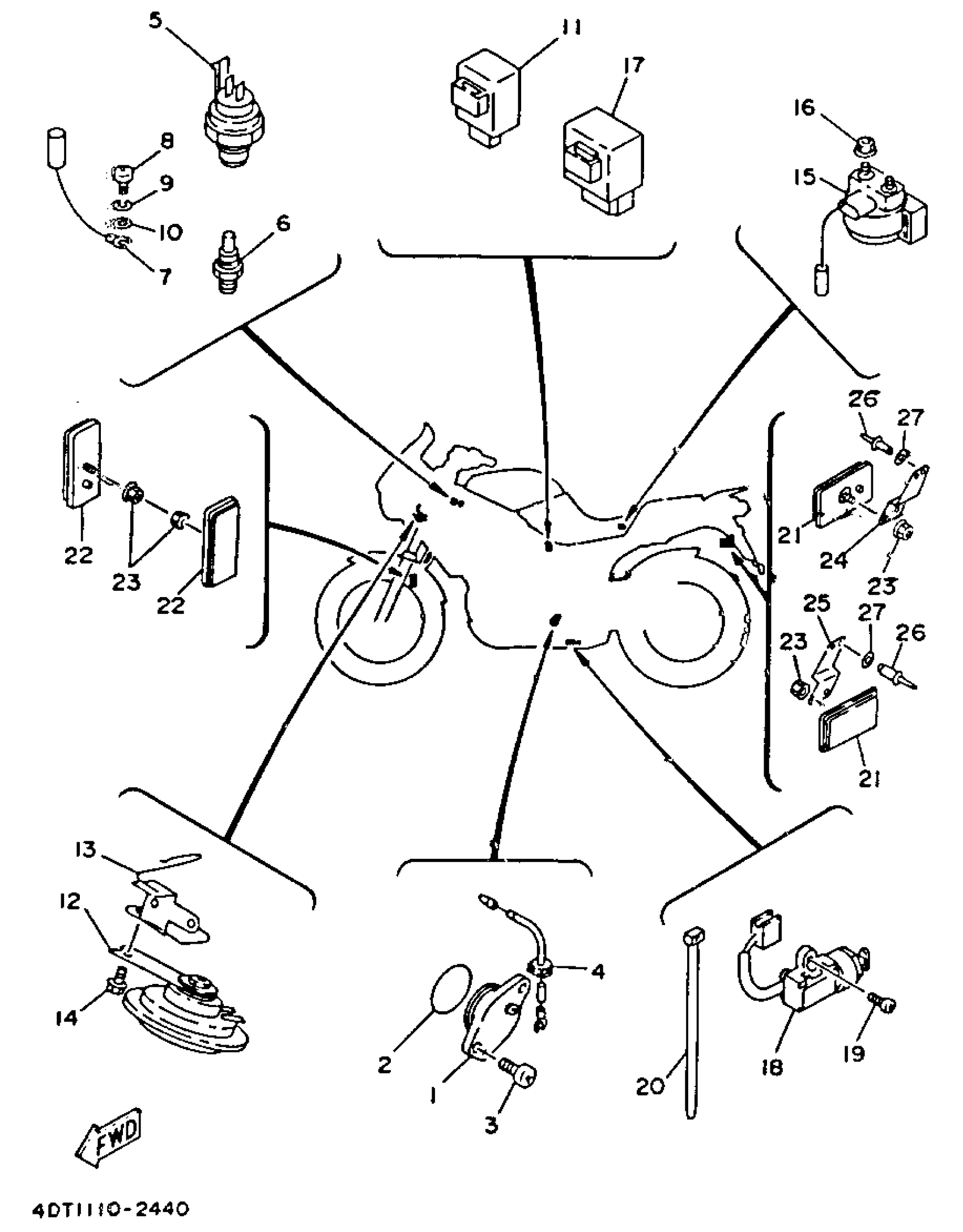

1992 Yamaha TDM850 CA (TDM850DC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NEUTRAL SWITCH ASSY

1AE-82540-00-00

1
Out of stock

2

O-RING (371)

93210-29196-00

1
Out of stock

3

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

4

WIRE, LEAD

3LD-82541-00-00

—
Out of stock

5

THERMO SWITCH ASSY

3LN-82560-01-00

—
Out of stock

6

THERMO UNIT

11H-83591-00-00

1
Out of stock

7

WIRE,EARTH LEAD 1

4NK-83354-00-00

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1
Out of stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

11

FLASHER RELAY ASSY

3YA-83350-00-00

—
Out of stock

11

FLASHER RELAY ASSY

3YA-83350-00-00

—
Out of stock

12

HORN

2KG-83371-00-00

—
Out of stock

13

STAY

3VD-2317E-00-00

1
Out of stock

14

BOLT, FLANGE

95817-06010-00

1
Out of stock

15

STARTER RELAY ASSY

36Y-81940-00-00

—
Out of stock

16

NUT, FLANGE(7NB)

95780-06500-00

—
Out of stock

17

RELAY ASSY

2UJ-81950-02-00

—
Out of stock

18

SWITCH, SIDE STAND

3LD-82566-51-00

—
Out of stock

19

SCREW, PAN HEAD

98507-05014-00

—
Out of stock

20

BAND

1UA-82591-00-00

—
Out of stock

21

REAR REFLECTOR ASSY

4KM-85130-00-00

—
Out of stock

22

FRONT REFLECTOR ASSY

11H-85110-01-00

—
Out of stock

23

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock

24

BRACKET, REAR STAY

2LJ-21688-00-00

1
Out of stock

25

BRACKET, REAR STAY 2

2LJ-21689-00-00

1
Out of stock

26

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

27

WASHER, PLATE(26H)

90201-044H9-00

—
Out of stock
