1992 Yamaha TDM850 CA (TDM850DC) Headlight Diagram

← All diagrams

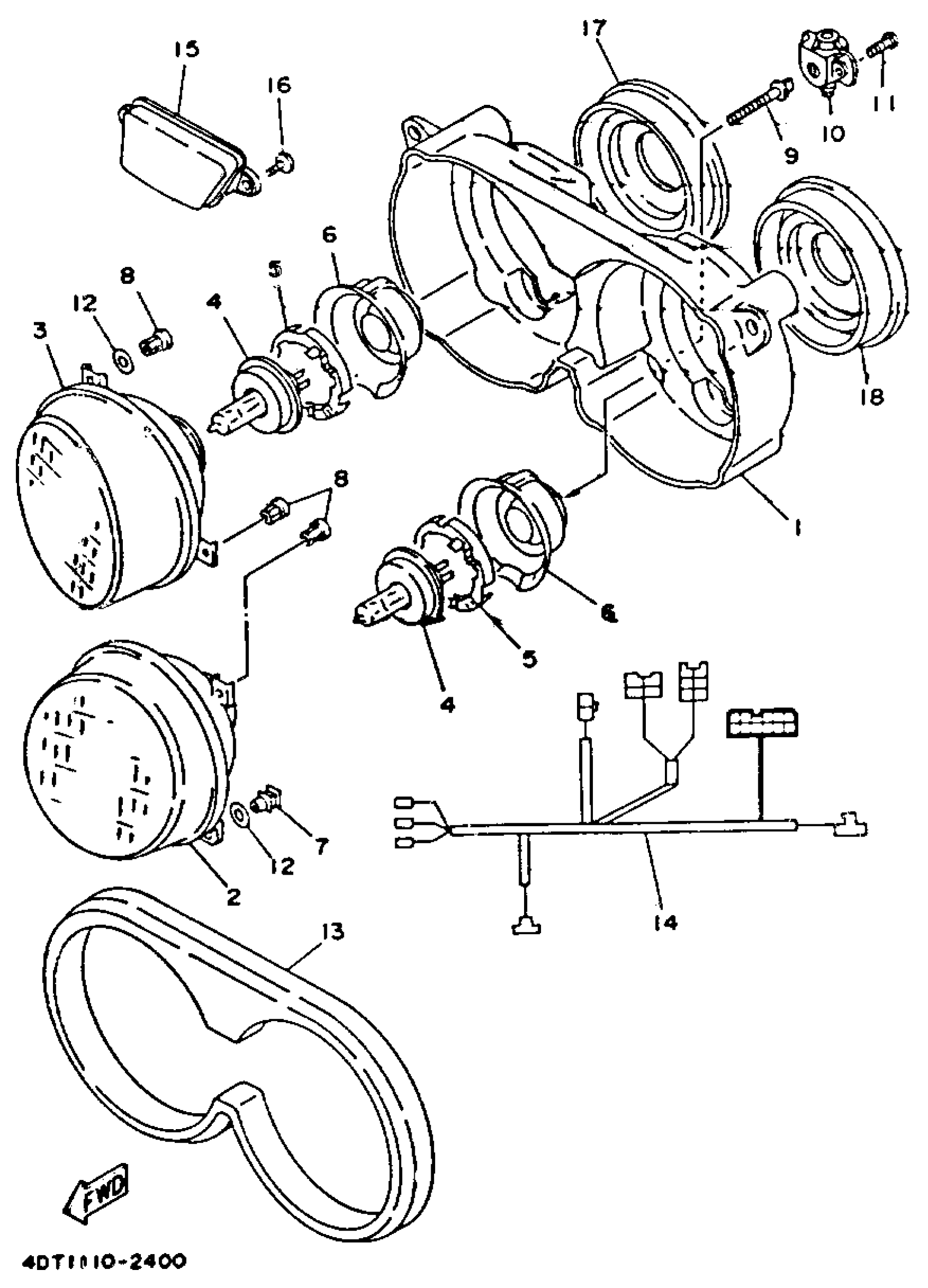

Find the part on the Headlight diagram for your 1992 Yamaha TDM850 CA (TDM850DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha TDM850 CA (TDM850DC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

3VD-84330-00-00

1
Out of stock

2

LENS ASSEMBLY

3VD-84320-50-00

1
Out of stock

3

LENS ASSEMBLY

3VD-8432A-50-00

1
Out of stock

4

BULB, HEADLIGHT

1ML-84314-00-XX

1
Out of stock

5

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

6

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

7

HOLDER

3AJ-8431U-00-00

1
Out of stock

8

. NUT, ADJUSTING

51L-84334-00-00

1
Out of stock

9

SCREW, RIM ADJUSTING

2AX-84331-00-00

1
Out of stock

10

GEAR UNIT ASY

3LD-8430M-00-00

1
Out of stock

11

SCREW, TAPPING(4HP)

97707-40616-00

1

$1.23

In stock

12

WASHER, PLAIN

3GM-84344-00-00

1
Out of stock

13

DAMPER, HEADLIGHT 1

3HE-84366-00-00

1
Out of stock

14

CORD, HEADLIGHT

3VD-84359-10-00

1
Out of stock

15

CAP

4DT-84378-00-P0

1
Out of stock

16

SCREW, TRUSS TAP.

97707-50012-00

—

$3.15

In stock

17

COVER, SOCKET

2LA-84397-00-00

1
Out of stock

18

COVER, SOCKET

2LA-84397-10-00

1
Out of stock
