1970 Yamaha TD2 (TD2) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1970 Yamaha TD2 (TD2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

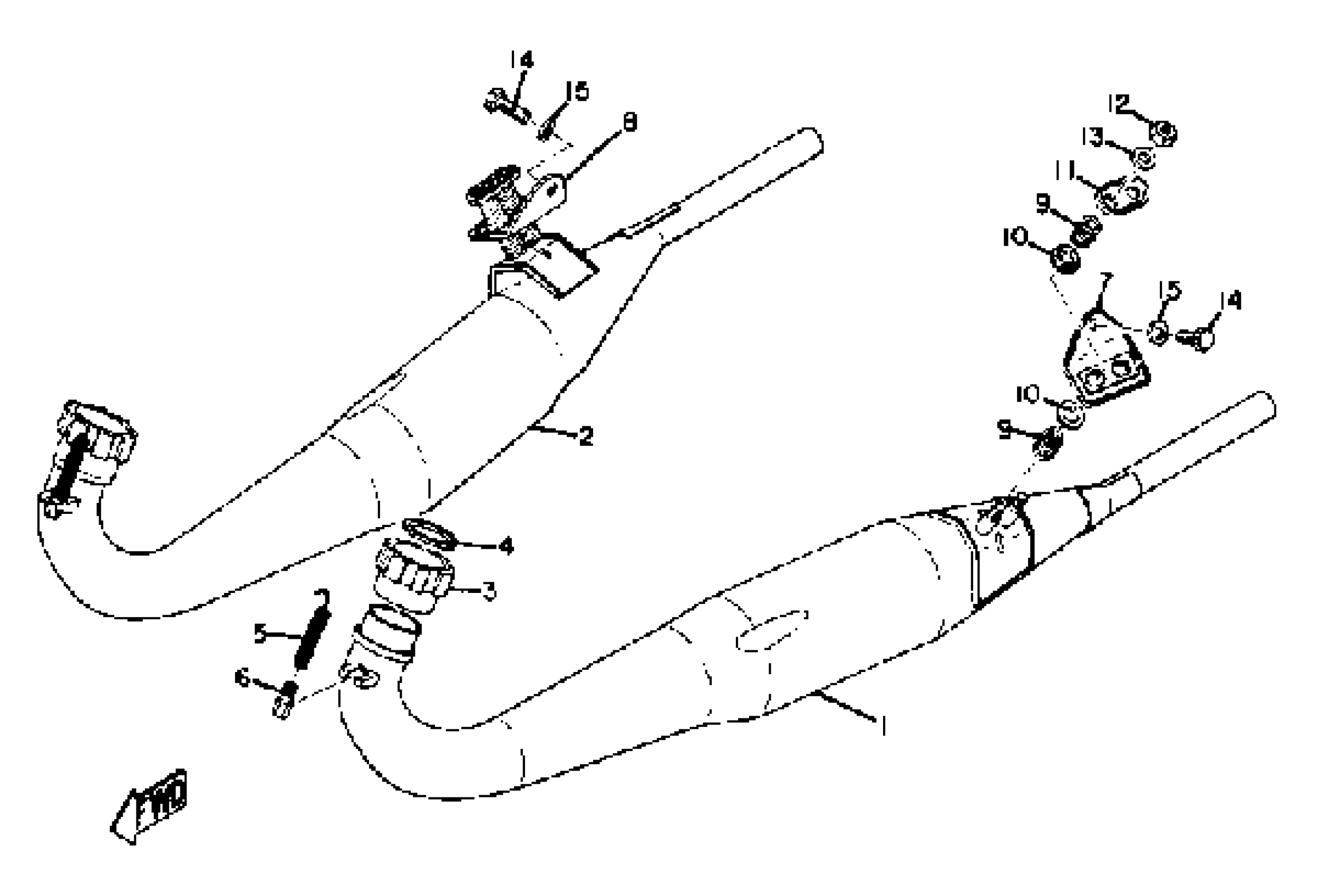

1970 Yamaha TD2 (TD2) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

240-14610-00-00

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

29514610-00-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

24014620-00-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

295-14620-00-00

1
Out of stock

3

NUT,RING

240-14612-00-00

1
Out of stock

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

5

SPRING,TENSION

90507-20012-00

1
Out of stock

6

BOLT

90109-08304-00

1
Out of stock

7

STAY, MUFFLER 2

240-14772-01-33

1
Out of stock

7

STAY, MUFFLER 2

295-14772-00-00

1
Out of stock

8

STAY 5

240-14782-01-33

1
Out of stock

8

UNAVSTAY 5AILABLE IN PRICE BOOK (2) (R.H.)

295-14782-00-00

1
Out of stock

9

SPRING, COMPRESSION

90501-16106-00

1
Out of stock

10

SPACER

90560-12111-00

1
Out of stock

11

PLATE, MUFFLER

240-14793-00-00

1
Out of stock

12

NUT, U

95617-08100-00

—

$6.78

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

BOLT,FLAT HD.DRILL

95201-08015-00

1
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
