1970 Yamaha TD2 (TD2) Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1970 Yamaha TD2 (TD2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

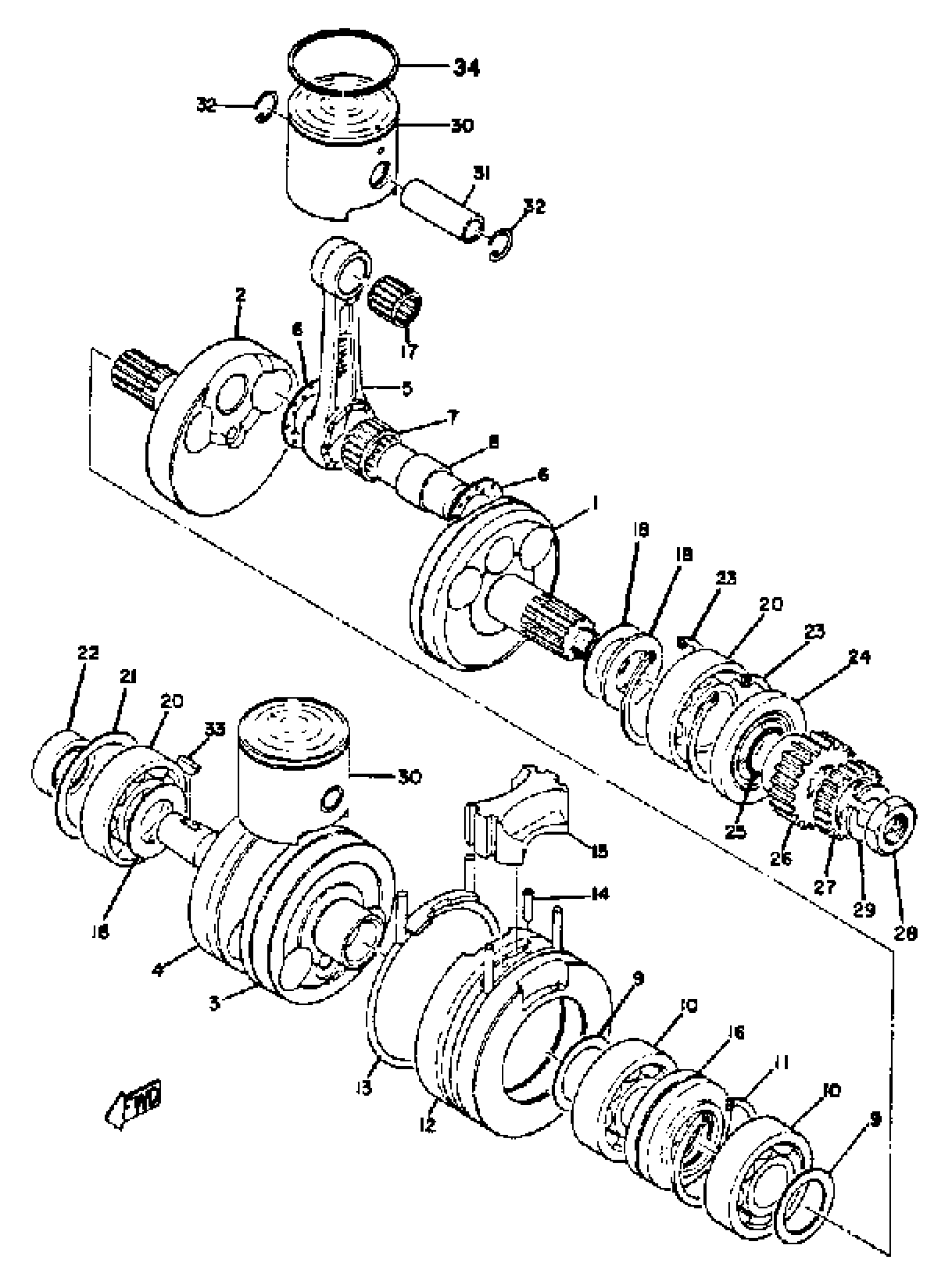

1970 Yamaha TD2 (TD2) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK 1

(170-11412-00-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(295-11400-00-00)

1
Out of stock

2

CRANK 2

(156-11422-01-00)

1
Out of stock

3

CRANK 3

(156-11432-01-00)

1
Out of stock

4

CRANK 4

(170-11442-00-00)

1
Out of stock

5

ROD,CONNECTING

246-11651-00-00

1
Out of stock

5

ROD, CONNECTING

(295-11651-00-00)

1
Out of stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

6

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

7

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

—

$39.02

In stock

7

BEARING, CYLINDER.#10

(93310-42417-00)

1
Out of stock

8

PIN, CRANK 1

(156-11681-00-00)

1
Out of stock

8

PIN, CRANK 1

(295-11681-00-00)

1
Out of stock

9

. SHIM, CRANK 4 (25-44-03)

156-11564-00-03

1
Out of stock

9

. SHIM, CRANK 4 (25-44-05)

156-11564-00-04

1
Out of stock

9

. SHIM, CRANK 4

156-11564-00-06

1
Out of stock

9

. SHIM, CRANK 4

156-11564-00-06

1
Out of stock

10

BEARING (5X5)

93306-20627-00

—

$66.08

In stock

11

CIRCLIP(MF1)

99009-62500-00

—

$6.23

In stock

12

COVER, CRANK

(246-11511-00-00)

1
Out of stock

13

SEAL, CRANK COVER

(246-11512-00-00)

1
Out of stock

14

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

15

METAL, FILLER

(246-11541-00-00)

1
Out of stock

16

SEAL, LABYRINTH 1

(145-11515-01-00)

1
Out of stock

17

BEARING, NEEDLE (24X)

93310-216L2-00

—

$28.54

In stock

18

SHIM, CRANK 2

(156-11562-00-04)

1
Out of stock

18

SHIM, CRANK 2

(156-11562-00-05)

1
Out of stock

18

SHIM, CRANK 2

(156-11562-00-07)

1
Out of stock

19

SHIM, CRANK 1

(156-11561-00-00)

1
Out of stock

20

BEARING (8R9)

93306-30536-00

—

$29.83

In stock

21

SHIM,CRANK 3

156-11563-00-00

—

$15.35

In stock

22

OIL SEAL (20X36X10-733)

93103-20110-00

—
Out of stock

23

CIRCLIP(MF1)

99009-62500-00

—

$6.23

In stock

24

OIL SEAL, SW-TYPE

(93103-35015-00)

1
Out of stock

25

O-RING (169)

93210-25071-00

—

$7.51

In stock

26

GEAR, PRI DRIVE

(177-16111-01-00)

1
Out of stock

27

GEAR, DRIVE

(170-13188-00-00)

1
Out of stock

28

NUT

90170-16425-00

—
Out of stock

29

NUT

90170-16425-00

—
Out of stock

29

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

30

PISTON STD (STD)

240-11631-00-96

1
Out of stock

31

PIN, PISTON

137-11633-10-00

—

$21.92

In stock

32

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

33

KEY,WOODRUFF

90280-04005-00

1
Out of stock

34

RING, PISTON STD

240-11611-00-00

1
Out of stock
