1970 Yamaha TD2 (TD2) Crankcase Diagram

← All diagrams

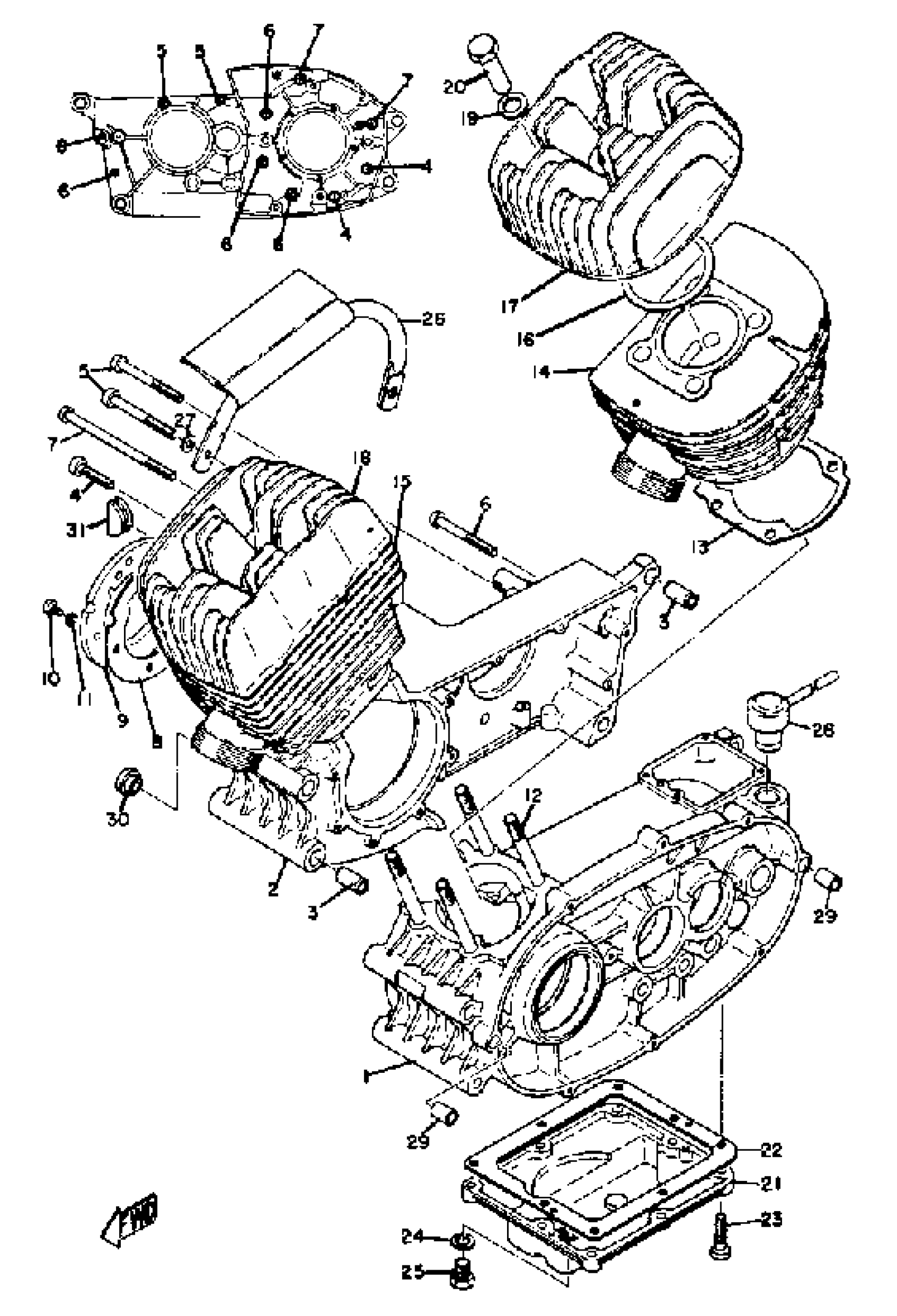

Find the part on the Crankcase diagram for your 1970 Yamaha TD2 (TD2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TD2 (TD2) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

17

HEAD, CYLINDER 1

(240-11111-00-00)

1
Out of stock

18

HEAD, CYLINDER 2

(240-11121-00-00)

1
Out of stock

19

WASHER PLATE 278111750000

90201-12362-00

1

$6.42

In stock

20

NUT (3V6)

90179-08303-00

1

$7.14

In stock

21

COVER, SHIFTER 1

(177-15419-00-00)

1
Out of stock

22

GASKET, SHFTR COVER

(204-15459-00-00)

1
Out of stock

23

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

24

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

25

PLUG,STRAIGHT SCRW

90340-14033-00

1
Out of stock

26

COVER, CHAIN CASE

(240-15418-00-00)

1
Out of stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

BREATHER

(204-15371-00-00)

1
Out of stock

29

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

30

GROMMET

(90480-12011-00)

1
Out of stock

31

GROMMET

(177-15367-00-00)

1
Out of stock
