1977 Suzuki TC125 Wiring Harness Diagram

← All diagrams

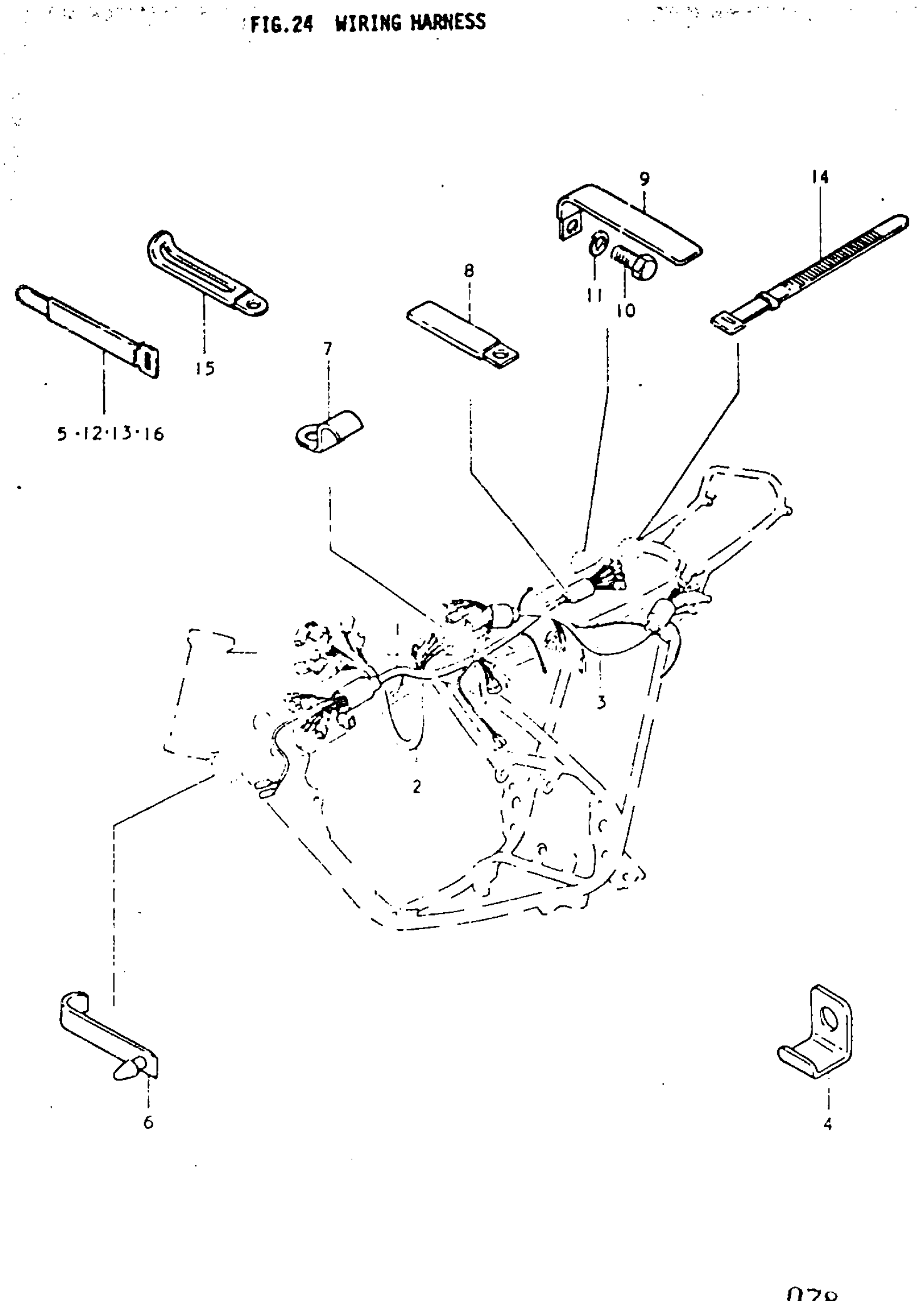

Find the part on the Wiring Harness diagram for your 1977 Suzuki TC125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC125 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS | K

36610-28611

1
Out of stock

2

WIRING HARNESS (1) | L; TO 36610-25622 This part replaces 36610-25621.

36610-25626

1
Out of stock

2

WIRING HARNESS NO.1 | M; TO 36610-25624 WITH 36811-27610

36610-25622

—
Out of stock

2

WIRING HARNESS (1) | A; TO 36610-25625 This part replaces 36610-25624.

36610-25626

1
Out of stock

2

WIRING HARNESS NO.1 | B; FROM 36610-25625

36610-25626

1
Out of stock

3

WIRING HARNESS NO.2 | L

36620-28400

—
Out of stock

3

WIRING HARNESS NO.2 | M; TO 36620-28403

36620-28402

—
Out of stock

3

WIRING HARNESS NO.2 | A; TO 36620-28404 WITH 32800-19061 This part replaces 36620-28403.

36620-28405

1
Out of stock

3

WIRING HARNESS NO.2 | B

36620-28405

1
Out of stock

4

STAY, HARNESS CLAMP | K

36652-28000

—
Out of stock

5

CLAMP, WIRING HARNESS | K; L:21

09407-21301

—
Out of stock

6

BAND, HARNESS | K

33881-18400

—
Out of stock

7

CLAMP, HARNESS A | K; TO 09403-12304 This part replaces 09403-10305.

09403-12304

—
Out of stock

7

CLAMP, HARNESS A | L,M,A,B

09403-12304

—
Out of stock

8

CLAMP | K; L:100 This part replaces 09403-00069.

09404-06037

1
Out of stock

9

CLAMP(L:80) | L; L:80 TO 09404-06415 This part replaces 09404-06405.

09404-06036

1
Out of stock

9

CLAMP(L:80) | M,A This part replaces 09404-06404.

09404-06036

1
Out of stock

9

CLAMP(L:80) | K,B; L:60 FROM 09403-00058 This part replaces 09404-06415.

09404-06036

1
Out of stock

10

BOLT | K This part replaces 01112-06128.

01500-06127

1
Out of stock

11

1

$2.28

In stock

12

CLAMP | K; TO 09407-11302 This part replaces 09407-09301.

09407-09303

2
Out of stock

13

CLAMP, HARNESS D | K; TO 09407-11302

09407-09302

—
Out of stock

13

CLAMP | L,MA,B This part replaces 09407-11302.

09407-18302

2
Out of stock

14

CLAMP, HARNESS E | K,LM,A,B

09407-12402

2
Out of stock

15

CLAMP | L,M,A,B; L:45 This part replaces 09404-06402.

09404-06039

1
Out of stock

16

CLAMP(L:250) | L,M,A,B; L:25 This part replaces 09407-25301.

09407-25302

1
Out of stock
