1977 Suzuki TC125 Handle Switch LH Diagram

← All diagrams

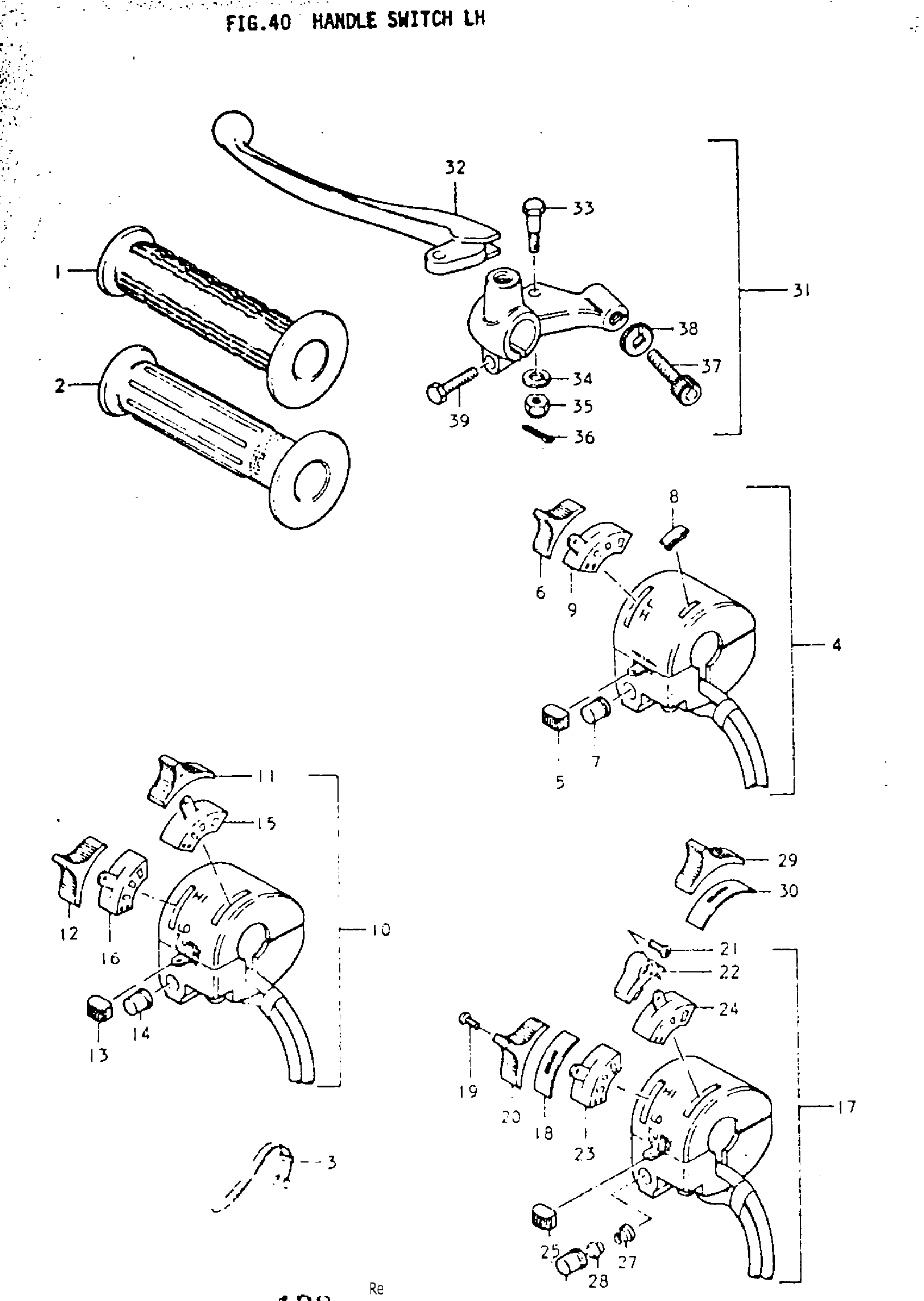

Find the part on the Handle Switch LH diagram for your 1977 Suzuki TC125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC125 Handle Switch LH Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH | K,L,M

57211-15110

1
Out of stock

2

GRIP, LH | A,B

57211-28600

1
Out of stock

3

BAND

09407-12402

2
Out of stock

4

SWITCH ASSY, HANDLE LH | K; Includes Item(s) 5 - 9 This part replaces 57700-28610.

57700-28611

1
Out of stock

5

KNOB, SWITCH | K

57742-28050

1
Out of stock

6

KNOB, DIMMER SWITCH | K; FROM 57712-28050

57712-28051

1
Out of stock

7

BUTTON, HORN | K

57751-28050

1
Out of stock

8

CAP, HANDLE SWITCH | K

57715-28610

1
Out of stock

9

BLOCK, DIMMER SWITCH | K

57353-28050

1
Out of stock

10

SWITCH ASSY, LH | L; TO 57700-28631

57700-28630

—
Out of stock

10

SWITCH ASSY, LH | M; TO 57700-28632; Includes Item(s) 11 - 16

57700-28631

—
Out of stock

11

KNOB, LIGHTING SWITCH | L

57712-28050

—
Out of stock

11

KNOB, LIGHTING SWITCH | M; FROM 57712-28050

57712-28051

1
Out of stock

12

KNOB, DIMMER SWITCH | L,M

57713-28050

1
Out of stock

13

KNOB, TURN SIGNAL SWITCH | L,M

57742-28050

1
Out of stock

14

BUTTON, HORN | L,M

57751-28050

1
Out of stock

15

SLIDING BLOCK, LIGHTING | L,ML,M

57730-28630

1
Out of stock

16

SLIDING BLOCK, DIMMER SWITCH | L; TO 57530-28051L; TO 57530-28051

57530-28050

—
Out of stock

16

SLIDING BLOCK, DIMMER SWITCH | MM

57530-28051

1
Out of stock

17

SWITCH ASSY, HANDLE LH | A,B; Includes Item(s) 18 - 28

37400-28660

1
Out of stock

18

PLATE, DIMMER SWITCH | A,B This part replaces 57719-28050.

37422-28450

1
Out of stock

19

1

$2.28

In stock

20

KNOB, DIMMER | A,B

57713-28050

1
Out of stock

21

SCREW, LIGHTING | A,B

03231-03108

1
Out of stock

22

KNOB, STOP | A,B

37414-28660

1
Out of stock

23

BLOCK, DIMMER | A,B

57530-28051

1
Out of stock

24

BLOCK, LIGHTING | A,B

57730-28631

1
Out of stock

25

KNOB, TURN SIGNAL | A,B

57742-28050

1
Out of stock

26

BUTTON, HORN | A,B

57751-28050

1
Out of stock

27

SPRING | A,B

57761-28050

1
Out of stock

28

PLATE | A,B

37522-28050

1
Out of stock

29

KNOB, LIGHTING | A,B; OPT

57712-28052

1
Out of stock

30

NO DESCRIPTION AVAILABLE | A,B; OPT This part replaces 57714-28051.

37412-28450

1
Out of stock

31

LEVER ASSY, CLUTCH | K,L; TO 57500-18012

57500-18610

—
Out of stock

31

LEVER ASSY, CLUTCH | M,A,B; Includes Item(s) 32 - 39 This part replaces 57500-26012.

57500-30501

1
Out of stock

32

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

1
Out of stock

33

BOLT This part replaces 57431-11010.

57431-11013

1
Out of stock

34

1

$2.28

In stock

35

NUT, PIVOT

57433-11010

1
Out of stock

36

PIN This part replaces 04111-16158.

04111-1620A

1
Out of stock

37

ADJUSTER, CABLE

57441-11010

1
Out of stock

38

NUT, CABLE ADJUSTER

57442-11010

1
Out of stock

39

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

1
Out of stock
