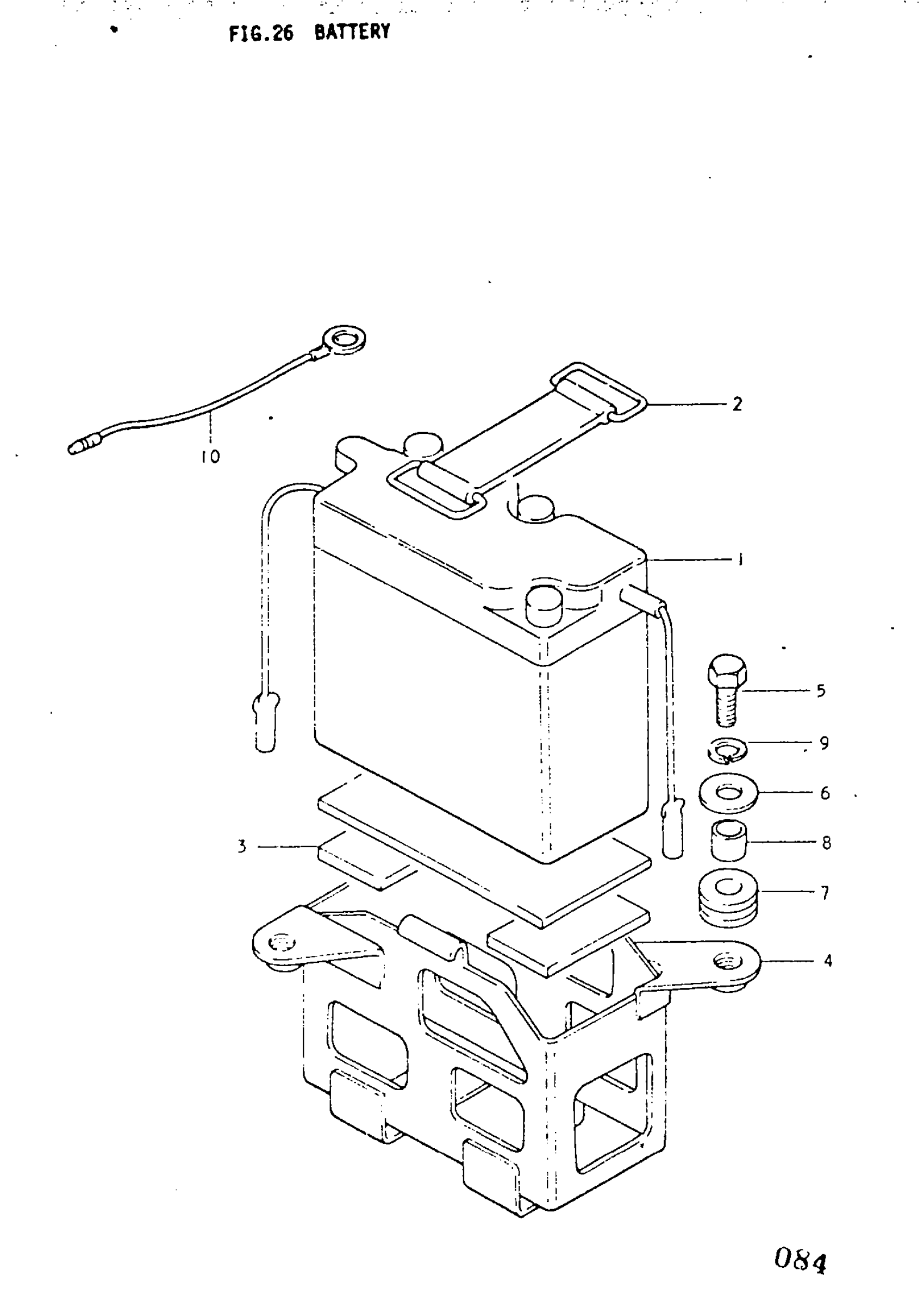

Suzuki TC125 (1977) BATTERY Diagram

#

Description

Price

1

6N4B-2A BATTERY | 6V, 4AH This part replaces 33610-03610.

33610-03611

$85.70

2

BAND, BATTERY

09462-00033

$2.93

3

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

33651-37000

$4.09

4

HOLDER, BATTERY

41540-28001

Unavailable

5

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

6

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.89

7

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

8

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.46

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

10

LEAD WIRE, BATTERY (-) | L,M,A,B

36862-27690

$5.88
