1977 Suzuki TC100 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1977 Suzuki TC100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

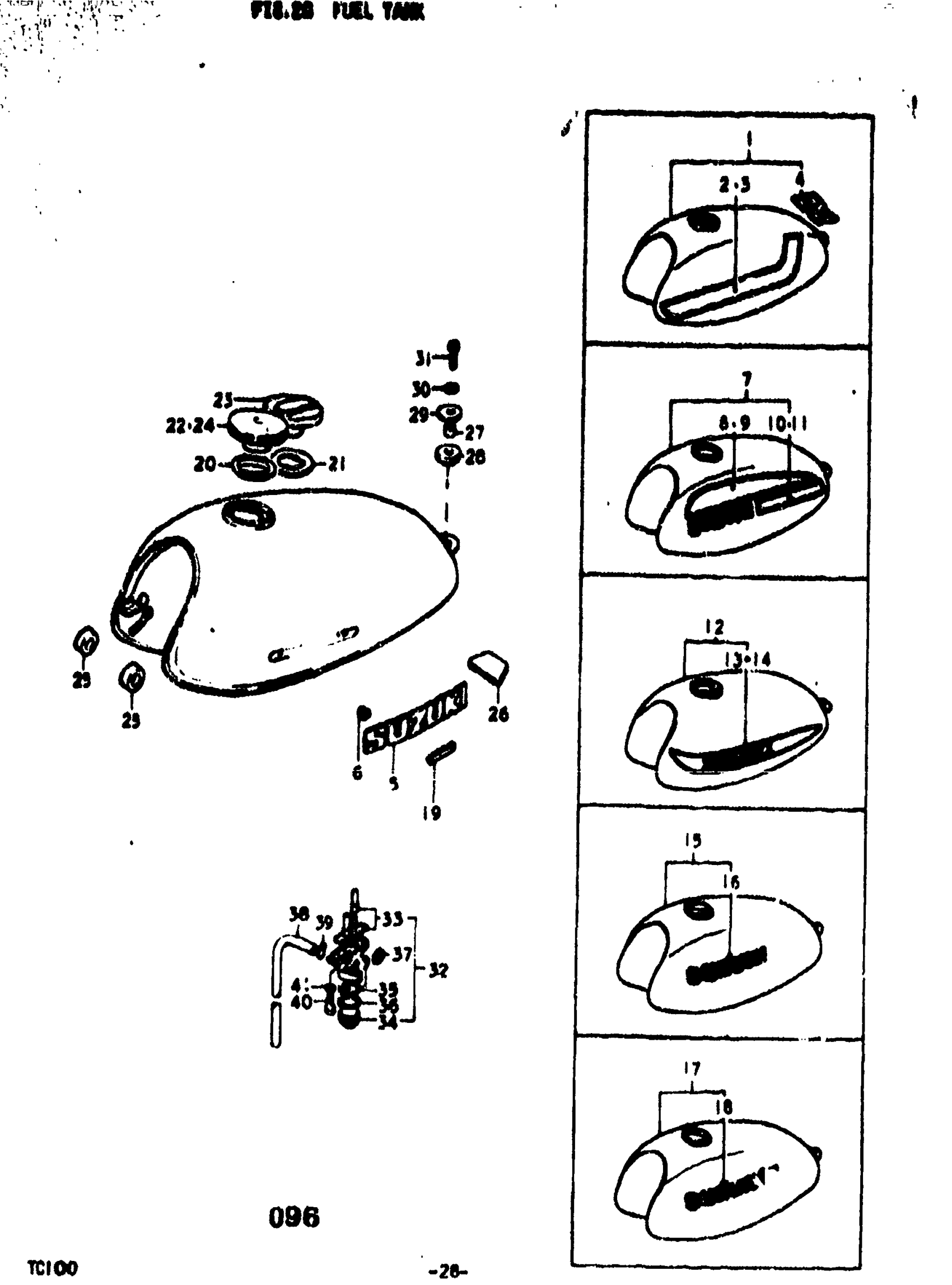

1977 Suzuki TC100 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | K; Includes Item(s) 2 - 4

41100-25400-712

—
Out of stock

2

TAPE, STRIPING LH | K; TO 68100-25840-002

68115-25300-002

—
Out of stock

3

NO DESCRIPTION AVAILABLE | K; TO 68100-25840-002 This part replaces 68125-25300-002.

68100-25840-002

1
Out of stock

4

EMBLEM, CENTER | K

68118-14100-002

1
Out of stock

5

NO DESCRIPTION AVAILABLE | K This part replaces 68111-26600.

68111-27610-019

2
Out of stock

6

NUT | K

09148-04005

4
Out of stock

7

TANK, FUEL TANK | L; Includes Item(s) 8 - 11 This part replaces 44110-25500-215.

44110-25500-737

1
Out of stock

8

TAPE, STRLPING RH | L;TO 6/8100-25650-765

68115-25500-763

—
Out of stock

9

TAPE, STRIPING LH | L; 68100-25650-763

68125-25500-763

—
Out of stock

10

EMBLEM,RH | L; This part replaces 68111-25500-742.

68111-28400-742

1
Out of stock

11

EMBLEM,LH | L This part replaces 68121-25500-742.

68121-28400-742

1
Out of stock

12

TANK, FUEL | M; Includes Item(s) 13 - 14 This part replaces 44110-25620-163.

44110-25631-737

1
Out of stock

13

NO DESCRIPTION AVAILABLE | M; TO 68100-25860-991 This part replaces 68115-25600-991.

68100-25860-991

1
Out of stock

14

NO DESCRIPTION AVAILABLE | M; TO 68100-25860-991 This part replaces 68125-25600-991.

68100-25860-991

1
Out of stock

15

TANK, FUEL | A; Includes Item(s) 16

44110-25631-737

1
Out of stock

16

EMBLEM | A; TO 43111-25610-60K

68111-41001-60K

—
Out of stock

17

TANK, FUEL | S; Includes Item(s) 18

44110-25650-00N

1
Out of stock

18

EMBLEM (BLACK) | S This part replaces 68111-28610-019.

68111-43400-019

2
Out of stock

19

PROTECTOR, CABLE | K,L,M,A

58399-04100

—
Out of stock

20

GASKET, FUEL TANK CAP | K,L

44248-12000

1
Out of stock

21

GASKET, FUEL TANK CAP | M,A,S; USE FOR 44210-23300

85413-70000

1
Out of stock

22

CAP FUEL TANK | K; TO 44210-23300 This part replaces 44210-12000.

44200-23810

1
Out of stock

23

CAP FUEL TANK | L; TO 44210-23300 This part replaces 44210-22700.

44200-23810

1
Out of stock

24

CAP FUEL TANK | M,A,S This part replaces 44210-23300.

44200-23810

1
Out of stock

25

CUSHION, FUEL TANK FRONT | K,L,M,A,S

09329-10005

2
Out of stock

26

CUSHION, FUEL TANK REAR A | K,L,M,A,S

09321-05007

1
Out of stock

27

SPACER, FUEL TANK REAR | 8,8x12x11

09180-08033

1
Out of stock

28

CUSMION, FUEL TANK REAR 5

09320-12013

1
Out of stock

29

WASHER, EXHAUST SUPPORT | K,M,A,B; 8,5x29x1,6 TO 09160-08006 This part replaces 09160-08002.

09160-08135

1
Out of stock

29

WASHER | M; 8,5x29x2

09160-08006

1
Out of stock

30

LOCK WASHER | K,L,M,A

08321-20188

—
Out of stock

31

BOLT This part replaces 01122-08308.

01500-08307

1
Out of stock

32

COCK ASSY FUEL | K,L This part replaces 44300-28070.

44300-28604

1
Out of stock

32

COCK ASSY FUEL | M,A This part replaces 44300-28071.

44300-28604

1
Out of stock

32

COCK ASSY FUEL | B; Includes Item(s) 33 - 37 This part replaces 44300-28600.

44300-28604

1
Out of stock

33

FILTER SET This part replaces 44300-28817.

44300-28818

1
Out of stock

34

CUP | K,L,M,A This part replaces 44347-28070.

44347-28071

1
Out of stock

34

NO DESCRIPTION AVAILABLE | B This part replaces 44347-28600.

44347-28601

1
Out of stock

35

NET, STRAINER | 200

44344-28070

1
Out of stock

36

O-RING This part replaces 44346-28070.

44346-28071

1
Out of stock

37

GASKET,LEVER | M,A,B This part replaces 44341-28070.

44341-28071

1
Out of stock

38

HOSE | L:350 TO 09343-05021 This part replaces 09343-05016.

09352-50005-00B

1
Out of stock

39

CLIP, FUEL HOSE

09401-08401

2
Out of stock

40

SCREW | K,B; TO 09128-06005 This part replaces 09128-06002.

02162-0616B

2
Out of stock

40

SCREW | K,L,M This part replaces 09128-06005.

02162-0616B

2
Out of stock

41

GASKET (5.8X13X1.2) | 6,2x11x1 This part replaces 09168-06010.

09168-06023

2
Out of stock
