1977 Suzuki TC100 AIR Cleaner Diagram

← All diagrams

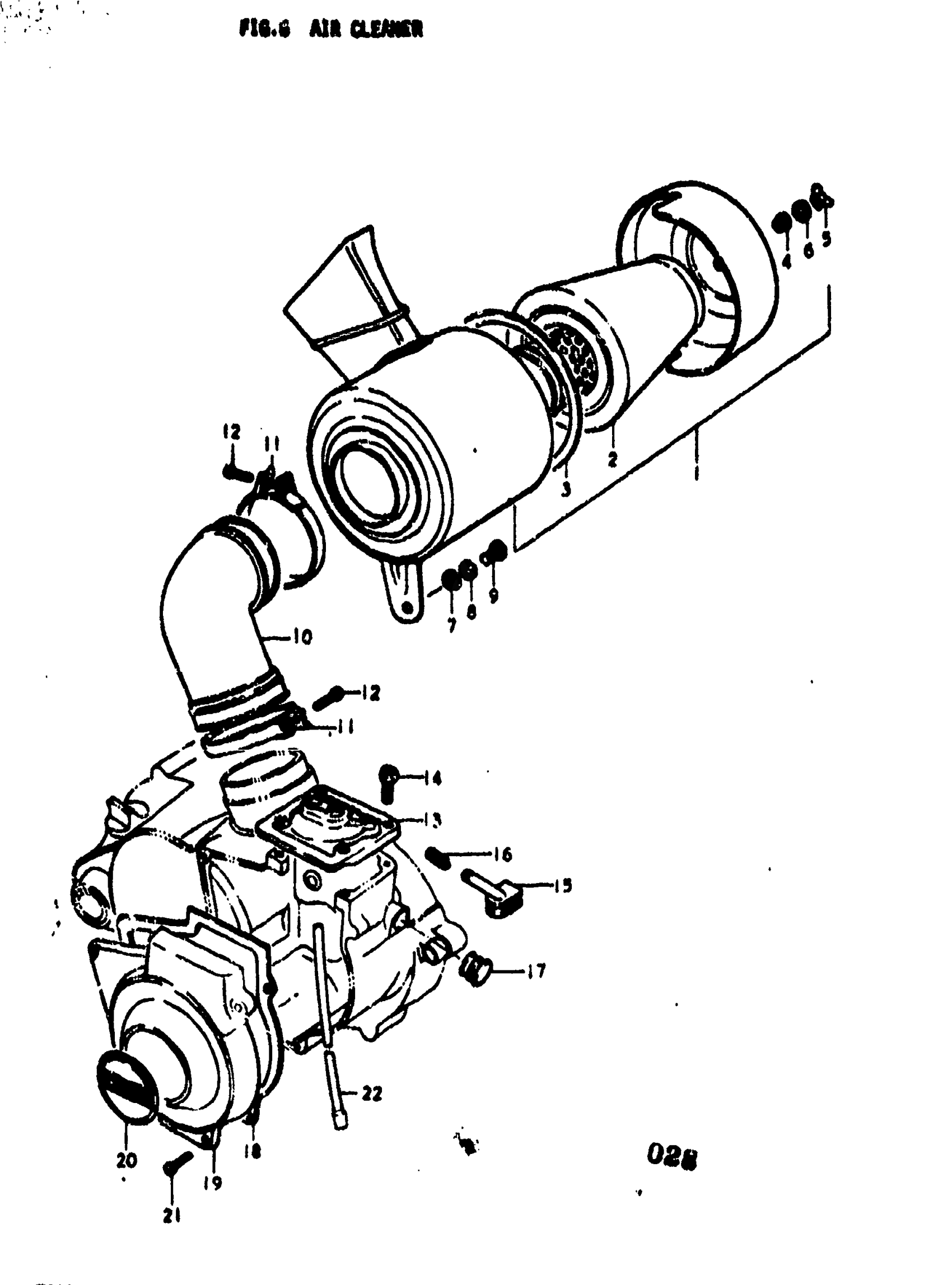

Find the part on the AIR Cleaner diagram for your 1977 Suzuki TC100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC100 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | K,L,M,A This part replaces 13700-25320.

13700-25321

1
Out of stock

1

CLEANER ASSY, AIR | B; Includes Item(s) 2 - 6

13700-25321

1
Out of stock

2

FILTER ASSY

13780-25320

1
Out of stock

3

GASKET

13722-25320

1
Out of stock

4

GASKET | 16x6.5x3

13723-25320

1
Out of stock

5

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

1
Out of stock

6

WASHER

13791-25320

1
Out of stock

7

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

8

2

$2.28

In stock

9

SCREW This part replaces 02112-06168.

02112-06167

2
Out of stock

10

HOSE, AIR INLET | K,L,M

13881-25300

—
Out of stock

10

HOSE, AIR INLET | A,B

13881-25301

1
Out of stock

11

CLAMP, INLET HOSE | K,L,M

09402-00197

—
Out of stock

11

CLAMP | A,B This part replaces 09402-62306.

09402-62208

2
Out of stock

12

SCREW | K,L,M This part replaces 02111-04208.

02112-0420A

2
Out of stock

12

SCREW | A,B This part replaces 03211-04258.

03211-0425B

2
Out of stock

13

COVER, CARBURETOR FOR

11440-25000

1
Out of stock

14

SCREW This part replaces 02112-05168.

02112-05167

4
Out of stock

15

HOSE, OVER FLOW

11910-25000

1
Out of stock

16

SPRING, OVER FLOW HOUSE

09440-06011

—
Out of stock

17

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

1
Out of stock

18

GASKET, CAP

11492-25000

1
Out of stock

19

CAP, CARBURETOR INSPACTION | K,L,M

11383-25300

1
Out of stock

19

CAP, CARBURETOR INSPACTION | A,B

11383-25500

1
Out of stock

20

EMBLEM

68234-25300

1
Out of stock

21

SCREW This part replaces 02112-05168.

02112-05167

3
Out of stock

22

HOSE ASSY AIR V This part replaces 13680-25000.

13680-35000

1
Out of stock
