1977 Suzuki TC100 Piston - Crankshaft Diagram

← All diagrams

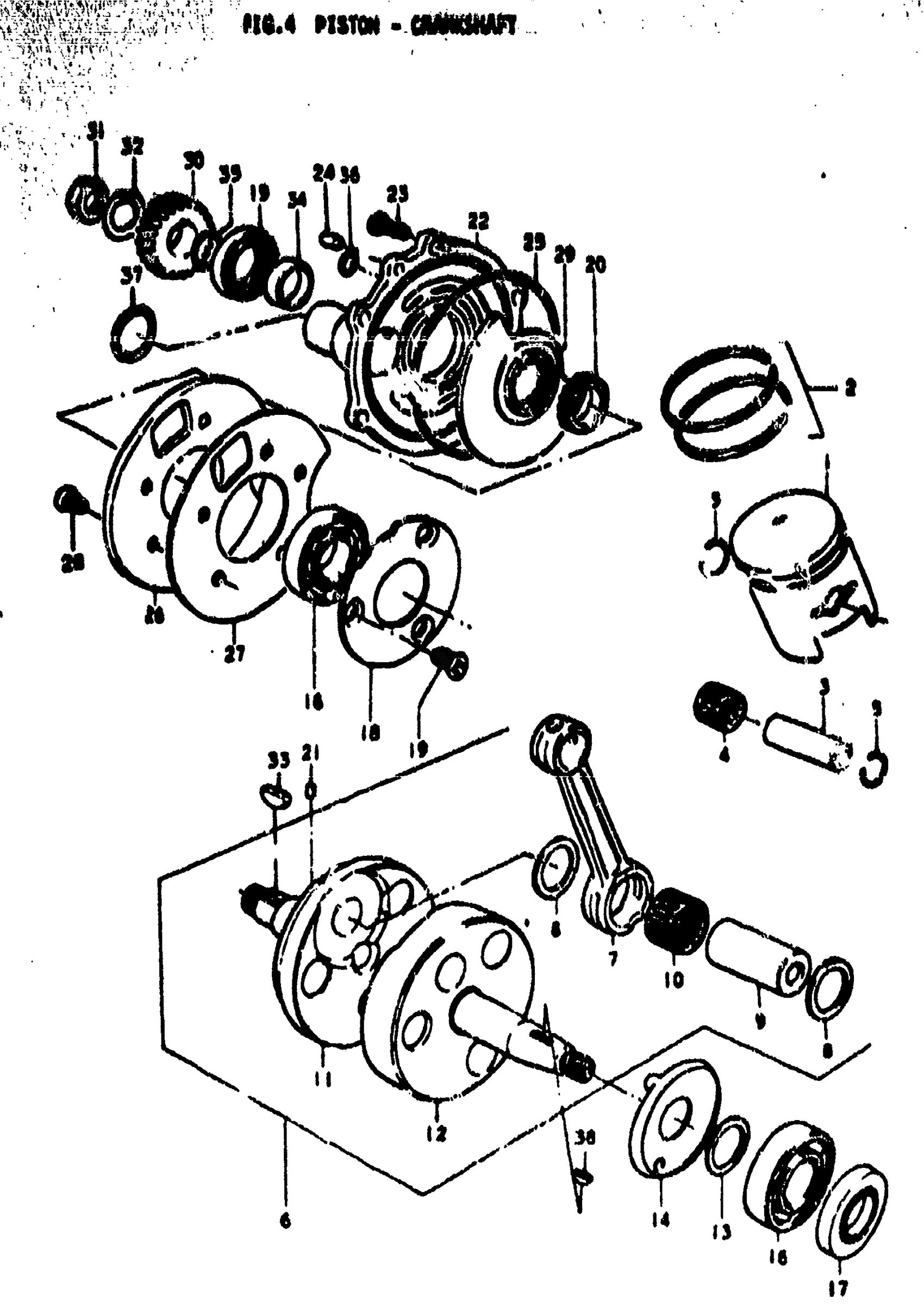

Find the part on the Piston - Crankshaft diagram for your 1977 Suzuki TC100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC100 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (49.0MM) | K,L,M This part replaces 12110-25601.

12110-35623

1
Out of stock

1

PISTON (49.0MM) | A This part replaces 12110-25602.

12110-35623

1
Out of stock

1

PISTON (49.0MM) | B This part replaces 12110-25603.

12110-35623

1
Out of stock

1

PISTON SET | K,L,M; OS:0.5, OPT This part replaces 12110-25761.

12100-35620-050

1
Out of stock

1

PISTON SET | A; OS:0.5, OPT This part replaces 12110-25762.

12100-35620-050

1
Out of stock

1

PISTON SET | N; OS:0.5, OPT This part replaces 12110-25763.

12100-35620-050

1
Out of stock

1

NO DESCRIPTION AVAILABLE | K,L,M; OS:1.5, OPT This part replaces 12110-25771.

12110-35623-100

1
Out of stock

1

NO DESCRIPTION AVAILABLE | A; 08:1.0, OPT This part replaces 12110-25772.

12110-35623-100

1
Out of stock

1

NO DESCRIPTION AVAILABLE | B; 08:1.0, OPT This part replaces 12110-25773.

12110-35623-100

1
Out of stock

2

RING SET, PISTON (OS:0.5) | 0.5, OPT FROM 12100-25850 FROM 12100-25860 This part replaces 12140-36770.

12140-46000-050

1
Out of stock

2

1

$45.40

In stock

3

1

$8.70

In stock

5

SNAP RING

09381-12001

2

$1.52

In stock

6

CRANKSHAFT SET | K,L; TO 12200-25002

12200-25840

—
Out of stock

6

CRANKSHAFT SET | M

12200-25002

—
Out of stock

6

CRANKSHAFT SET | A

12200-25004

—
Out of stock

6

CRANKSHAFT SET | B; Includes Item(s) 7 - 12

12200-25005

1
Out of stock

7

ROD, CONNECTING

12161-25001

1
Out of stock

9

PIN, CRANK

12211-25001

1
Out of stock

10

1

$21.42

In stock

11

CRANKSHAFT, RH | K,L This part replaces 12220-25001.

12221-25002

1
Out of stock

11

CRANKSHAFT, RH | M,A,B

12221-25002

1
Out of stock

12

CRANKSHAFT, LH | M,A

12260-25002

—
Out of stock

12

CRANKSHAFT,RH | M,A

12261-25003

—
Out of stock

12

CRANKSHAFT, LH | A

12261-25004

1
Out of stock

13

SHIM (20X28X0.5) | 20x26x0.5 This part replaces 08221-20285.

09181-20158

1
Out of stock

14

PLATE, OIL GUIDE

12511-25001

1
Out of stock

15

1

$6.34

In stock

16

BEARING, DRIVE SHAFT LH | 26x47x14 This part replaces 09262-20019.

09262-20069

2
Out of stock

17

OIL SEA CRANKSHAFT LH | 20x40x7

09283-20004

1
Out of stock

18

PLATE, CRANKSHAFT BEARTIN RH

12541-25000

1
Out of stock

19

SCREW This part replaces 02122-06128.

02122-06127

3
Out of stock

20

GUIDE, VALVE

12421-05210

1
Out of stock

21

PIN | K,M,B This part replaces 06211-03052.

04221-03059

1
Out of stock

22

NO DESCRIPTION AVAILABLE | K,L; TO 12450-25001 This part replaces 12450-25000.

12450-25002

1
Out of stock

22

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 12450-25001.

12450-25002

1
Out of stock

23

6

$2.22

In stock

24

PIN This part replaces 06211-05103.

04221-05109

2
Out of stock

25

1

$21.17

In stock

26

VALVE SEAT INNE This part replaces 12461-25001.

12461-25002

1
Out of stock

27

GASKET, INNER VALVE SEAT

12471-25001

1
Out of stock

28

SCREW This part replaces 02122-06168.

02122-06167

5
Out of stock

29

PLATE, VALVE

12410-25011

1
Out of stock

30

GEAR, PRIMARY DRIVE | NT:23

21111-25000

1
Out of stock

31

1

$3.70

In stock

32

WASHER, PRIMARY DRIVE GEAR | 14.5x28x0.8

09166-14009

1
Out of stock

33

KEY This part replaces 08341-31049.

09420-04008

1
Out of stock

34

SPACER, PRIMARY DRIVE GEAR | 20x25x9.5

09180-20036

1
Out of stock

36

O RING, OIL INIET

09280-08006

1
Out of stock

37

O RING, CARBURETOR INLET

09280-26002

1
Out of stock

38

KEY

08341-31039

1
Out of stock
