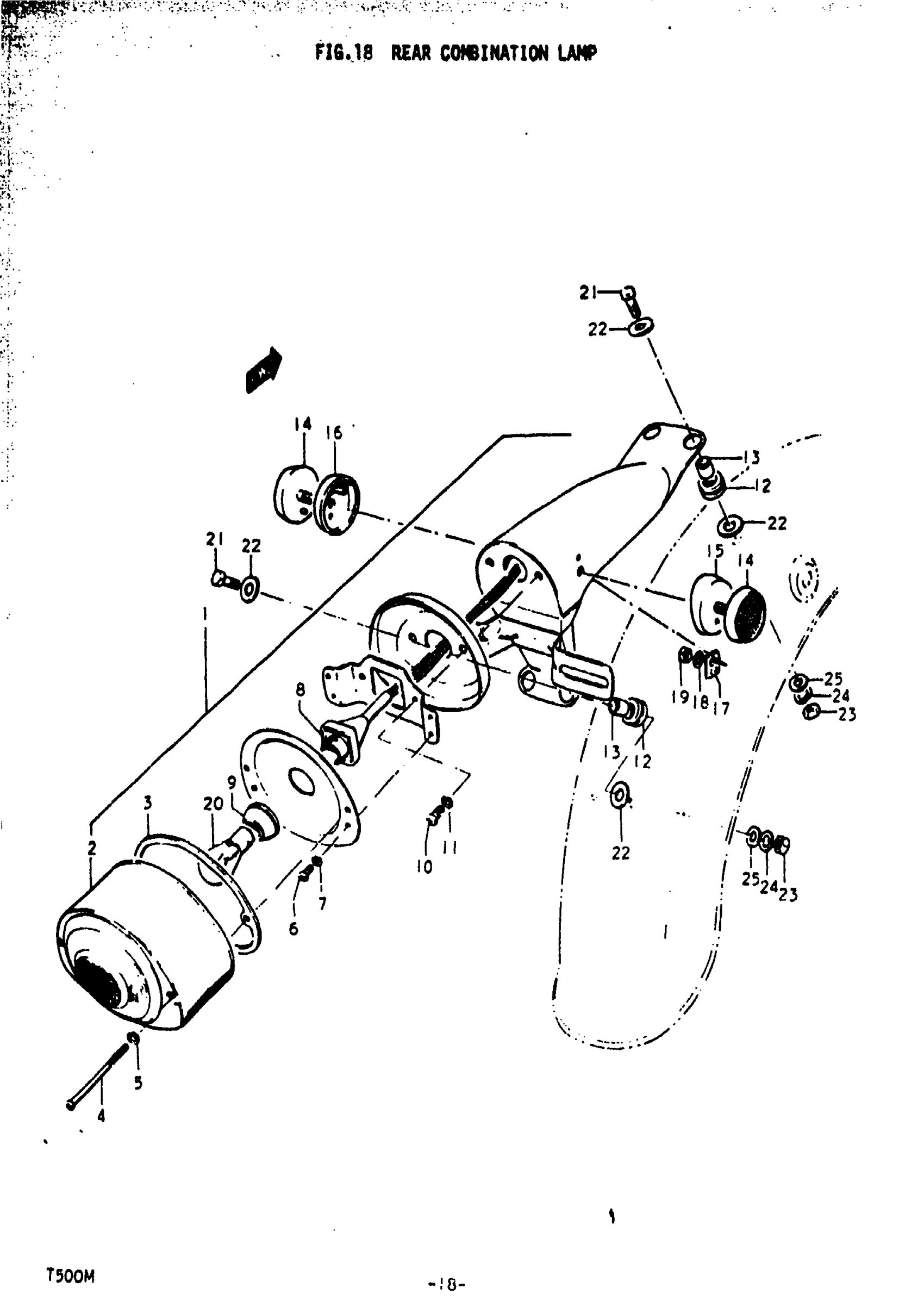

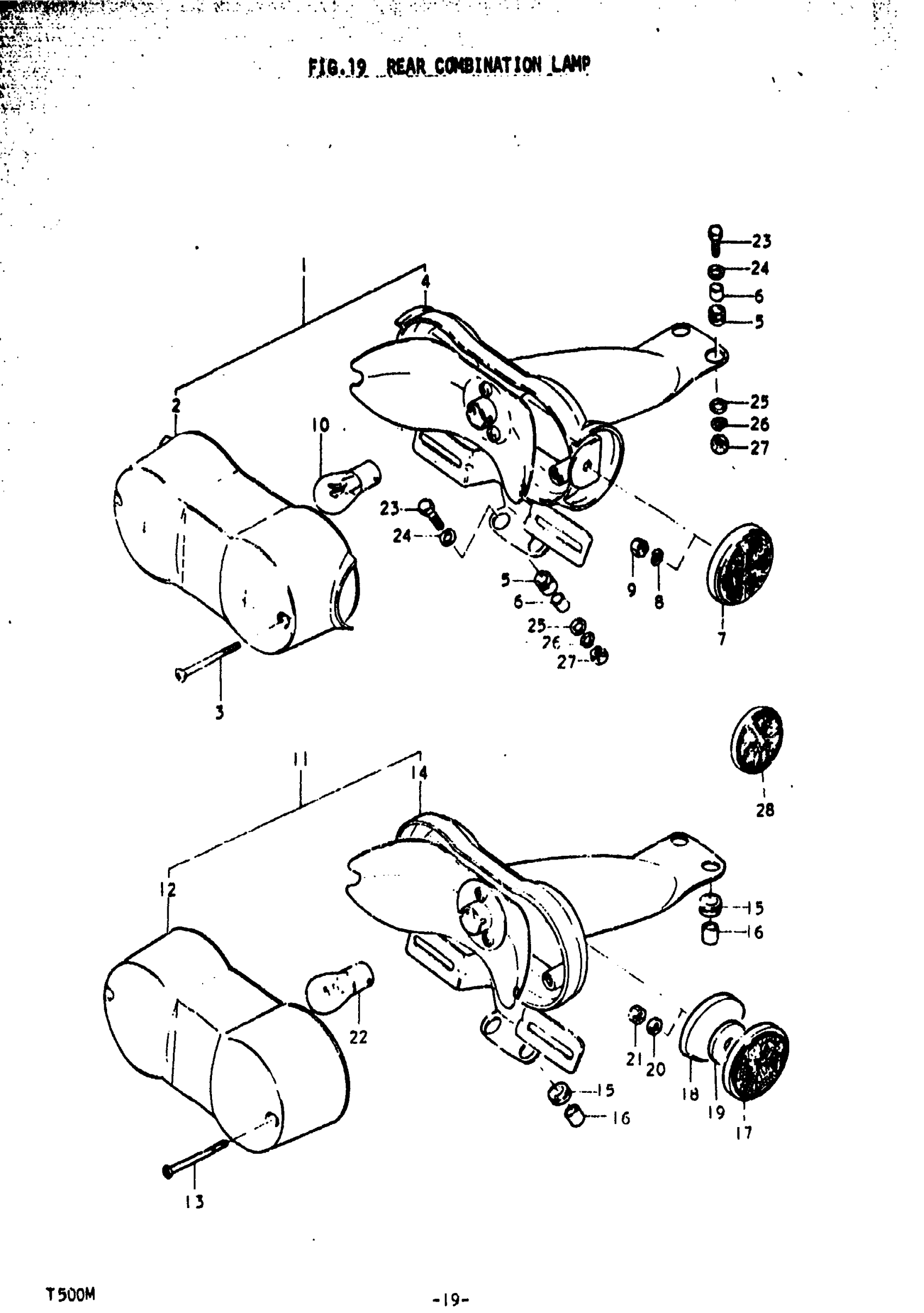

Suzuki T500J (1975) REAR COMBINATION LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | J; Includes Item(s) 2 - 9 This part replaces 35000-15823-999.

35710-15602

Unavailable

2

TAIL LAMP LENS | J This part replaces 35712-27690.

35712-27671

Unavailable

3

SCREW | J This part replaces 02111-04508.

02112-0450A

$1.51

4

HOUSING, LAMP | J

35715-29690

Unavailable

5

CUSHION | J

35765-15010

Unavailable

6

SPACER | J This part replaces 35766-15010.

35766-37110

$5.28

7

REFLEX REFLECTOR, REAR | J

35970-31610

Unavailable

8

LOCK WASHER | J This part replaces 08321-21058.

08321-0105A

$1.84

9

NUT | J This part replaces 08311-11058.

08310-00057

$1.84

10

BULB (12V,23W/8W) | J; 12Y, 52/ACP, US#1034 This part replaces 09471-12002.

09471-12035

$4.49

11

LAMP ASSY, COMBINATION | K,L

35000-18822-999

Unavailable

11

LAMP ASSY, COMBINATION | M; Includes Item(s) 12 - 22

35710-18110

Unavailable

12

TAIL LAMP LENS | K,L,M This part replaces 35712-27691.

35712-27671

Unavailable

13

SCREW 4X55 | K,L This part replaces 02111-04558.

02112-04558

$1.65

13

SCREW | M This part replaces 02111-04207.

02112-0420A

$1.49

14

HOUSING, LAMP | K,L,M

35715-27691

Unavailable

15

CUSHION | K,L,M

35765-15010

Unavailable

16

SPACER | K,L,M This part replaces 35766-15010.

35766-37110

$5.28

17

REFLEX REFLECTOR, REAR | K,L

35970-31610

Unavailable

18

SPACER, REFLECTOR | K,L

35995-18110

Unavailable

19

WASHER (5.5X18X1) | K,L This part replaces 09160-05003.

09160-05045

$1.93

20

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

21

NUT | K,L,M This part replaces 08311-11058.

08310-00057

$1.84

22

BULB | K,L,M; 12V, 23/8W

09471-12033

Unavailable

23

BOLT, GEAR SHIFT ARM | J,K,L,M This part replaces 09100-06039.

01500-0625A

$1.78

24

WASHER (6.5X20X1.6) | J,K,L,M This part replaces 09160-06020.

09160-06066

$1.89

25

WASHER | J,K,L,M This part replaces 08322-21068.

08322-01067

$2.13

26

LOCK WASHER | J,K,L,M This part replaces 08321-21068.

08321-01067

$2.13

27

.NUT | J,K,L,M This part replaces 08311-11068.

08310-00067

$2.13

28

REFLEX REFLECTOR, REAR | M

35970-31610

Unavailable
